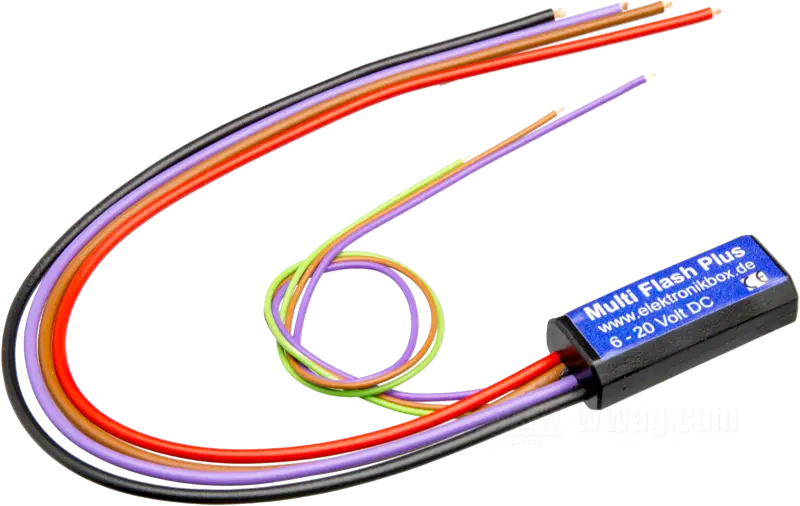

Elektronikbox Multi Flash Plus Flasher Unit

Elektronikbox Multi Flash Plus Flasher Unit

Price and stock:
Item №
11-684
Price incl. VAT
60.31 €
Available
23
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 9.63 € German VAT.
piece
Save to wish list
  • Flasher unit by Elektronikbox
  • W x H x D: 36 x 11 x 15 mm
  • 12 V
  • 2…70 W
  • Germany
  • gross weight: 32 g

The Multi Flasher Plus from Elektronikbox from Rhade in Northern Germany is an electronic flasher unit with auto-cancelling and warning flasher function. The buttons for operation are not switched to ground, but to 12 V. Thus the unit works without any modifications of the original H-D handlebar controls 1992 - begining of the 2000s. It can absolutely be used as a replacement for the not so reasonably priced original flasher modules. Nevertheless, it is no replacement for the 12-pin TSSM modules. Small-format version in the quality you are used to from Elektronikbox. CE and RoHS compliant.

Turn Signal Flasher Units for Harleys

We are often asked which flasher units are suitable for which indicators and which model and yes - there is a large selection and it is not easy to keep an overview.

There are basically two types:

The first type has only two connections. At one connection, 6 or 12 V from the ignition lock goes into the flasher unit and at the second, "chopped" current for the indicators comes out. This flasher unit is placed in the wiring harness before the switch or button. And if a Harley has buttons, such as a 1979 Sportster, the finger must remain on the button while the indicator is flashing. These simple flasher units are available as original (or identical ones) (WW 13-297, 13-435 and -436) or electronic versions (WW 11-089 or 11-658).

The second type of flasher unit has at least six connection wires and is equipped with a microprocessor - regardless of if it's an original Harley part or one from our extensive range of accessories. Two of the six wires are 12 V and ground, two provide the output for the right and left turn signals and via the two remaining wires the microprocessor receives an activation pulse for the right or left indicators. Because a microprocessor can do much more than just chop current for lamps, comfort functions are usually integrated: time-dependent automatic switch-off or continuous flashing, short operation for lane changes, programmable number of flashing cycles.The activation pulses come from buttons on the handlebars, in the original configuration, with the parts from Badlands or with WW 11-684 the buttons send a 12 V pulse to the microprocessor. With most other variants from elektronikbox, Kellermann or motogadget the handlebar buttons connect the activation wire briefly to vehicle ground. However, you may find this out in the instructions or wiring diagrams on our websites before you buy.

The electronic versions of the first flasher unit type and all accessory versions of this second flasher unit type have a pre-programmed flashing frequency, regardless of whether bulbs or LEDs are connected. Original versions or identical to the OEM stuff versions of both types are load-dependent and only cycle correctly with the usual 21 W bulbs.
