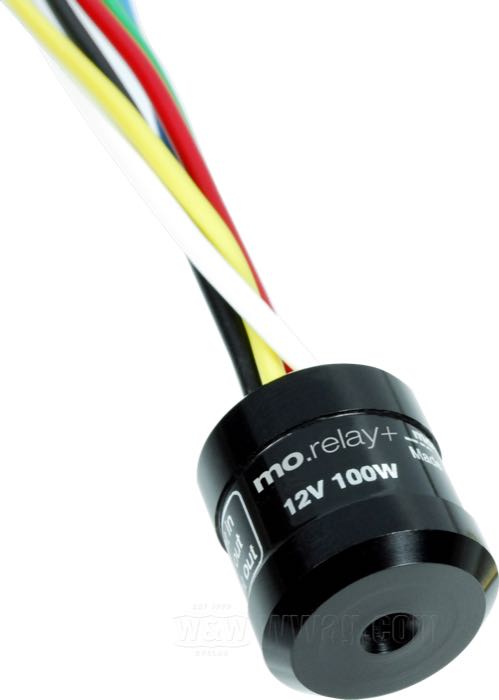

Flasher unit »mo.relay+« by motogadget
The mo.Relay+ (please note the plus!) by motogadget is a combination of a load independent flasher relay and a push button control. Depending on the duration you push the button you can select 3 modes:
- lane change (3x flashing),
- turn (10x flashing) and
- constant flashing.
Additionally you can use a hazard light function when pushing left and right button at the same time. The mo.relay+ is load independent from 1W to 100W and can provide a constant frequency to almost all kind of flash lights (LED, Micro, 10W, 21W). Effective micro electronic technology yields, a lossless, prompt and brighter flash light function. You can also strap it with cable ties to your wiring harness. That makes it perfect for modified and custom bikes with limited space. The electronics are completely waterproof, resistant against vibration and protected against overload.
- aluminum, black anodized
- length: 19 mm
- Ø 19 mm
- 12 V
- min. 1 W, max. 100 W
- with M3 thread for fixation
- Germany
- gross weight: 20 g
Turn Signal Flasher Units for Harleys
We are often asked which flasher units are suitable for which indicators and which model and yes - there is a large selection and it is not easy to keep an overview.
There are basically two types:
The first type has only two connections. At one connection, 6 or 12 V from the ignition lock goes into the flasher unit and at the second, "chopped" current for the indicators comes out. This flasher unit is placed in the wiring harness before the switch or button. And if a Harley has buttons, such as a 1979 Sportster, the finger must remain on the button while the indicator is flashing. These simple flasher units are available as original (or identical ones) (WW 13-297, 13-435 and -436) or electronic versions (WW 11-089 or 11-658.
The second type of flasher unit has at least six connection wires and is equipped with a microprocessor - regardless of if it's an original Harley part or one from our extensive range of accessories. Two of the six wires are 12 V and ground, two provide the output for the right and left turn signals and via the two remaining wires the microprocessor receives an activation pulse for the right or left indicators. Because a microprocessor can do much more than just chop current for lamps, comfort functions are usually integrated: time-dependent automatic switch-off or continuous flashing, short operation for lane changes, programmable number of flashing cycles.The activation pulses come from buttons on the handlebars, in the original configuration, with the parts from Badlands or with WW 11-684 the buttons send a 12 V pulse to the microprocessor. With most other variants from elektronikbox, Kellermann or motogadget the handlebar buttons connect the activation wire briefly to vehicle ground. However, you may find this out in the instructions or wiring diagrams on our websites before you buy.
The electronic versions of the first flasher unit type and all accessory versions of this second flasher unit type have a pre-programmed flashing frequency, regardless of whether bulbs or LEDs are connected. Original versions or identical to the OEM stuff versions of both types are load-dependent and only cycle correctly with the usual 21 W bulbs.
