Insulator for Linkert carburetors as used by the factory on Panheads, however it will fit all Linkert applications using the 4 bolt mounting flange. It features an o-ring seal on both sides giving a superior seal between the intake manifold and the carburetor.

These are the seals many of you have heard about, which will once and for all cure the notorious intake leaks of old manifolds. They are machined from PEEK (polyetheretherketone), a thermoplastic with a melting point of 650°F (343°C). Compared to brass seals this material has superior creep resistance and seal properties and can sustain large stresses over a long service life without significant extrusion.

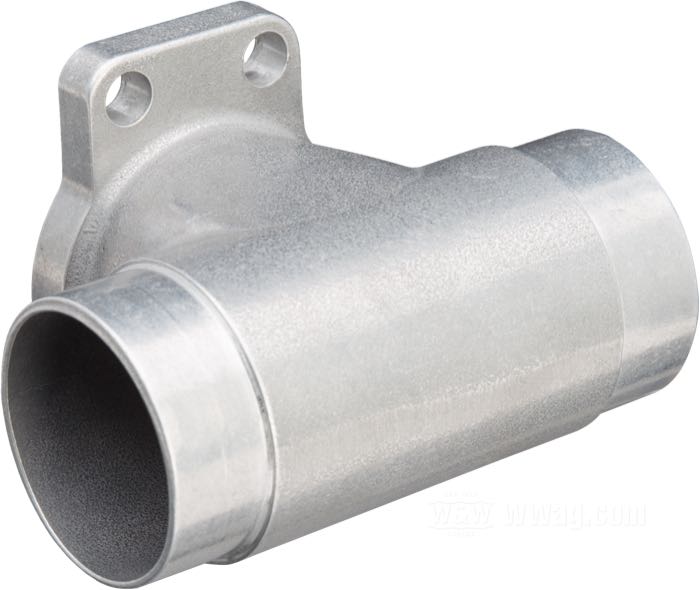

Custom intake manifold which allows direct installation of Bendix and Keihin (butterfly) carburetors on 1940-1954 Knuckleheads und Panheads without adapters or cylinder head modifications. Made extra wide (97 mm), which is excellent when you build an engine with longer cylinders or stroker plates. Requires to be shortened to match the respective situation.

Perfect down to the smallest detail are these reproductions of the legendary Linkert carburetor. They are complete and ready to install with choke and throttle lever, no more downtime due to worn-out originals. Available types:

• M88 with 15/16” venturi for R, W, G, WLA and WLC models
• M51 with 1-1/16” venturi for models U, UL, WL and WLD
• M51L with 1-1/8” venturi for UH and ULH models

A custom part with a long tradition. This smart little device allows for the use of pull type throttle assemblies with Linkert carbs. After installation the throttle disc will be pulled to open and the spring closes it again, when you release the throttle grip. Each kit comes with two springs to meet individual requirements. The weaker spring (Fn≈23 N) should be sufficient for most outside cable applications, the stronger spring (Fn≈58 N) is recommended for internal or very long throttle cables. Works with all M-series Linkert carbs, when equipped with a 1949-1965 type lever, i.e. OEM# 27260-49.
