Knucklehead 1936-1939 Manifolds
Price and stock:
Item №
67-093
Price incl. VAT
349.59 €
Available
3
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 55.82 € German VAT.
- Manifold
- fits Knucklehead 1936-1939
- cast iron, zinc plated
- width: 90.5 mm
- for Linkert M-series carburetors 3-bolt
- replaces Harley-Davidson part number HD 1108-36
- gross weight: 392 g

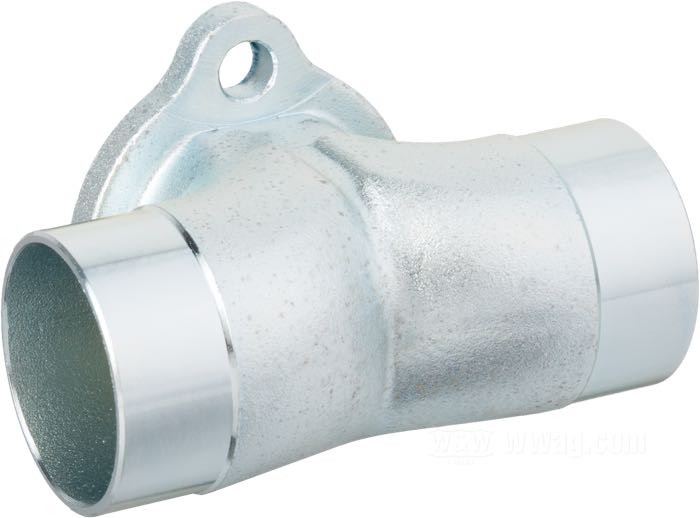

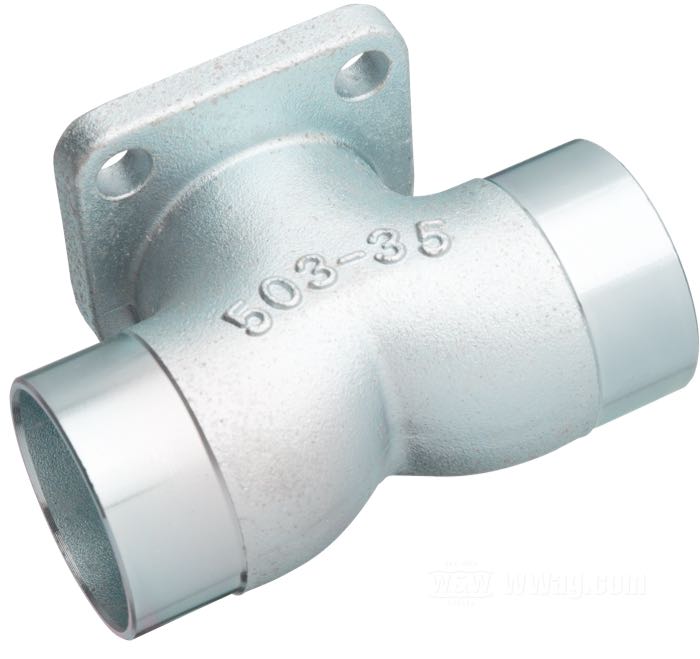

Reproduction of the "baby butt" manifold for early 1936-1939 Knuckleheads with stock small port cylinder heads. Exact specs, with cast-in, raised number.
Accessories:

86-327
Bolt kit »Linkert« by Colony; fits 1930-1939 61",74",80" and 1940 WL, WLD; steel, parkerized; length: 5/8”; for Linkert M-series carburetors; for Schebler carburetors; thread: 5/16”-18; hex head with slot; replaces OEM HD 1123-30; USA; gross weight: 36 g

57-552
Gasket by James Gaskets; for Butterfly carburetor / Manifold; for Schebler DLX and 1-1/4” Linkert carburetors and manifolds; fits IOE 74” 1921-1923, all IOE and Sidevalves 1924-1958, Knucklehead 1936-1939; paper; Ø 40 mm; replaces OEM HD 27410-39, 1121-21, and 1121-39; gross weight: 1 g

Manifold Packing Nuts - for 74”/80” Flatheads 1930-1948, WLD 1940-1946 and 61” Knucklehead 1936-1939
See also:

Bates Throttle Conversion Kit for Linkert
A custom part with a long tradition. This smart little device allows for the use of pull type throttle assemblies with Linkert carbs. After installation the throttle disc will be pulled to open and the spring closes it again, when you release the throttle grip. Each kit comes with two springs to meet individual requirements. The weaker spring (Fn≈23 N) should be sufficient for most outside cable applications, the stronger spring (Fn≈58 N) is recommended for internal or very long throttle cables. Works with all M-series Linkert carbs, when equipped with a 1949-1965 type lever, i.e. OEM# 27260-49.

PEEK Super Seal Rings for Linkert Manifolds
These are the seals many of you have heard about, which will once and for all cure the notorious intake leaks of old manifolds. They are machined from PEEK (polyetheretherketone), a thermoplastic with a melting point of 650°F (343°C). Compared to brass seals this material has superior creep resistance and seal properties and can sustain large stresses over a long service life without significant extrusion.
