Wheels
>
Wheel Hubs and Bearings
>
Wheel Hubs OEM Replacement
>
Disc Brake Wheel Hubs
>
Wide Hubs for Models with 3/4” Wheel Axle
>
Wide Dual Flange Hub 1973-99-Type (Front or Rear)

Wide Dual Flange Hub 1973-99-Type (Front or Rear)

Select variant:
26-421
chrome-plated
26-593
black, painted
Price and stock:
Item №
26-421
net price
$253.10
Available
14
Ready for immediate delivery from our Würzburg, Germany warehouse
* Tax free shipping.
piece
Save to wish list
Description
Facts
Good to know

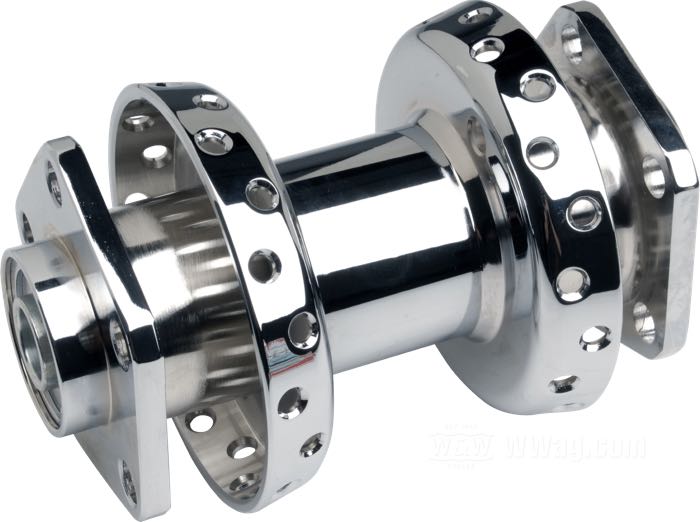

  • Wheel hub »Wide«
  • fits FL/FLH 1973–1981, FX, FXE, FXEF, FXWG 1973-E1982
  • steel, chrome-plated
  • Ø centering collar: 50 mm
  • dual flange 3/8” and 7/16" holes
  • matching axle Ø: 3/4 ”
  • position: front and rear
  • with all internal parts
  • replaces Harley-Davidson part number HD 43540-73A, 43457-79, 40952-82, and 43663-80A
  • gross weight: 3.76 kg

Wide Hub “→1999”-Type

This hub is stock replacement for FL 1973–1981 and FX 1973-E1982, however, it is also perfectly suited for cast wheel to spoke wheel conversions. May be used on later models thru 1999 with proper spacers (front only in Wide Glide forks). For front wheel installation we recommend our flange hole reducers.

When installing wheels and hubs it is important to check the position in the fork or frame/swingarm and to align brake rotors, calipers, sprocket/pulley accordingly. For this purpose we offer a range of bushings and spacers.

Spare parts:

26-510

26-510

Tapered roller bearing; for Wheel hub; fits models 1973-1999, ; also used: Big Twin swingarms 1958-1986; steel; tolerance class: RBEC 1; ID x OD: 19.1 x 45.3 mm, 16.6 mm thick ; replaces OEM HD 9052; gross weight: 130 g
more …
Replacement Parts for Wide Hubs 1973-1999

Replacement Parts for Wide Hubs 1973-1999

more …

Accessories:

Bates Reducer Bushings for Mounting Holes on Wheel Hub Flanges

Bates Reducer Bushings for Mounting Holes on Wheel Hub Flanges

These bushings come in handy when attaching front brake rotors to rear wheel hubs with 3/8” and 7/16” flange holes. They reduce the ID to 5/16” or 3/8” so your rotor bolts are well centered.
more …
Bates Brake Rotor Shims

Bates Brake Rotor Shims

Use one or several of these shims to establish the correct position or alignment.
more …
Bates Sprocket and Pulley Shims

Bates Sprocket and Pulley Shims

Use one or several of these shims to establish the correct position or alignment.
more …
HPU Bifunctional Offset Spacers / Center Extenders for Rear Sprockets and Pulleys

HPU Bifunctional Offset Spacers / Center Extenders for Rear Sprockets and Pulleys

Large selection of spacers to achieve the required offset in most any situation.
more …
CPV Offset Spacers for Brake Rotors

CPV Offset Spacers for Brake Rotors

Selection of spacers for Evolution and Twin Cam models to achieve the required offset in most any situation.
more …
Brake Rotor Shims

Brake Rotor Shims

Use one or several of these shims to establish the correct position or alignment.
more …
Bates Wheel Spacers - for 3/4” Axles

Bates Wheel Spacers - for 3/4” Axles

more …
Offset Spacers for Rear Sprockets and Pulleys

Offset Spacers for Rear Sprockets and Pulleys

Use to re-establish the correct alignment.
more …

See also:

Bates Reducer Bushings 19→17 mm

Bates Reducer Bushings 19→17 mm

When working with a 17 mm wheel axle in a 19 mm environment these reducer bushings are very useful. Can be inserted in wheel bearings, Springer fork rockers, chain tensioners, etc.
more …
