Wide Rear Hub 2000-07-Type

Wide Rear Hub 2000-07-Type

Price and stock:
Item №
26-414
net price
$231.23
Available
11
Ready for immediate delivery from our Würzburg, Germany warehouse
* Tax free shipping.
piece
Save to wish list
Description
Facts

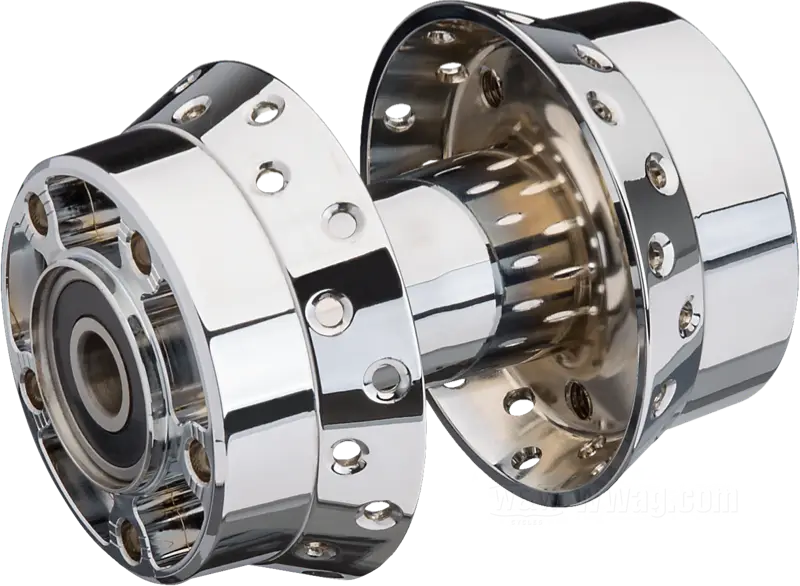

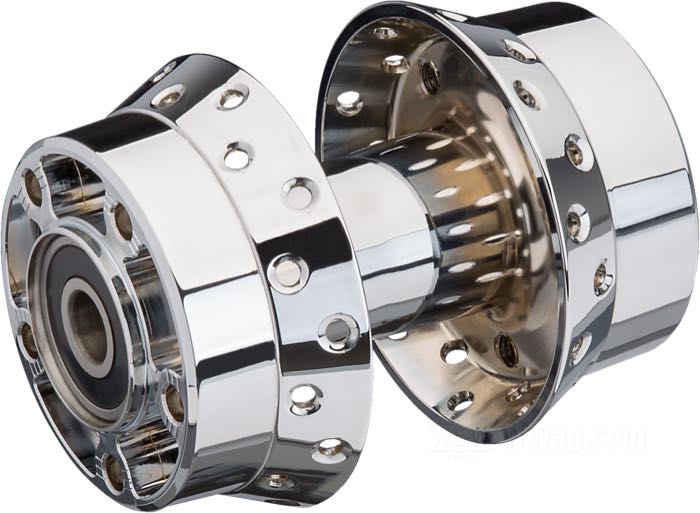

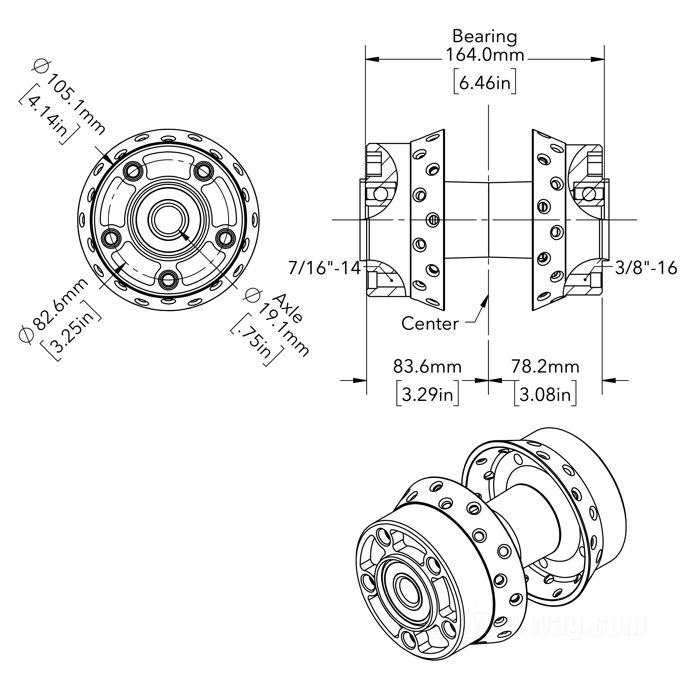

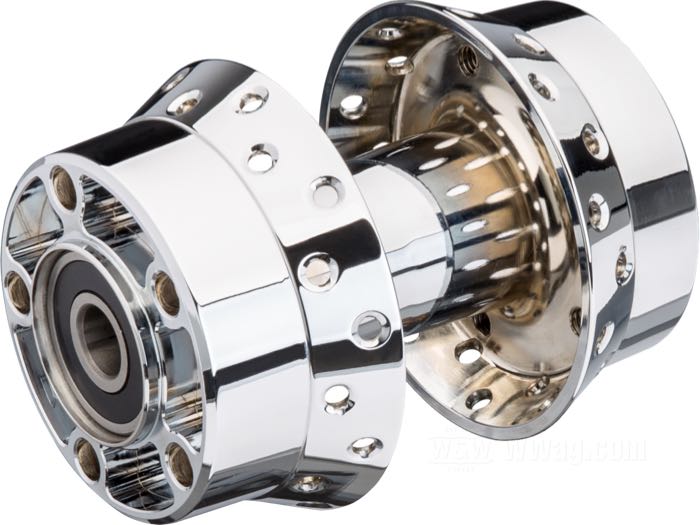

  • Rear hub »Wide«
  • fits Touring 2000-2001, Softail 2000-2007, Dyna 2000-2005, Sportster 2000-2004
  • aluminum, chrome-plated
  • Ø centering collar: 56 mm
  • dual flange 3/8” and 7/16" holes
  • matching axle Ø: 3/4 ”
  • position: rear
  • with all internal parts
  • replaces Harley-Davidson part number HD 40976-00
  • gross weight: 2.3 kg

When installing wheels and hubs it is important to check the position in the fork or frame/swingarm and to align brake rotors, calipers, sprocket/pulley accordingly. For this purpose we offer a range of bushings and spacers.

Spare parts:

26-521

26-521

Ball bearing; for Wheel hub; fits Touring rear: 2000-2001, Softail front: all 2000-2006 + FLSTSC 2007 + FLSTSB 2009-2011, Softail rear: 2000-2007, Dyna front: 2000-2003, Dyna rear: 2000-2005, Sportster front: 2000-2007, Sportster rear: 2000-2004; steel; tolerance class: ABEC 1; ID x OD: 19.1 x 52 mm; 21 mm thick; replaces OEM HD 9267; gross weight: 200 g
more …

Accessories:

28-075

28-075

Shim by Bates; for Brake rotor; fits models 2000→; stainless steel; Ø centering collar: 56 mm; outer Ø: 103 mm; offset: 1 mm; max. Ø of mounting bolts: 3/8”; Germany; gross weight: 43 g
more …
27-968

27-968

Shim by Bates; for Rear sprocket / Pulley; stainless steel; Ø centering collar: 56 mm; outer Ø: 103 mm; offset: 1 mm; max. Ø of mounting bolts: 7/16"; Germany; gross weight: 42 g
more …
27-966

27-966

Shim by Bates; for Rear sprocket / Pulley; stainless steel; Ø centering collar: 56 mm; outer Ø: 103 mm; offset: 2 mm; max. Ø of mounting bolts: 7/16"; Germany; gross weight: 81 g
more …
Bates Reducer Bushings for Mounting Holes on Wheel Hub Flanges

Bates Reducer Bushings for Mounting Holes on Wheel Hub Flanges

These bushings come in handy when attaching front brake rotors to rear wheel hubs with 3/8” and 7/16” flange holes. They reduce the ID to 5/16” or 3/8” so your rotor bolts are well centered.
more …
CPV Offset Spacers for Brake Rotors - for Models 2000→

CPV Offset Spacers for Brake Rotors - for Models 2000→

more …
Bates Wheel Spacers - for 3/4” Axles

Bates Wheel Spacers - for 3/4” Axles

more …
Offset Spacers for Rear Sprockets and Pulleys

Offset Spacers for Rear Sprockets and Pulleys

Use to re-establish the correct alignment.
more …

See also:

Bates Reducer Bushings 19→17 mm

Bates Reducer Bushings 19→17 mm

When working with a 17 mm wheel axle in a 19 mm environment these reducer bushings are very useful. Can be inserted in wheel bearings, Springer fork rockers, chain tensioners, etc.
more …
