Replacement Parts for Wide Hubs 1973-1999

Snap ring; for Dust shield; fits all models 1973-1983; spring steel; replaces OEM HD 11027

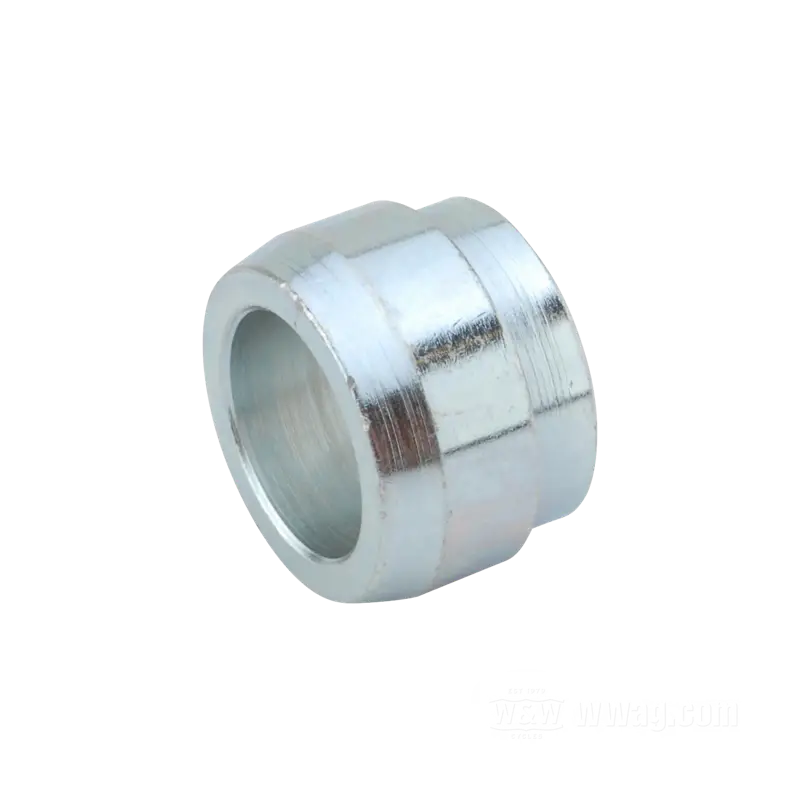

Spacer; for Oil seal; fits all models 1973-1983; steel, zinc plated; ID x OD: 0.75 x 1.125”, 0.75” thick; replaces OEM HD 41196-73

Dust shield; fits all models 1973-1983; sheet steel, zinc plated; replaces OEM HD 43559-73

Spacer; for Oil seal; for cast wheel; fits FL(H) 1983-1984; steel, zinc plated; ID x OD: 0.75 x 1.125”, 0.75” thick; replaces OEM HD 41196-83

Spacer; for Laced wheel; fits FXWG 1983; right side; steel, zinc plated; ID x OD: 0.757 x 1.105”, 0.5” thick; replaces OEM HD 41607-83

Snap ring; for hub cover; fits FLST 1986-1999; spring steel; front right; replaces OEM HD 11175; USA

Spacer; for Oil seal; fits FLSTC models 1987-1999, FLSTF models 1993-1999 with single front brake 1984-1999, Big Twins 1984-1999 and Sportster 1979-1999 rear; steel, zinc plated; ID x OD: 0.75 x 1.125”, 0.75” thick; replaces OEM HD 43654-86A

Spacer; for Oil seal; fits FXWG, FXSTC, FXDWG, FXSTS models with single front brake 1984-1999; steel, zinc plated; ID x OD: 0.75 x 1.125”, 1.25” thick; replaces OEM HD 40910-84B

Tapered roller bearing; for Wheel hub; fits models 1973-1999, ; also used: Big Twin swingarms 1958-1986; steel; tolerance class: RBEC 1; ID x OD: 19.1 x 45.3 mm, 16.6 mm thick ; replaces OEM HD 9052; gross weight: 130 g

Oil seal by James Gaskets; for Axle spacer / Wheel hub / Swingarm; fits FL cast wheel front and rear 1973-1982, FX and Sportster front 1973-1982, Sportster 1979-1983 rear, FLT 1982-1984 and FXRT 1984, left/ also 4-speed Big Twin swingarms from 1973-1986; rubber / steel; ID x OD: 28.6 x 45.4 mm; 8 mm thick; replaces OEM HD 47519-72; gross weight: 10 g

Oil seal by James Gaskets; for Wheel hub; fits all models 1983-1999; rubber / steel; ID x OD: 28.6 x 45.4 mm, 10.16 mm thick ; replaces OEM HD 47519-83A; gross weight: 20 g
