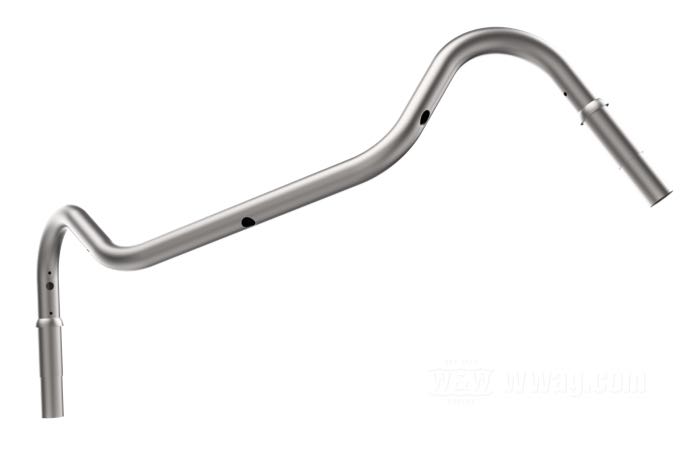

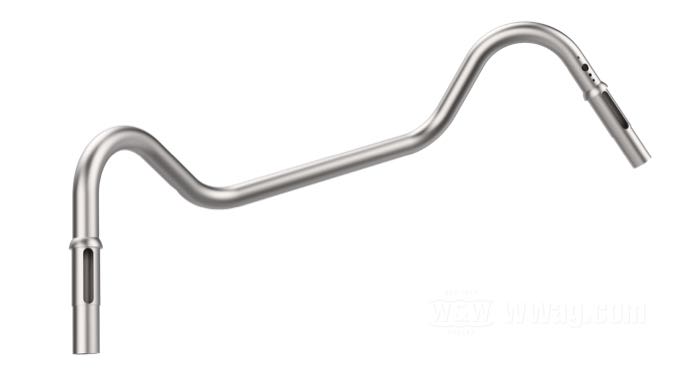

Faber Cycle Flanders #11X-HD Handlebars
wire routing: through handlebar
Price and stock:
Item №
20-876
Price incl. VAT
1,023.44 €
Available
1
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 163.41 € German VAT.
- Handlebar »Flanders #11X-HD« by Faber Cycle
- for 1935-1948 grip spirals
- steel, bare
- Ø 1”
- thread: 57/64”-24
- wire routing: through handlebar
- wall thickness: 2 mm
- USA
- gross weight: 1.3 kg
A top notch Old School accessory. Beautiful reproductions of the legendary handlebars that were available as aftermarket accessories during the 1940’s and 50’s by the Flanders company. Flanders doesn’t make them anymore so the talented US-manufacturer Tom Faber filled the gap. Combined with Stelling & Hellings risers and upper fork clamp (available separately) they allow for a more upright seating postion which many riders prefer for improved comfort and control. However, they work with most handlebar risers and clamps.
The names of the handlebars correspond to the numbers or designations in the old Flanders catalogs.
The #11X for Harley-Davidson motorcycles is the racing star among Flanders handlebars for 1" risers. Less than 70 cm wide and with deeply cranked ends, it stands out from the other Flanders handlebars in our range.

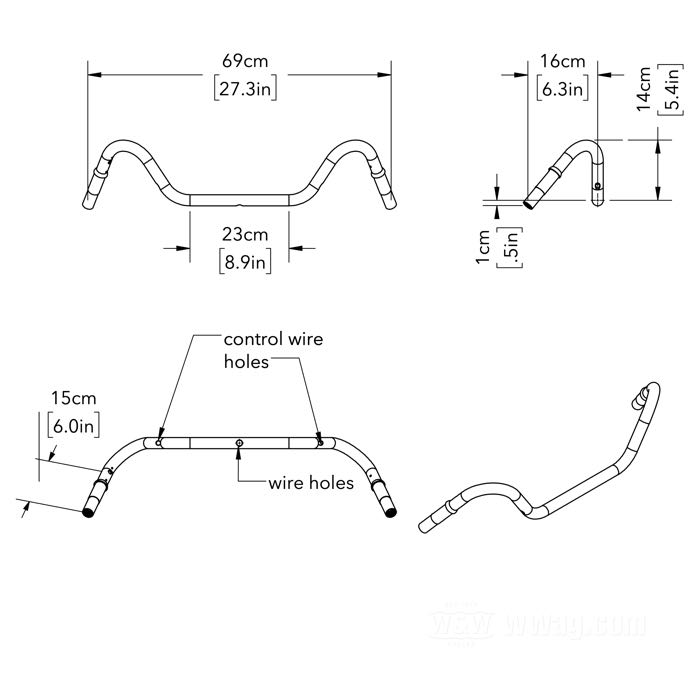

Please take a look at our drawing with dimensions for comparison. Please note: This is not a mass-produced product manufactured on CNC machines. Hand-bent handlebars are subject to certain tolerances in their dimensions.
Just as with the original Flanders bars you can use 1935-1948 spirals and grips but these have to be shortened to work with Flanders Style handlebars.
Accessories:
Control Wires and Coils for Models 1932-1948
Stock replacement cable and outer coils for throttle and ignition control. The outer coils come with ferrule.
Cannonball Flanders Style Dog Bone Risers
Most period Bobbers and many stock bikes had them: Flanders handlebars with matched risers and fork clamps. When they were introduced in the 1940’s the cool look and the resulting superb riding position made them an instant success. These risers (product design by Mark van der Kwaak / dbbp) are great reproductions of the legendary originals and show the manufacturer’s care and attention to details, underlined by the hex head clamping bolts. The offset clamps are sandwiched between Delrin rings to absorb vibration and still firmly hold the handlebars.
Faber Cycle Stelling & Hellings Risers
In the heyday of Springer forks, i.e. the 1940’s and 50’s, the inward tilted risers and matching clamps made by Stelling & Hellings were the hot ticket. Just the right parts to stand out in a crowd of Knuckleheads and Flatheads. Today original ones are nearly impossible to find so these perfect reproductions really fill a gap for dressed-up classics. Meticulously made down to the details and ready to bolt on.
Toggle Switches →1973
Handlebar mount switches that require routing of wires inside the handlebars.
Button Switches 1926-1971
Stock replacement button switches for horn and starter activation on Harley-Davidson motorcycle 1926-1971. The selection includes the early, low profile single wire button and the higher 1953→ double wire version. This later version provides a separate ground wire, whereas the early version relies on ground via the housing.
Grip Assemblies for Models 1935-1948
Complete kit of throttle and spark controls for all springer fork handlebars 1935-1948. Includes all parts for an accurate restoration of internal and external components.
CMS Grip Sets
Back in the Forties and Fifties Chicago Motorcycle Supply (CMS) was one of the leading manufacturers of aftermarket accessories for American motorcycles. These hard-plastic grip sets are still made on the original moulds and make for that perfect "period piece".
