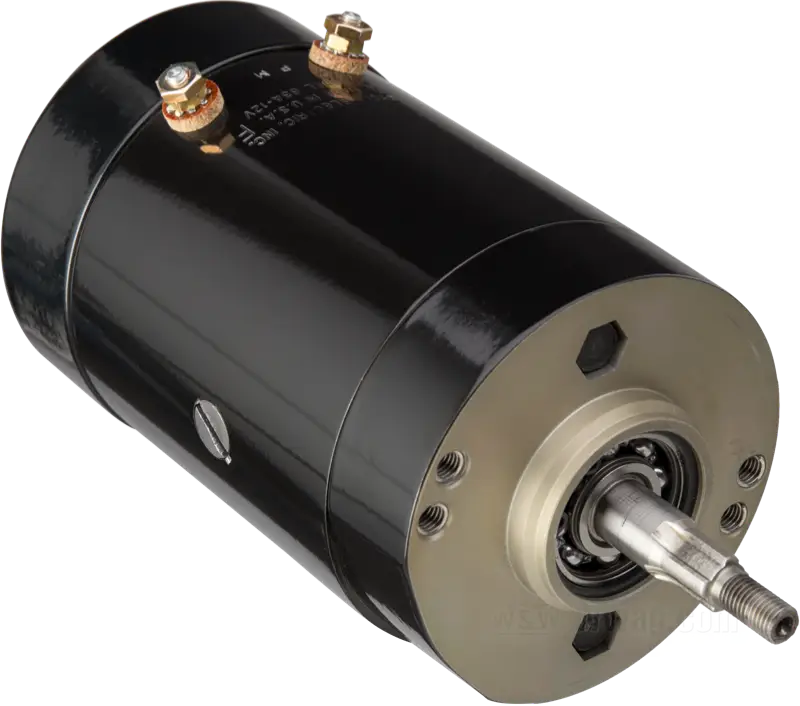

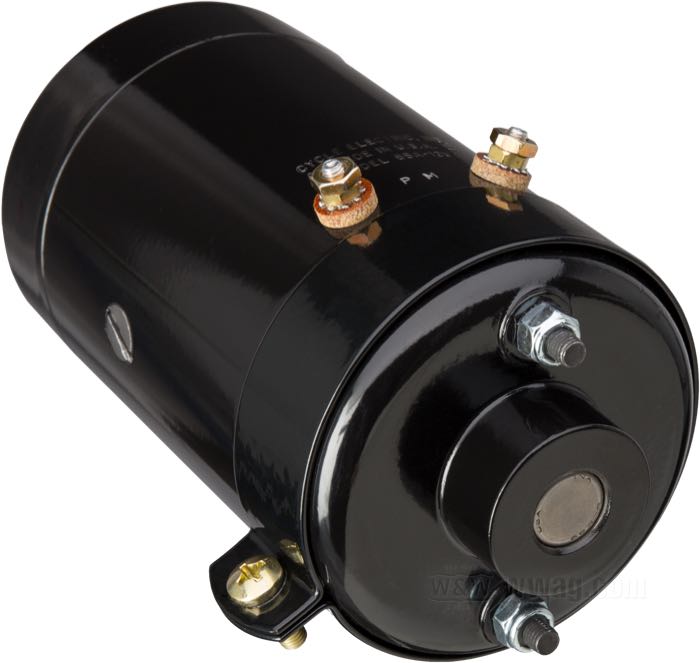

Cycle Electric Generators 65A Type 12V

- Generator »65A Type« by Cycle Electric
- black
- thread: 1/4”-24
- 12 V
- replaces Harley-Davidson part number HD 29975-65A
- USA
- gross weight: 4.73 kg
Our reproductions of the original Harley-Davidson generators from 1958→ feature unparalleled craftsmanship. In these Harley-Davidson generator replicas, for example, the connections between the armature winding and the commutator are spot-welded instead of soldered, which significantly increases durability. The insulation of the armature fields is made from hard maple wood rather than paper, further enhancing quality and longevity. You can rely 100% on these Harley generators, no matter how far the road takes you. They are perfect for restoring Harley-Davidson vintage bikes, custom bikes, classic motorcycles, and Harley classic bikes.
Available as stock replacement for 58 and 65A type generators used on 1958→ models or as a conversion for 1932 - 1957 models, where the earlier 32E 3-brush generator was factory equipment.
This conversion generator has, contrary to the stock 1958→ 58 and 65A type generators, ¼"-24 mounting bolts just like the stock 32E generator and can be used on 1932-1957 models without modification.
Both versions utilize the later style 1958→ armature, which works on 1932-1957 and 1958→ cases. The later style 1958→ (eg WW 13-710) sprocket must be used. The →1957 armature sprocket can NOT be used. Likewise, oil deflector plates and regulators 1958→ must be used. The engine drive gears can remain unchanged.
Polarizing Generators
New or refurbished generators should be polarized to correctly establish field magnetism. First you connect the generator correctly to the regulator and the latter to the battery. Then you short battery and armature connectors on your regulator just for a snatch. Alternatively you jumper the positive pole on your battery and the generator A terminal. Don't worry: The short spark is harmless.
Spare parts:
Accessories:
85-967
Generator Gears 32E
Generator Gears 58/65A
James Gaskets for 58 and 65A Type Generator 6V and 12V
Generator Oil Deflectors 58/65A
Cycle Electric Generator Gears 58/65A
Screw Kits for 58 and 65A Generators
Generator End Covers
