Yuasa AGM 4Ah Batteries

Yuasa AGM 4Ah Batteries

Price and stock:
Item №
11-863
Price incl. VAT
84.81 €
Available
5
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 13.54 € German VAT.
piece
Save to wish list

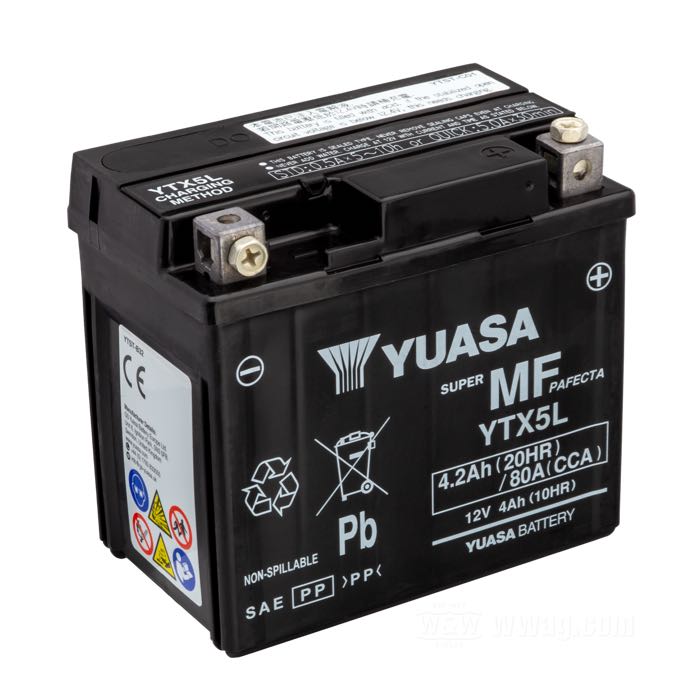

  • Battery »AGM YTX5L WC« by Yuasa
  • fits models without electric starter
  • L x H x D: 104 x 109 x 70 mm
  • net weight: 1.8 kg
  • 12 V
  • 4 Ah
  • energy rating: 48 Wh
  • cold cranking current (EN): 80 A
  • pole connections: M5 (screws included)
  • gross weight: 1.89 kg

With a base area of 104 x 70 mm and the option of installing them at an angle, these batteries are ideal for installation in a horseshoe oil tank or for space-saving custom projects. The low capacity and CCA below 100 do not allow for electric starts, but that's not part of the job in a classic Harley anyway. For kicking and as a buffer at low speeds (in city traffic, at traffic lights), the power is more than sufficient.

The Yuasa YTX series AGM batteries are delivered “wet-charged”: filled and charged at the factory, the acid is bound in special glass fiber mats. So no fiddling with acid packs and completely leak-proof. Just ready to go.

The YTX5L with 4 Ah capacity is more suitable for kickstart bikes with a few extras: auxiliary headlights, loud and power-guzzling horns, that kind of thing.

Yuasa YTX Batteries

Like all lead-acid batteries, the YUASA YTX series contains acid. However, the acid is bound in glass fiber mats between the lead plates. This makes the battery spill-proof and maintenance-free. Should the battery start to gas, for example because the regulator is charging too heavily, a built-in safety valve ensures that it does not burst. The formation of lead sulphate during long periods of inactivity is largely prevented by special additives. Calcium mixing in the plates additionally reduces the self-discharge.

Because of the small capacity of 3 or 4 Ah and because not much electricity is consumed when kicking, the batteries are recharged very quickly. Therefore, we recommend using controllers that adhere to the printed long-term charging currents of less than 0.5 A and the maximum voltage of 14.7 V. We have measured and found in extensive test series that our Cycle Electric regulators most reliably comply with the limit values. BUT: you have to drive with your lights on. The power consumption of e.g. an H4 bulb helps to keep the voltage constant. The regulator needs this ~5A consumption, otherwise the voltage rises to over 15 V even with the high-quality CE regulators.

If you do need to recharge, the charger should also adhere to these limits. Modern chargers with microcontrollers, such as those from Optimate, have a special AGM charging mode.

Accessories:

14-596

14-596

Ring terminal; brass, nickel-plated; for wires: 16 mm² (AWG 4); inner Ø: 5.3 mm; gross weight: 4 g
more …
13-694

13-694

Generator »Low Voltage« by Cycle Electric; with End Bell regulator; cast aluminum / steel, black, painted; thread: 5/16”-24; 12 V; USA; gross weight: 5.08 kg
more …
13-597

13-597

Regulator »Low Voltage« by Cycle Electric; for 65A Type generators; fits Big Twin 1965-69 and Sportster 1965-77; aluminum, black; 12 V; USA; gross weight: 520 g
more …
13-590

13-590

Regulator/Rectifier by Cycle Electric; fits Big Twin 1981-1988; Low Voltage; aluminum, black, anodised; USA; gross weight: 540 g
more …
13-606

13-606

Regulator »End Bell Low Voltage« by Cycle Electric; for 65A Type generators; fits Big Twin 1958-69 and Sportster 1965-77; 13.8 V Charging voltage; cast aluminum, black, polished fins; 12 V; USA; gross weight: 750 g
more …
13-616

13-616

Regulator/Rectifier by Cycle Electric; fits Big Twin 1981-1988; aluminum, black; USA; gross weight: 530 g
more …
14-491

14-491

Ring terminal; brass, nickel-plated, #10; for wires: ~ 1.5 - 2.5 mm² (AWG 16-14); inner Ø: 4.8 mm; gross weight: 1 g
more …
13-891

13-891

Generator »LeBeef Edition Low Voltage« by Cycle Electric; with End Bell regulator; 13.8 V Charging voltage; steel / cast aluminum, black, painted / polished; thread: 5/16”-24; 12 V; USA; gross weight: 5.04 kg
more …
13-895

13-895

Regulator »End Bell LeBeef Edition Low Voltage« by Cycle Electric; for 65A Type generators; fits Big Twin 1958-69 and Sportster 1965-77; 13.8 V Charging voltage; cast aluminum, polished; 12 V; USA; gross weight: 660 g
more …
Bates BattBoy 65

Bates BattBoy 65

Modern gel or Li-Ion batteries offer a significant advantage - they are leak-proof. Those who ever experienced spilled acid in the battery tray, on the frame, on the swingarm, etc. will highly appreciate this fact. On the other hand, owners of classic bikes do like the looks of their original energy store and the corresponding cover and mounts. With a Bates BattBoy Battery Box you can have the best of both worlds, because what looks like a period 32 amp 12V accumulator on the outside can house a safe, modern battery within. Just hook it with two eyelet wires to the terminals on the bottom of the lid and you are all set. When using suitable Antigravity versions you even have storage room left for a few small spare parts, safety vest, emergency beer, etc. Ain't this one heck of a cool solution for an old problem?
more …
OptiMATE 4 Dual Programm Charger and Optimiser

OptiMATE 4 Dual Programm Charger and Optimiser

Compact diagnostic charger and tester for 12V motorcycle lead acid batteries, incl. the maintenance-free gel-type batteries. ...
more …
Trident Cycle Battery Hold-Down Rods Big Twin 1936-1964

Trident Cycle Battery Hold-Down Rods Big Twin 1936-1964

Very neat solution to the old problem of holding the battery in place. Designed for Yuasa YTX5L , but can also be used for the shorter Yuasa YTX4L batteries with the spacers supplied. Installation is relatively straightforward. Simply insert the side brackets into the slots of the battery tray designed for OEM style Horseshoe oil tank and secure the battery with the 5mm thick upper bracket. There are threads in the upper bracket to mount the 30A circuit breaker supplied.
more …
