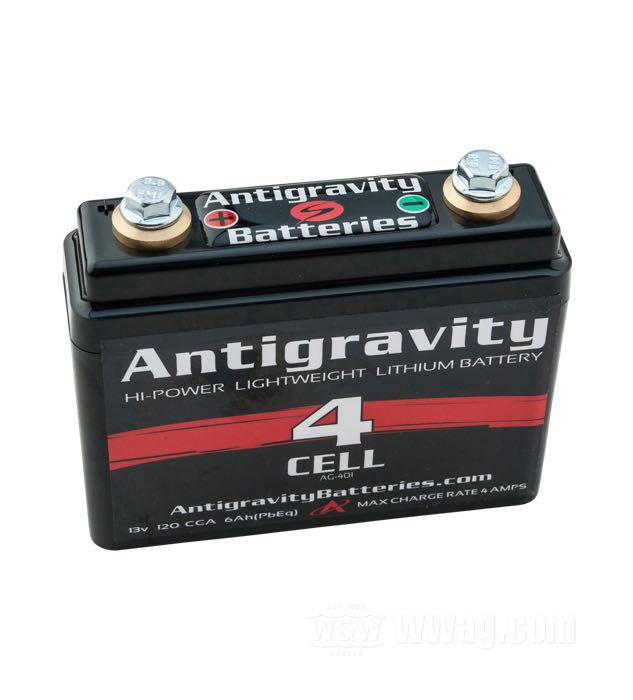

The Antigravity "Small Case" lithium ion batteries offer the most power and performance in the most compact size. They can be used as ultra-light battery for race vehicles to save space and weight, or for fitting into Custom and Performance motorcycles which require a small battery that keeps the look and at the same time delivers enough power to turn the starter. Can hold a charge up to a year provided there are no permanent drains, i.e. accessories that draw power when the bike is off, such as alarms, ECUs, GPS, clocks etc. Antigravity Small Case batteries can be installed in any orientation, feature unbreakable brass terminals and come in different power levels.
Capacity is indicated as "xAh Pb Eq" (lead equivalent), because the usable capacity of Li-Ion batteries is typically 3 times higher than an equivalent lead-acid accumulator. In other words, the value indicates which size lead acid battery would be required to deliver the same starting work.
This battery is best used for kickstart only bikes or race track applications where extreme weight loss and ultra compact size are desired. It is also often chosen by custom builders who want the smallest battery to tuck out of the way.
Lithium-ion batteries require suitable battery chargers. Automobile or motorcycle chargers for lead/acid batteries can cause damage to Li-Ion batteries because they charge in a different way.
For the caring charge of this battery a Cycle Electric Low Voltage regulator is recommended.
- replaces a 6 Ah AGM battery
- W x H x D: 115 x 94 x 38 mm
- net weight: 450 g
- 12 V
- 2 Ah
- energy rating: 30.08 Wh
- cold cranking current (SAE): 120 A
- pole connection: M5 (screws included)
- with adhesive backed foam mats
- gross weight: 600 g
Two batteries in parallel connection
Whoever - e.g. for reasons of space - intends to connect two small batteries in parallel, does not do any good to his regulator. Vehicle regulators are designed for charging only one battery. If you are connecting a second one in parallel, there's always one of the two that gets too much charge while the other one is starving to death. So please and in your best interest, provide some space for a single, but adequate battery and ride safely.
