IronheadChina Hamburger Drum Brakes
Price and stock:
Item №
27-450
Price incl. VAT
526.99 €
Available
36
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 84.14 € German VAT.

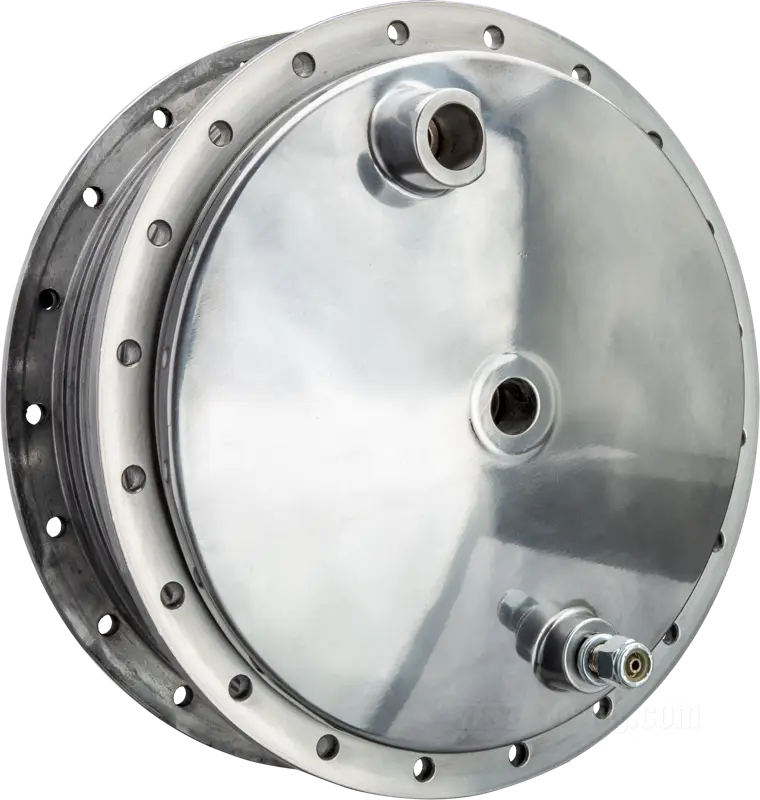

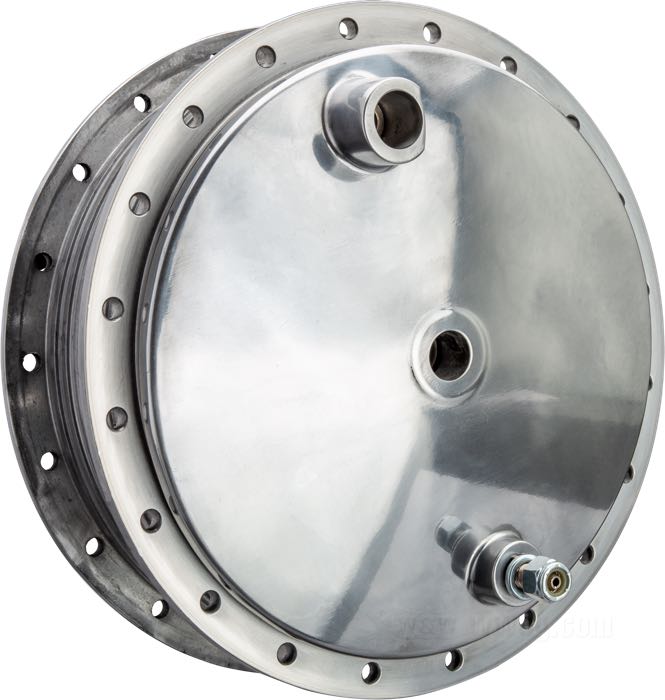

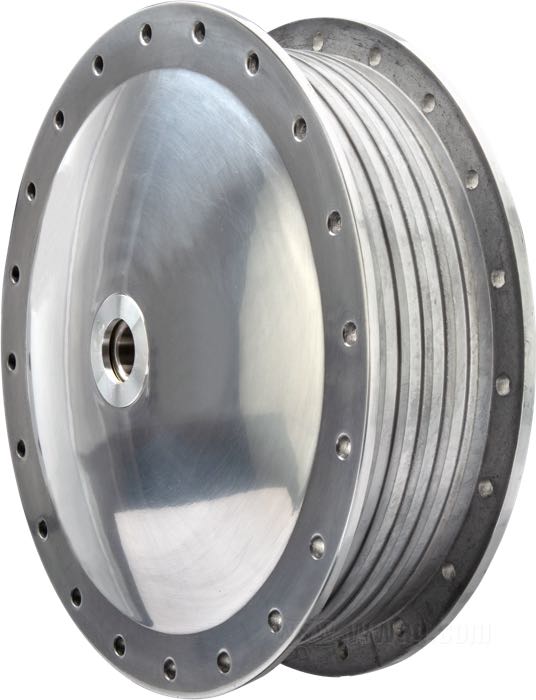

- Drum brake »Hamburger« by IronheadChina
- fits XL 1964-1972, FX 1971-1972
- matching axle Ø: 17 mm
- cast aluminum, polished, number of spoke holes: 40
- width: 111 mm
- position: front
- ID x OD: 202 x 248 mm

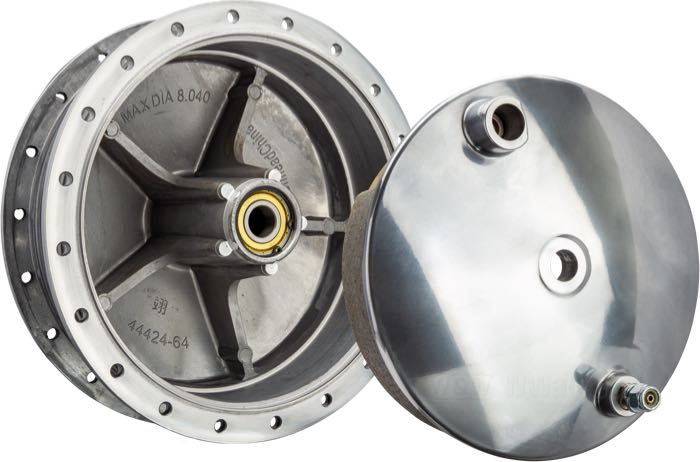

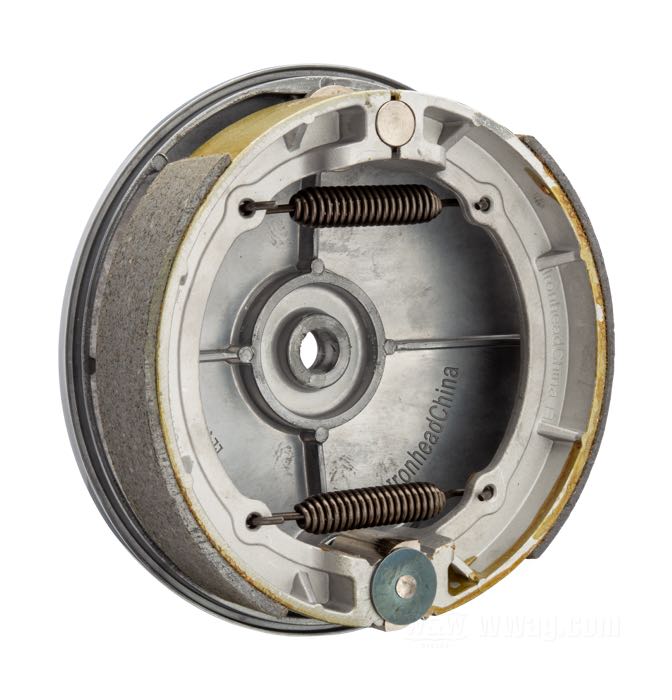

- with brake shoes, brake cam, springs, pivot stud
- replaces Harley-Davidson part number HD 43600-64, and 44148-64
- China
- gross weight: 5.31 kg

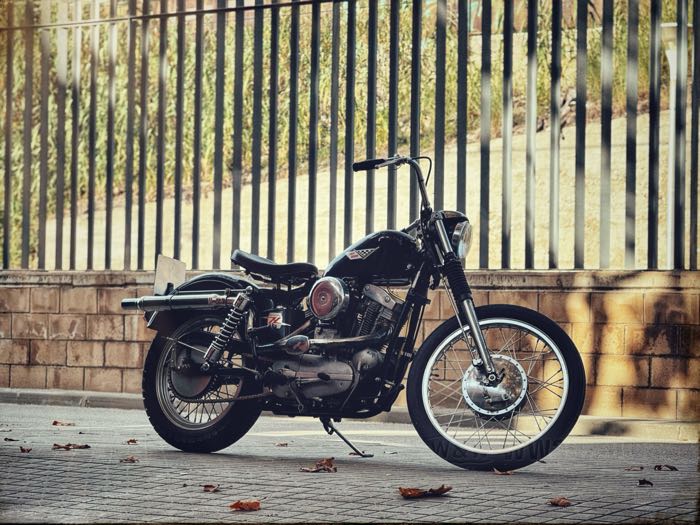

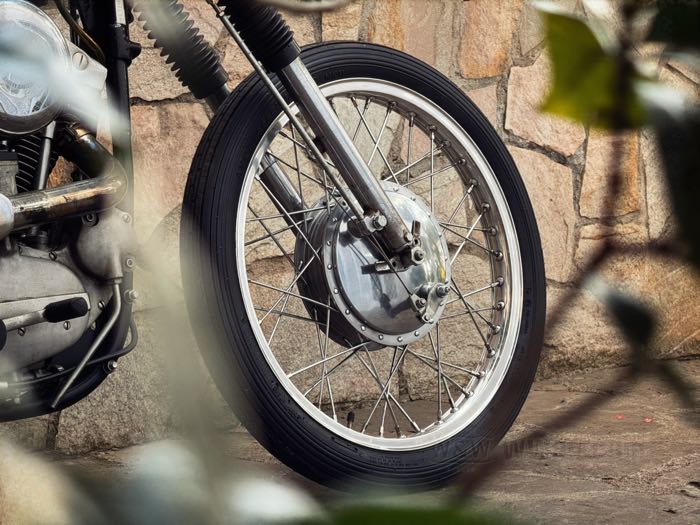

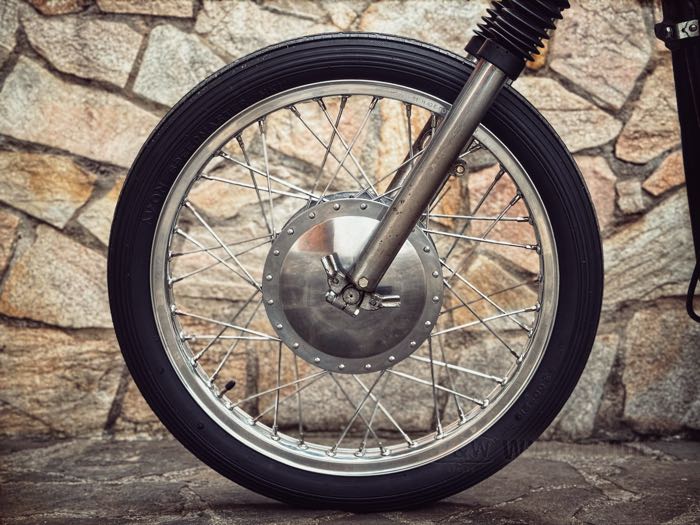

This is a high-quality reproduction of the Harley „Hamburger“ drum brake as originally mounted to XL 1964-1972 and early Super Glides. Nowadays original brakes are usually very difficult to find in good condition at an affordable price. These drum brakes made from die-cast aluminum are CNC precision-machined and in no way inferior to the originals in terms of quality and function.
Spare parts:
26-540
Ball bearing; for Wheel hub; fits Sportster front 1954-1972 and rear 1954-1978, CRS 180 mm front brake, aftermarket FL/FX hubs 1967-1972; steel; tolerance class: ABEC 5; ID x OD: 17 x 40 mm; 12 mm thick; replaces OEM HD 9009; gross weight: 70 g
Replacement Parts for Front Hubs/Drum Shells Model K and Sportster 1952-1972/FX 1971-1972
IronheadChina Brake Shoes for Hamburger Drum Brake
Accessories:
86-056
Lock washer »Standard«; steel, zinc plated; nominal ID: 7/16 ”; replaces OEM HD 7039; gross weight: 1 g
86-651
Screw; steel, zinc plated; hex; thread: 7/16”-20; length: 2-3/4 ” (70 mm); wrench size: 5/8 ”; replaces OEM HD 3433; gross weight: 60 g
15-297
Front axle; fits Sportster 1954-1972, FX 1971-1972; steel, chrome-plated; length: 184 mm; Ø 17 mm; thread: 9/16”-18; replaces OEM HD 43871-52; gross weight: 400 g
Adjuster Screws
Brake Levers
Brake Cable Clamp
Cable Tubes
Clevis Pins for Brake Cable Clamps
Spoke Sets for Front Brake Drum FX/XL 1964-1972
Spoke sets for the classic model K, Sportster and FX front drum brakes which are famous by the name of Hamburger brake.
