Bates Hamburger Brake Wheels



Bates Hamburger Brake Wheels

Item №

27-113

Price incl. VAT

1,273.30 €

Available

1



Ready for immediate delivery from our Würzburg, Germany warehouse

The price includes 203.30 € German VAT.

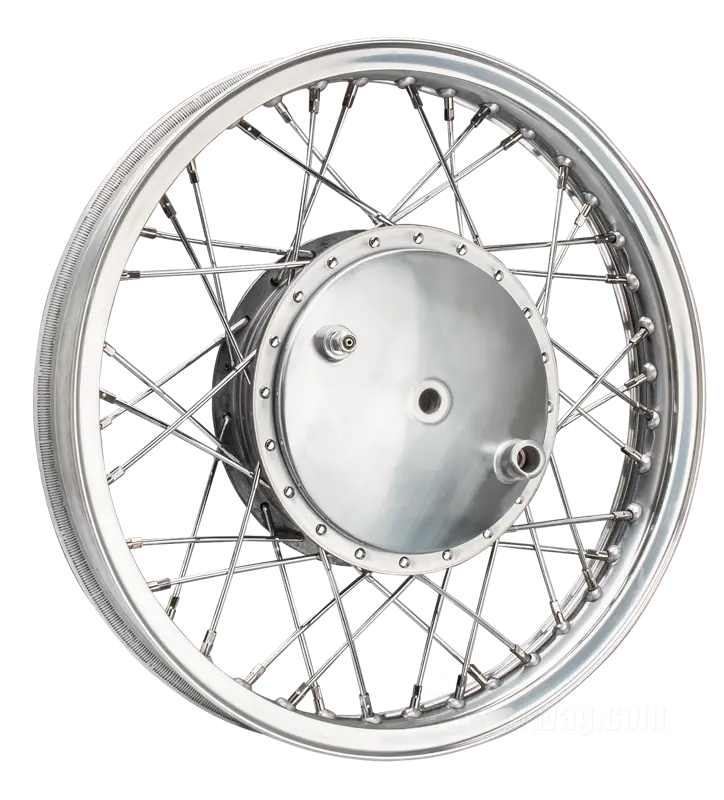

These complete spoke wheels by Bates are equipped with particularly light flanged aluminum rims and hamburger drum brakes as originally mounted on XL 1964-1972 and early Super Glides. Ideal for restoration projects, but they also cut a fine figure on classic choppers and other custom bikes.

Laced front wheel by Bates
fits XL 1964-1972, FX 1971-1972
aluminum / cast aluminum / steel
hub finish: polished
profile: flanged
rim finish: polished
2.15x19 ”
spokes: steel chrome plated
matching axle Ø: 17 mm
metal valve in center
position: front
replaces Harley-Davidson part number HD 43495-70, 43600-64, and 44148-64

Spare parts:

27-108

Rim; aluminum; profile: flanged; rim finish: polished; 2.15x19 ”; Number of Spoke Holes: 40; metal valve in center; inner Ø: 460 mm; for wide and narrow hubs; DOT approved; gross weight: 1.63 kg

25-248

Spoke set; steel, chrome-plated; length L1: 151; diameter D1: 5 mm; diameter D2: 4 mm; head angle α: 104 °; thread: 8G-32; for brake drum FX/XL 1964-1972; for 19" semi-drop center rims; 80 pieces; with nipples Ø 7.2 mm; gross weight: 960 g

26-540

Ball bearing; for Wheel hub; fits Sportster front 1954-1972 and rear 1954-1978, CRS 180 mm front brake, aftermarket FL/FX hubs 1967-1972; steel; tolerance class: ABEC 5; ID x OD: 17 x 40 mm; 12 mm thick; replaces OEM HD 9009; gross weight: 70 g

Replacement Parts for Front Hubs/Drum Shells Model K and Sportster 1952-1972/FX 1971-1972

Replacement Parts for Front Hubs/Drum Shells Model K and Sportster 1952-1972/FX 1971-1972

IronheadChina Hamburger Drum Brakes

IronheadChina Hamburger Drum Brakes

This is a high-quality reproduction of the Harley „Hamburger“ drum brake as originally mounted to XL 1964-1972 and early Super Glides. Nowadays original brakes are usually very difficult to find in good condition at an affordable price. These drum brakes made from die-cast aluminum are CNC precision-machined and in no way inferior to the originals in terms of quality and function.

IronheadChina Brake Shoes for Hamburger Drum Brake

IronheadChina Brake Shoes for Hamburger Drum Brake

Accessories:

26-116

Tire »Speedmaster Mk II« by Avon Tyres; rubber / steel; position: front; 3.00-19 54S; tube-type; permitted rims min-max: 1.60 - 2.15; DOT approved, E11 approved; gross weight: 2.8 kg

26-333

Chafing strip; for center valve; width: 24 mm; Ø 19”; gross weight: 40 g

27-101

Tire »Baja 100« by Bates; rubber / steel; position: front or rear; 4.00-19 71T; tubeless; permitted rims min-max: 2.15 - 3.00; DOT approved, E4 approved; Germany; gross weight: 6.5 kg

86-056

Lock washer »Standard«; steel, zinc plated; nominal ID: 7/16 ”; replaces OEM HD 7039; gross weight: 1 g

86-651

Screw; steel, zinc plated; hex; thread: 7/16”-20; length: 2-3/4 ” (70 mm); wrench size: 5/8 ”; replaces OEM HD 3433; gross weight: 60 g

15-297

Front axle; fits Sportster 1954-1972, FX 1971-1972; steel, chrome-plated; length: 184 mm; Ø 17 mm; thread: 9/16”-18; replaces OEM HD 43871-52; gross weight: 400 g

Adjuster Screws

Adjuster Screws

Brake Levers

Brake Cable Clamp

Brake Cable Clamp

Cable Tubes

Clevis Pins for Brake Cable Clamps

Clevis Pins for Brake Cable Clamps
