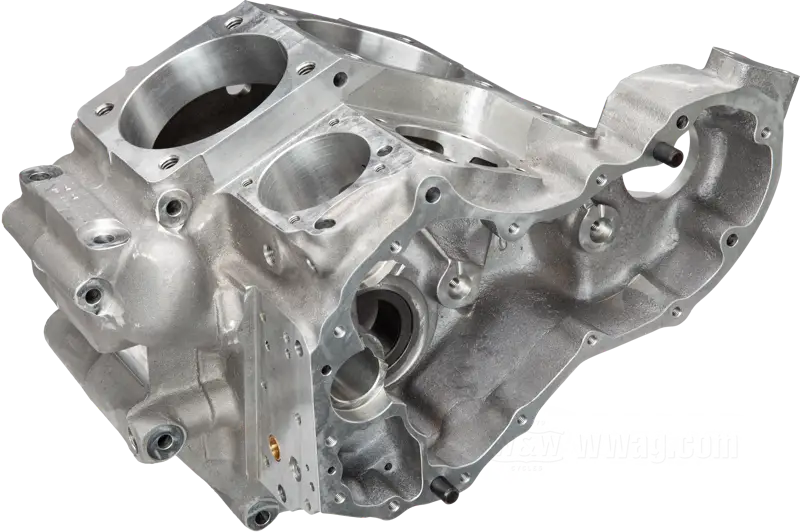

Cannonball Knucklehead Crankcases

Cannonball Knucklehead Crankcases

Price and stock:
Item №
63-406
Price incl. VAT
3,508.48 €
Available
0
Temporarily out of stock
The price includes 560.18 € German VAT.

Restock notification

Let us notify you by e-mail as soon as we have restocked this item. We’ll send one (1) notification to your account’s e-mail address once this item is back in our shelves.
Save to wish list
Facts
Description
Good to know
  • Crankcases by Cannonball
  • fits Knucklehead 1941-1947
  • cam shaft bushing ID: 20.66 mm
  • cast aluminum, cast finish
  • replaces Harley-Davidson part number HD 24520-41
  • Germany
  • gross weight: 13.97 kg

Reproduction crankcases which meet or exceed highest restoration demands. Cast from state-of-the-art materials and machined on CNC equipment for strength and precise fitment. Intended to work with stock or identically constructed engine components. Finished and detailed like the original counterparts so these cases will smoothly blend into your old mill to give it a new life. For ease of installation both case halves are carefully matched and feature pre-installed case bushings, which are line bored and lapped for standard rollers. Cam bushings are already in place and reamed. (For exact measures pls see facts).

All cases feature laser-engraved CB production numbers, which are registered and filed.

Quality information re. Cannonball Crankcases.

The W&W Cycles AG selection of Cannonball engine cases are not related in any way in terms of manufacture or distribution to the products of Motortechnic mfg (distributed in the USA by V-Twin mfg/Tedd Cycle Inc., among others).

We have been working for years with three German companies selected by us, who carry out the casting and machining, including the fitting and honing of the bearing races for the crankshaft.

For this reason we grant our own manufacturer's warranty for Cannonball products.
