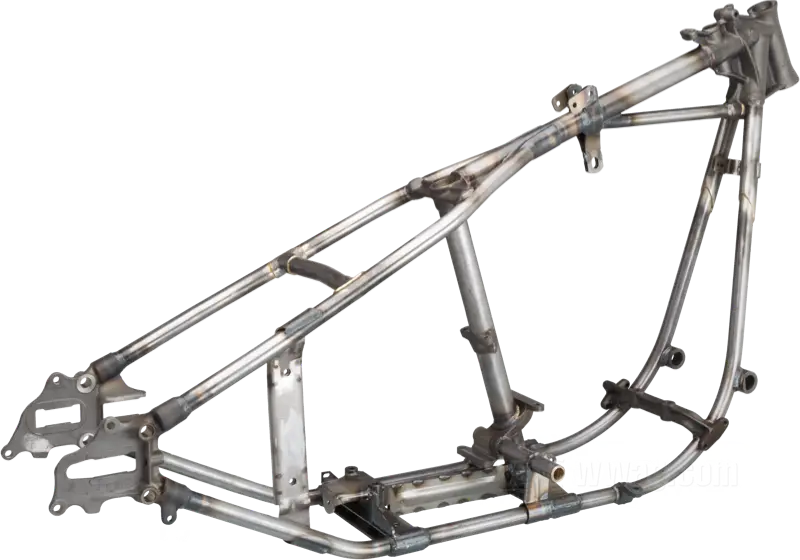

VG Big Twin Rigid Frames

Reproduction frames which can be used as stock replacements or as a basis to build a bobber or chopper from scratch. Dimensions and details closely follow the factory counterparts. Most castings feature raised numbers and markings just like the factory used them. The brake shaft tube has pressed-in bushings which are reamed to size. Each frame comes with its year correct toolbox mount.

Please check permission to use them as replacements for original frames with your local authorities.

  • steel / nodular cast iron, bare
  • The Netherlands
Item №
Version
net price*
unit
Availability in warehouse Germany
VG Big Twin Rigid Frames
15-959
»Straightleg«; fits Knucklehead 1936; rake: 25 °; replaces OEM HD 2801-36
$3,450.89
each
Go to article
VG Big Twin Rigid Frames
15-958
»Straightleg«; fits Knucklehead/Big Twin Flathead 1937; rake: 25 °; replaces OEM HD 2801-36
$3,450.89
each
Go to article
VG Big Twin Rigid Frames
15-980
»Straightleg«; fits Knucklehead/Big Twin Flathead 1938-1940; rake: 28 °; replaces OEM HD 2801-36
$3,450.89
each
Go to article
VG Big Twin Rigid Frames
15-960
»Straightleg«; fits Knucklehead/Big Twin Flathead 1941-1945; rake: 29 °; replaces OEM HD 47000-40
$3,450.89
each
Go to article
VG Big Twin Rigid Frames
15-961
»Straightleg Bullneck«; fits Knucklehead/Big Twin Flathead 1946; net weight: 26 kg; rake: 30 °; replaces OEM HD 47000-40A
$3,450.89
each
Go to article
VG Big Twin Rigid Frames
15-965
»Straightleg«; fits Knucklehead/Big Twin Flathead 1947; rake: 30 °; replaces OEM HD 47000-40A
$3,450.89
each
Go to article
VG Big Twin Rigid Frames
15-962
»Wishbone«; fits Panhead 1948; rake: 30 °; replaces OEM HD 47000-40A
$3,265.47
each
Go to article
VG Big Twin Rigid Frames
15-981
»Wishbone«; fits Panhead 1949-1951; rake: 30 °; replaces OEM HD 47000-40A
$3,265.47
each
Go to article
VG Big Twin Rigid Frames
15-982
»Wishbone«; fits Panhead 1952-1953; rake: 30 °; replaces OEM HD 47000-40A
$3,265.47
each
Go to article
VG Big Twin Rigid Frames
15-983
»Wishbone«; fits Panhead early 1954; without horn mounts; rake: 30 °; replaces OEM HD 47000-40A
$3,265.47
each
Go to article
VG Big Twin Rigid Frames
15-964
»Straightleg«; fits Panhead late 1954-1957; rake: 30 °; replaces OEM HD 47003-54A
$3,265.47
each
Go to article
