Bates Solo Seat Springs Conical Type

Bates Solo Seat Springs Conical Type

Select variant:
40-972
rider weight: →75kg; ID 8 mm and 11 mm; wire Ø: 4.8 mm; spring rate: 25 N/mm
40-973
rider weight: →75kg; ID 8 mm and 15 mm; wire Ø: 4.8 mm; spring rate: 25 N/mm
 40-945
rider weight: 75kg→; ID 8 mm and 11 mm; wire Ø: 5 mm; spring rate: 35 N/mm
 40-946
rider weight: 75kg→; ID 8 mm and 15 mm; wire Ø: 5 mm; spring rate: 35 N/mm
Price and stock:
Item №
40-972
Price incl. VAT
25.82 €
Available
8
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 4.12 € German VAT.
piece
Save to wish list
Description
Facts

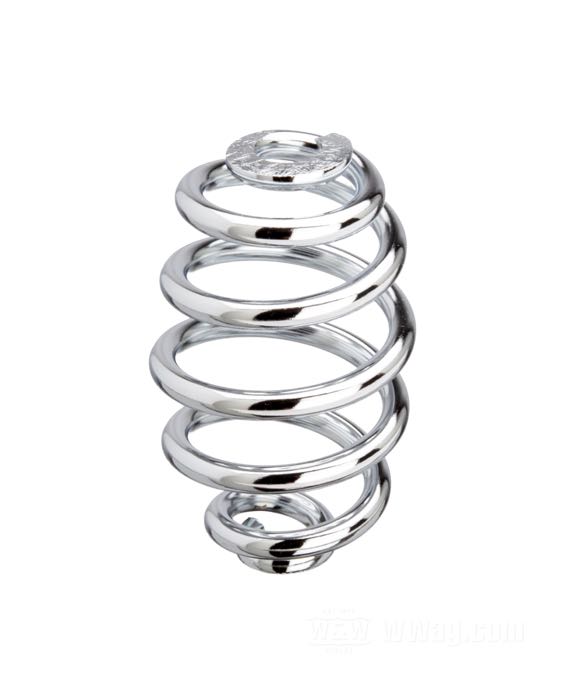

Quality seat springs of German manufacture with unique features for a simple and safe installation. Both wire ends are laid in and have precision ground contact surfaces so the spring stays at a right angle when bolted down to the seat and bracket. An ID of 8 mm on one end and 11 or 15 mm on the other cover most situations. Available in two different spring rates.

  • Seat Spring »Conical Type« by Bates
  • rider weight: →75kg
  • spring steel, chrome-plated, ID 8 mm and 11 mm
  • length: 3”
  • Ø 46 mm
  • wire Ø: 4.8 mm
  • spring rate: 25 N/mm
  • Germany
  • gross weight: 94 g
