LeBeeF Front Mount for OEM Style Solo Seats

LeBeeF Front Mount for OEM Style Solo Seats

Price and stock:
Item №
45-746
Price incl. VAT
274.20 €
Available
29
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 43.78 € German VAT.
piece
Save to wish list
  • Mounting kit by LeBeeF
  • for OEM Style Solo Seats
  • fits Big Twin 1936-1980
  • front
  • steel, parkerized
  • Ø 30 mm
  • Spain
  • gross weight: 788 g

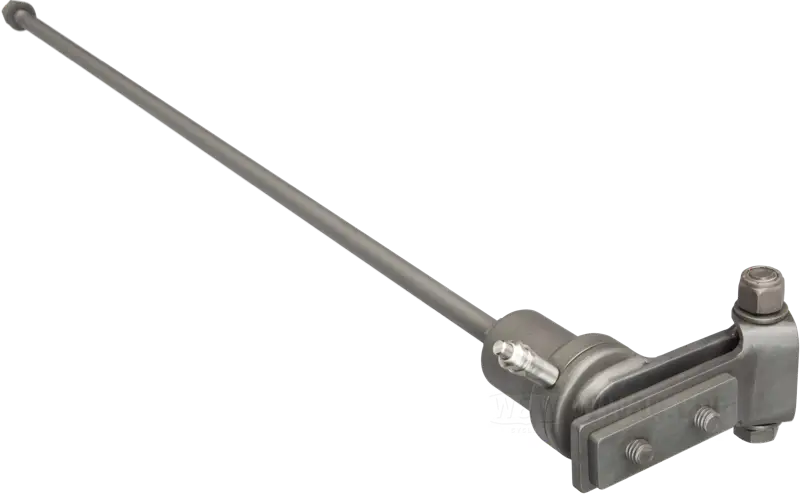

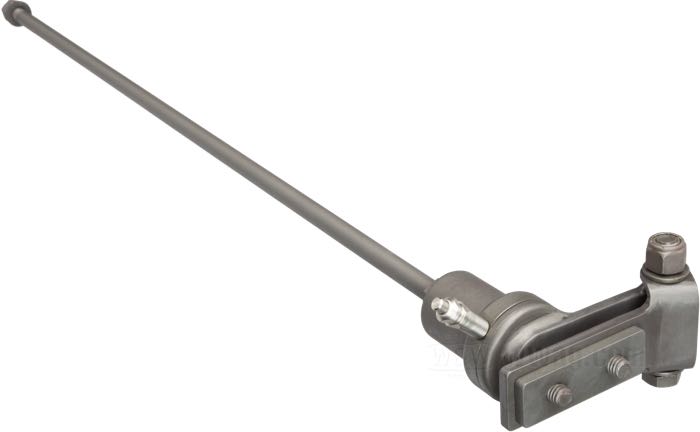

A bolt-on solution from LeBeeF for the front mounting of OEM solo seats on basically all seat-post suited H-D frames. This ingenious device with hinge installs into your center frame tube which normally houses the seat post. It consists of a bushing and insert with attached hinge. The bushing has a thru-rod attached by which it is permanently tied down into the frame tube. The bushing insert is secured with a pin which makes removal of the seat a snap. Large OEM type seats require an adapter bracket for the seat springs. On smaller OEM type seats like the ELR Knuckle seat the coil springs can be directly attached to the seat pan. A perfect solution for mounting those big Bobber Seats if welding on an old stock frame is out of the question.

The seat mount fits frames with 30 mm ID seat post tube. This is the case on most custom frames or OEM frames with no or worn out bushings. Owners of OEM frames with seat post bushings in good working order (ID 1-1/8”) will have to modify the bushing.
