The Cyclery Linkert Manifold Leak Testers
Select variant:

for manifold type Schebler DLX, Linkert 1-1/4” M-series 3-bolt


for manifold type Linkert M-series 4-bolt
Price and stock:
Item №
01-490
net price
$66.59
Available
6
Ready for immediate delivery from our Würzburg, Germany warehouse
* Tax free shipping.

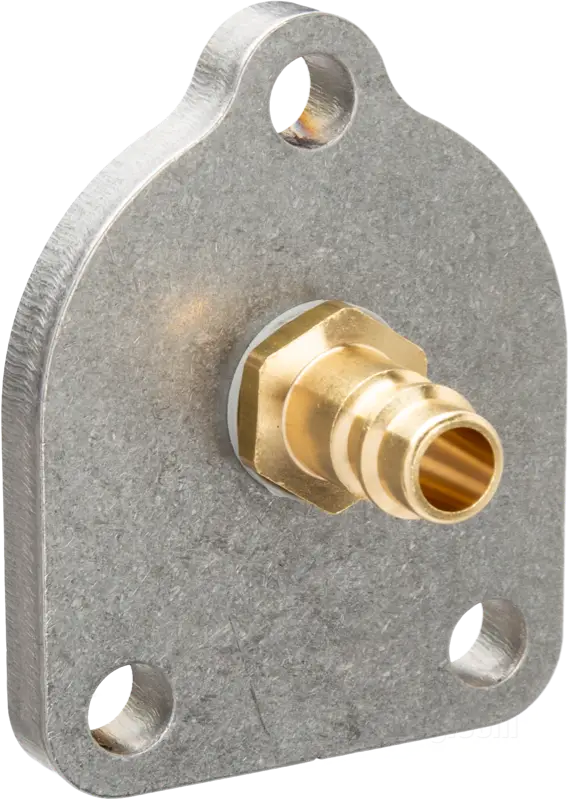

- Manifold leak tester by The Cyclery
- for manifold type Schebler DLX, Linkert 1-1/4” M-series 3-bolt
- fits Flathead, Knuckelhead, Panhead, K-Models
- stainless steel / brass / plastic
- Germany
- gross weight: 233 g
Engines with a leaking intake manifold are hard to kickstart and will never run properly. That’s why you need one of these leak testers in your workshop, which will once and for all take the guess work out of your installation job. Just bolt them to your manifold (use the stock gasket!), close both intake valves, by slowly turning the engine and with an air hose hooked-up to the G 1/4” fitting apply up to 10 psi of pressure. Spray soapy water around the gasket and manifold clamps and in case of appearing bubbles you can clearly spot any air leaks in your intake system.
Accessories:

57-552
Gasket by James Gaskets; for Butterfly carburetor / Manifold; for Schebler DLX and 1-1/4” Linkert carburetors and manifolds; fits IOE 74” 1921-1923, all IOE and Sidevalves 1924-1958, Knucklehead 1936-1939; paper; Ø 40 mm; replaces OEM HD 27410-39, 1121-21, and 1121-39; gross weight: 1 g

Gaskets for Schebler and Linkert Carburetors to Manifold
See also:

The Cyclery Manifold Open End Wrenches
Factory style open end wrenches for the large manifold plumber nuts.

1940-1954 Manifold Conversion
Complete conversion kit for Knuckles and Pans from 1940–54. Replaces the stock threaded inlet nipples and manifold with O-ring adaptors and o-ring manifold.

PEEK Super Seal Rings for Linkert Manifolds
These are the seals many of you have heard about, which will once and for all cure the notorious intake leaks of old manifolds. They are machined from PEEK (polyetheretherketone), a thermoplastic with a melting point of 650°F (343°C). Compared to brass seals this material has superior creep resistance and seal properties and can sustain large stresses over a long service life without significant extrusion.
