Shop Ignition Magnetos
Morris Magneto MM74E for OHV Big Twins 1936-1969

Morris Magneto MM74E for OHV Big Twins 1936-1969

Price and stock:
Item №
13-274
Price incl. VAT
2,472.01 €
Available
4
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 394.69 € German VAT.
piece
Save to wish list

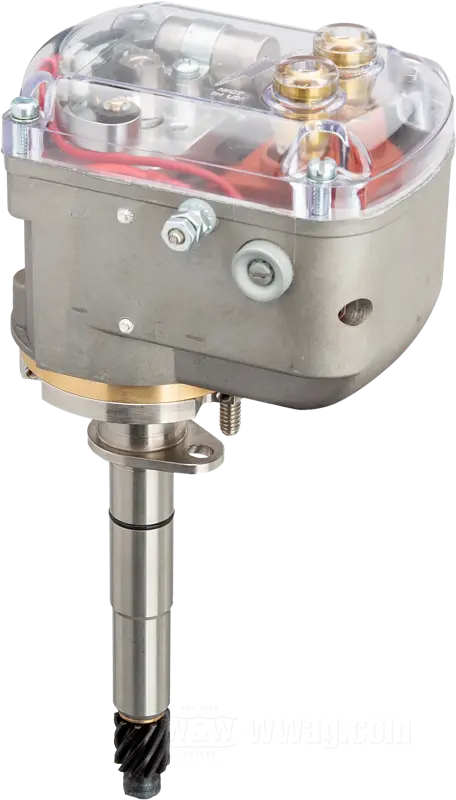

  • Magneto »MM74E« by Morris Magneto
  • fits Big Twin OHV 1936-1969
  • aluminum, cast finish, clear cap, magneto will be oriented sideways
  • USA
  • gross weight: 2.77 kg

The MM74E-type magnetos are mounted at a forward angle, replacing the stock distributor. They fit Knucklehead, Panhead, and Shovelhead engines from 1936 to 1969. Timing is manually set to full retard for starting, and—if the mounting screws are correctly adjusted—the unit automatically advances to full timing once the engine is running.

On original engine cases up to and including 1964, we recommend mounting the magneto to the side. Mounting it in the forward-facing position requires grinding off the casting lug above the generator mount.

Morris Magnetos

There aren’t many products in the Harley-Davidson aftermarket that have reached true cult status — but Morris Magnetos are definitely one of them. Magneto ignitions have a long-standing tradition in Milwaukee, used on both street bikes and racers. Even today, they remain the top choice when a bike builder values reliability, simplicity, and complete independence of the ignition system from the rest of the bike’s electrical setup.

Despite being fully mechanical, a properly tuned magneto is virtually wear-free. The current flowing through the points is much lower than in battery ignition systems, which puts less stress on the components — assuming correct setup and minimal maintenance, of course.

Sure, a magneto can’t compete with modern digital multi-spark engine management systems, and it won’t offer onboard diagnostics either. But for anyone looking for a dependable, powerful, and easy-to-use ignition setup, a magneto is still a solid choice. And let’s face it — a good magneto just looks seriously cool.

Battery ignitions rely on a charging system, a battery, and a coil to make spark — which means more wiring and more potential failure points. A magneto, on the other hand, packs everything into one compact housing and generates its own spark energy. Simple and effective.

Accessories:

Rony L.L.C. Ignition/Starter Switch

Rony L.L.C. Ignition/Starter Switch

Waterproof universal ignition switch which will work trouble-free even in heavy downpours. The switch features OFF-RUN-START and HORN positions/functions. Can be used without a starter relay. The OFF position can be used to ground magnetos.
more …
Rony L.L.C. Ignition/Starter Switch

Rony L.L.C. Ignition/Starter Switch

Waterproof universal ignition switch which will work trouble-free even in heavy downpours. The switch features OFF-RUN-START and HORN positions/functions. Can be used without a starter relay. The OFF position can be used to ground magnetos.
more …
Morris MRA Advance-Retard Kit

Morris MRA Advance-Retard Kit

The MRA is a revolutionary new device which aids starting by retarding the timing on fixed-position magnetos, helping to turn the infamous kick-backs and spit-backs into starts. When the cap-mounted lever is flipped, the points 'shift' 10 degrees, retarding your timing 20 degrees for starting. When the motor runs the lever is then locked in the advanced position by a rare-earth magnet. You'll love it! Fits clockwise turning Morris magnetos and other identically constructed magnetos like Joe Hunt, Fairbanks, etc. with cast housings.
more …
Single Fire Adapter

Single Fire Adapter

In-line polarizing solid state adapters to convert your magneto to single-fire operation. Use one kit for for single or two kits for dual plug applications. With each set-up only the live cylinder fires. Works with all Harley magnetos.
more …
Racing Magneto Caps

Racing Magneto Caps

Performance version of the magneto top cover with protruding terminals for a more secure fastening of the ignition wire leads.
more …
