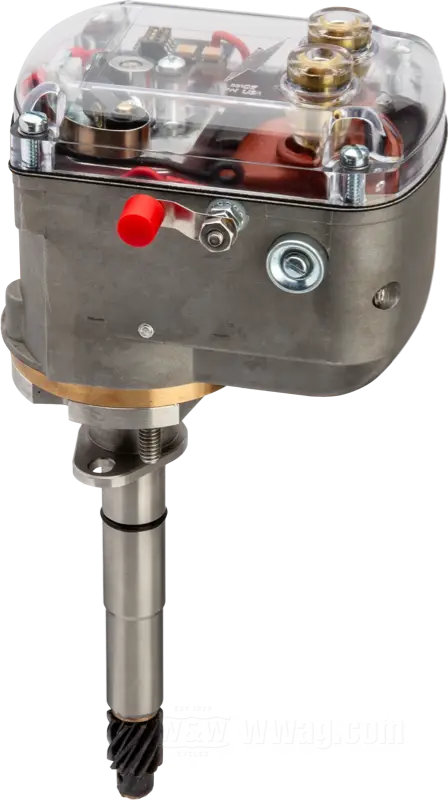

Morris Magneto MM74E for OHV Big Twins 1936-1969




- Magneto »MM74E« by Morris Magneto
- fits Big Twin OHV 1936-1969
- aluminum, cast finish, clear cap, magneto will be oriented in direction of travel
- USA
- gross weight: 2.77 kg
The MM74E-type magnetos are mounted at a forward angle, replacing the stock distributor. They fit Knucklehead, Panhead, and Shovelhead engines from 1936 to 1969. Timing is manually set to full retard for starting, and—if the mounting screws are correctly adjusted—the unit automatically advances to full timing once the engine is running.
On original engine cases up to and including 1964, we recommend mounting the magneto to the side. Mounting it in the forward-facing position requires grinding off the casting lug above the generator mount.
Morris Magnetos
There aren’t many products in the Harley-Davidson aftermarket that have reached true cult status — but Morris Magnetos are definitely one of them. Magneto ignitions have a long-standing tradition in Milwaukee, used on both street bikes and racers. Even today, they remain the top choice when a bike builder values reliability, simplicity, and complete independence of the ignition system from the rest of the bike’s electrical setup.
Despite being fully mechanical, a properly tuned magneto is virtually wear-free. The current flowing through the points is much lower than in battery ignition systems, which puts less stress on the components — assuming correct setup and minimal maintenance, of course.
Sure, a magneto can’t compete with modern digital multi-spark engine management systems, and it won’t offer onboard diagnostics either. But for anyone looking for a dependable, powerful, and easy-to-use ignition setup, a magneto is still a solid choice. And let’s face it — a good magneto just looks seriously cool.
Battery ignitions rely on a charging system, a battery, and a coil to make spark — which means more wiring and more potential failure points. A magneto, on the other hand, packs everything into one compact housing and generates its own spark energy. Simple and effective.
