Shop Ignition Magnetos
Morris Magneto MM3 for Sidevalves and Sportsters →1970

Morris Magneto MM3 for Sidevalves and Sportsters →1970

Select variant:
13-265
machined finish
13-272
cast finish
Price and stock:
Item №
13-265
Price incl. VAT
2,165.91 €
Available
5
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 345.82 € German VAT.
kit
Save to wish list

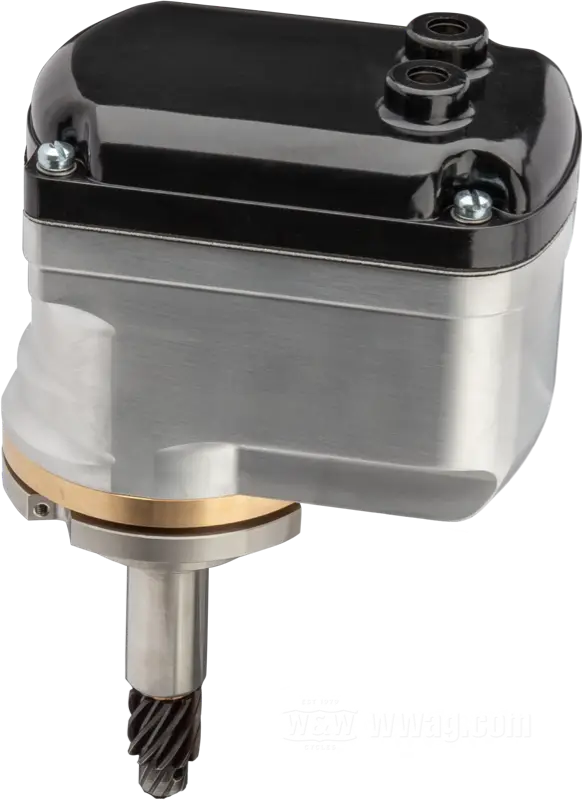

  • Magneto »MM3« by Morris Magneto
  • fits Flathead 1937→, all K Models and Sportster →1970
  • aluminum, machined finish
  • replaces Harley-Davidson part number HD 29505-67
  • USA
  • gross weight: 2.78 kg

The MM3-type magnetos are mounted upright in place of the stock distributor. They fit flathead models from 1937 onward and Sportsters from 1957 to 1970. Timing is set manually to full retard for starting, and — if the mounting bolts are properly adjusted — the magneto will automatically rotate to the advanced timing position after the engine fires.

Morris MM3 magnetos are a convenient replacement for well-aged original XLCH magnetos (29505-67).

Morris Magnetos

There aren’t many products in the Harley-Davidson aftermarket that have reached true cult status — but Morris Magnetos are definitely one of them. Magneto ignitions have a long-standing tradition in Milwaukee, used on both street bikes and racers. Even today, they remain the top choice when a bike builder values reliability, simplicity, and complete independence of the ignition system from the rest of the bike’s electrical setup.

Despite being fully mechanical, a properly tuned magneto is virtually wear-free. The current flowing through the points is much lower than in battery ignition systems, which puts less stress on the components — assuming correct setup and minimal maintenance, of course.

Sure, a magneto can’t compete with modern digital multi-spark engine management systems, and it won’t offer onboard diagnostics either. But for anyone looking for a dependable, powerful, and easy-to-use ignition setup, a magneto is still a solid choice. And let’s face it — a good magneto just looks seriously cool.

Battery ignitions rely on a charging system, a battery, and a coil to make spark — which means more wiring and more potential failure points. A magneto, on the other hand, packs everything into one compact housing and generates its own spark energy. Simple and effective.

Accessories:

Rony L.L.C. Ignition/Starter Switch

Rony L.L.C. Ignition/Starter Switch

Waterproof universal ignition switch which will work trouble-free even in heavy downpours. The switch features OFF-RUN-START and HORN positions/functions. Can be used without a starter relay. The OFF position can be used to ground magnetos.
more …
Rony L.L.C. Ignition/Starter Switch

Rony L.L.C. Ignition/Starter Switch

Waterproof universal ignition switch which will work trouble-free even in heavy downpours. The switch features OFF-RUN-START and HORN positions/functions. Can be used without a starter relay. The OFF position can be used to ground magnetos.
more …
Morris MRA Advance-Retard Kit

Morris MRA Advance-Retard Kit

The MRA is a revolutionary new device which aids starting by retarding the timing on fixed-position magnetos, helping to turn the infamous kick-backs and spit-backs into starts. When the cap-mounted lever is flipped, the points 'shift' 10 degrees, retarding your timing 20 degrees for starting. When the motor runs the lever is then locked in the advanced position by a rare-earth magnet. You'll love it! Fits clockwise turning Morris magnetos and other identically constructed magnetos like Joe Hunt, Fairbanks, etc. with cast housings.
more …
Single Fire Adapter

Single Fire Adapter

In-line polarizing solid state adapters to convert your magneto to single-fire operation. Use one kit for for single or two kits for dual plug applications. With each set-up only the live cylinder fires. Works with all Harley magnetos.
more …
Racing Magneto Caps

Racing Magneto Caps

Performance version of the magneto top cover with protruding terminals for a more secure fastening of the ignition wire leads.
more …
Magneto Adapter Plate

Magneto Adapter Plate

Replaces the factory mounting plate on Sportster models 1962-1964. Also required for magneto installation on Flathead engines.
more …
