Bates Hamburger Brake Wheels

Spoke set; steel, chrome-plated; length L1: 177; diameter D1: 5 mm; diameter D2: 4 mm; head angle α: 104 °; thread: 8G-32; for brake drum FX/XL 1964-1972; for 21" drop-center and semi-drop center rims; 80 pieces; with nipples Ø 7.2 mm; gross weight: 1.06 kg

Ball bearing; for Wheel hub; fits Sportster front 1954-1972 and rear 1954-1978, CRS 180 mm front brake, aftermarket FL/FX hubs 1967-1972; steel; tolerance class: ABEC 5; ID x OD: 17 x 40 mm; 12 mm thick; replaces OEM HD 9009; gross weight: 70 g

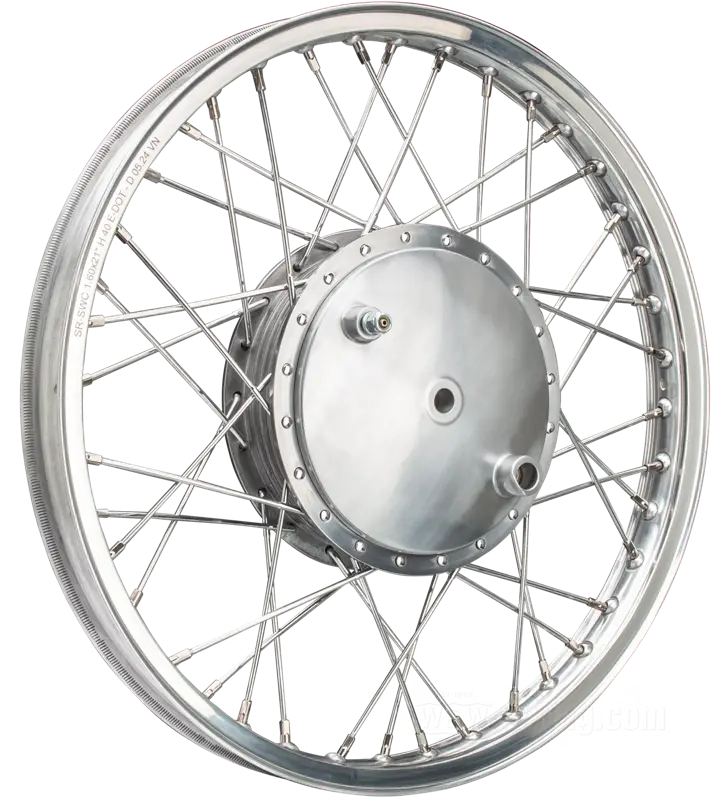

This is a high-quality reproduction of the Harley „Hamburger“ drum brake as originally mounted to XL 1964-1972 and early Super Glides. Nowadays original brakes are usually very difficult to find in good condition at an affordable price. These drum brakes made from die-cast aluminum are CNC precision-machined and in no way inferior to the originals in terms of quality and function.

Chafing strip; for center valve; width: 24 mm; Ø 21”; gross weight: 50 g

Tire »Baja 100« by Bates; rubber / steel; position: front or rear; 3.00-21 57T; tubeless; permitted rims min-max: 1.60 - 2.15; DOT approved, E4 approved; Germany; gross weight: 4.23 kg

Lock washer »Standard«; steel, zinc plated; nominal ID: 7/16 ”; replaces OEM HD 7039; gross weight: 1 g

Screw; steel, zinc plated; hex; thread: 7/16”-20; length: 2-3/4 ” (70 mm); wrench size: 5/8 ”; replaces OEM HD 3433; gross weight: 60 g

Front axle; fits Sportster 1954-1972, FX 1971-1972; steel, chrome-plated; length: 184 mm; Ø 17 mm; thread: 9/16”-18; replaces OEM HD 43871-52; gross weight: 400 g

Like a blast from the infamous wooden board tracks. The minimalist, sparing tread of this tire reminds of a teens race bike and will look way cool on your skinny chopper or race inspired custom bike.
