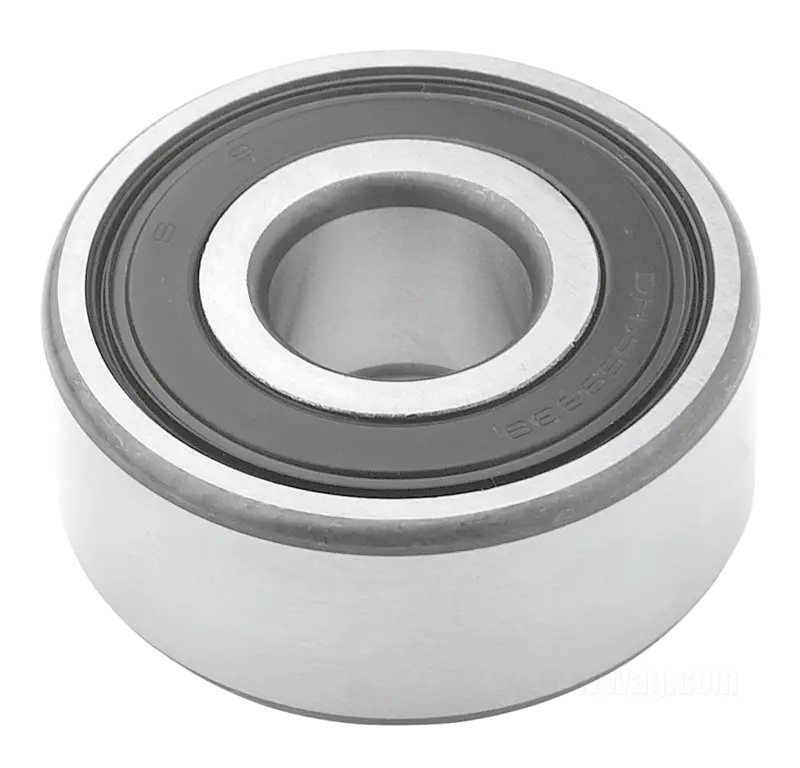

Ball bearing
Ball bearing
The closed wheel bearings used by H-D since 2000 (all with 52 mm outer diameter, inner diameter 3/4", 1" and 25 mm) should be replaced with an extractor to protect the hubs. In addition, they are sometimes fitted so tight that you have to work with heat to get them out of the hub without damaging the bearing seat.
- for Wheel hub
- fits Touring rear: 2000-2001, Softail front: all 2000-2006 + FLSTSC 2007 + FLSTSB 2009-2011, Softail rear: 2000-2007, Dyna front: 2000-2003, Dyna rear: 2000-2005, Sportster front: 2000-2007, Sportster rear: 2000-2004
- steel
- tolerance class: ABEC 1
- ID x OD: 19.1 x 52 mm
- 21 mm thick
- replaces Harley-Davidson part number 9267
- gross weight: 200 g
The closed wheel bearings used by H-D since 2000 (all with 52 mm outer diameter, inner diameter 3/4", 1" and 25 mm) should be replaced with an extractor to protect the hubs. In addition, they are sometimes fitted so tight that you have to work with heat to get them out of the hub without damaging the bearing seat.
