Teardrop Gas Tanks
Select required gas cap:

2 x vented


1 x vented
Price and stock:
Item №
35-082
Price incl. VAT
253.47 €
Available
9
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 40.47 € German VAT.
- Gas tank »Teardrop«
- steel
- volume: 8.3 l
- required gas cap: cam-style 1955-1982
- required gas cap: 2 x vented
- required petcock: 3/8” NPT and 1/4” NPT
- required petcock: 3/8” NPT and 1/4” NPT
- gross weight: 3.21 kg

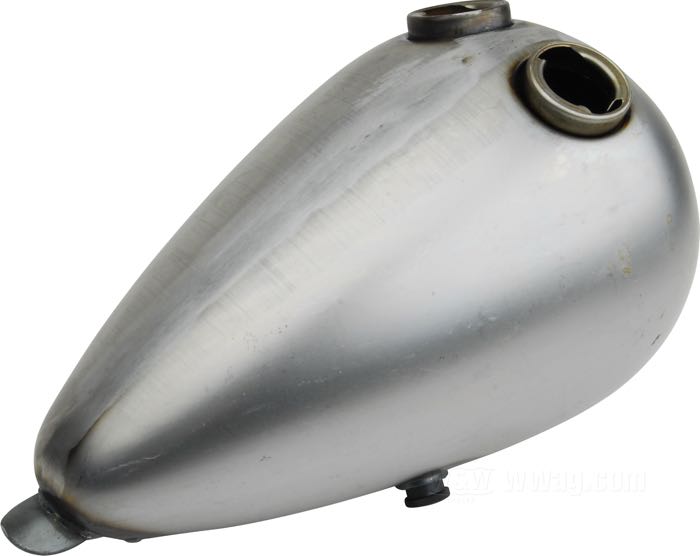

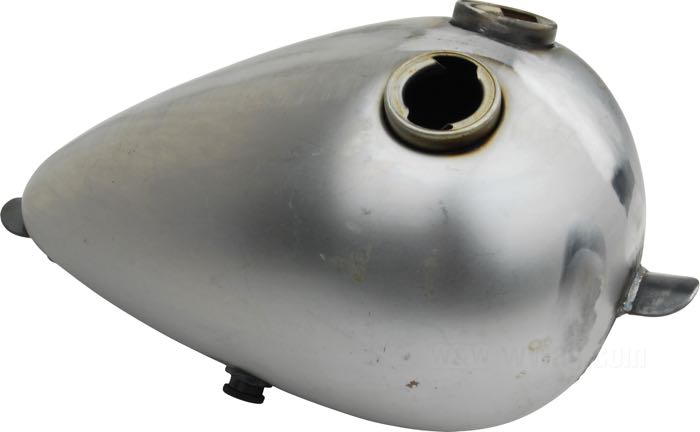

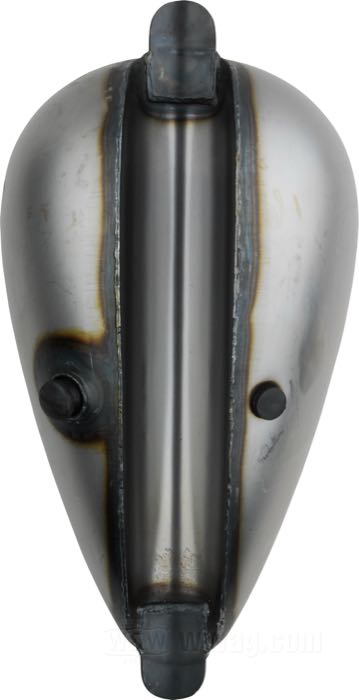

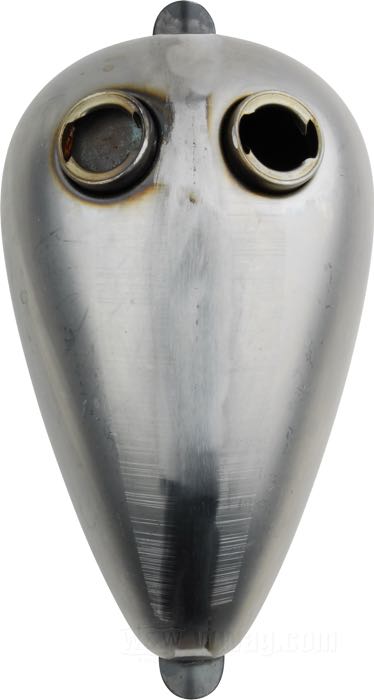

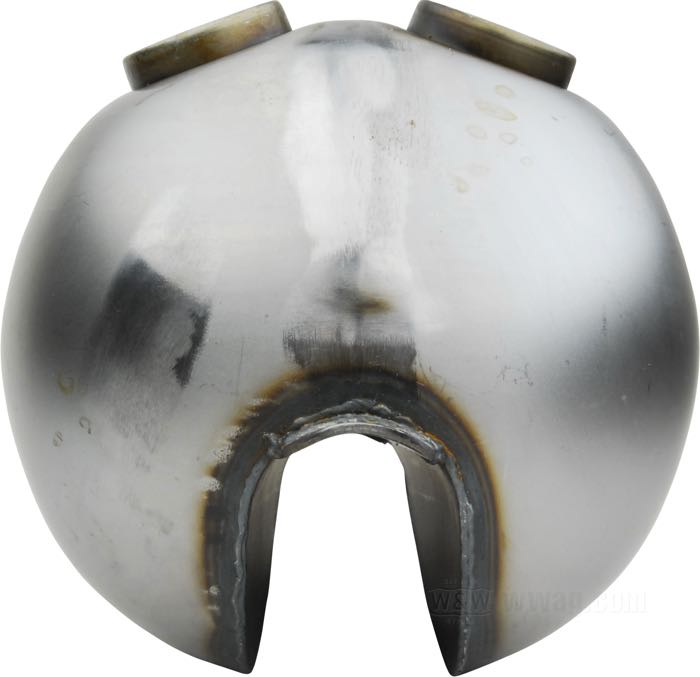

Small teardrop style chopper gas tanks which are made from steel. Fore and aft tabs allow for custom installation on most frames. They feature a 3/8” NPT petcock thread on the right side and a 1/4” NPT thread on the left.
All gas tanks by W&W Cycles are delivered unpainted and unsealed. Before the paint job and final installation please consider the following:
- We consistently receive tight gas tanks from the manufacturers, both Custom and OEM replacements.
- Problems mostly occur during or after installation. Hence, before a pressure test and before painting - a probationary tensionless installation is highly recommended. Any leverage on the tank mounts spells trouble. Better use our selection of small parts.
- To avoid corrosion always fill your tank to the max during longer downtimes or seal it on the inside.
Accessories:

36-155
Plug; aluminum; thread: 1/4”-18 NPT; gross weight: 10 g

36-156
Plug; stainless steel; thread: 1/4”-18 NPT; replaces OEM HD 721; gross weight: 10 g

36-160
Plug; aluminum; thread: 3/8”-18 NPT; gross weight: 10 g

36-161
Plug; stainless steel; thread: 3/8”-18 NPT; gross weight: 10 g

Prism Fuel Valves
These small petcocks fit direct to either a 1/4" or 3/8" NPT bung on your gas tank. This keeps your gas tank looking very clean. They feature a 5/16" diameter hose barb on one end and a fuel filter on the other. The manufacturer recommends 1/4" ID fuel line for a snug, leak proof fit. Rotating the cylindrical piece with the two grooves is how the fuel is toggled on and off. No reserve. Length measured without hose barb and filter.

OEM Style 1955-1972 Gas Caps
The design of these gas caps matches the original caps from the years of manufacture 1955-1972. From 1965, the left side was equipped with a non-vented gas cap to prevent overflow. This also fits older models and all aftermarket tanks.
See also:

Tankdoc Gas Tank Restoration Kits
A complete system by the German company Busch to restore common motorcycle gas tanks. Cleaner, rust remover and sealant - the set contains them all. The high performance components will clean out even bad cases of corrosion and will dependably seal hairline cracks and small holes. Within 8-12 hours the sealant can be applied repeatedly which extends sealing mileage by up to 100%.

KRM Tank Cleaner and Sealer
Formerly Kreem, now KRM: Recommended for older gas tanks which are rusty or dirty on the inside. Tank prep A & B remove corrosion and prepare the surface for the KRM Sealer. The Sealer cures hairline cracks (not holes!) and its tough white skin permanently seals the tank and permanently protects it against rust. One bottle contains enough sealer for tanks up to 13 liters capacity.
