Narrow Sportster Gas Tanks
Item №
35-369
net price
208.55 €
VAT
Germany (19%)
39.62 €
Price incl. VAT
248.17 €
62
ready for immediate delivery from our Würzburg, Germany warehouse

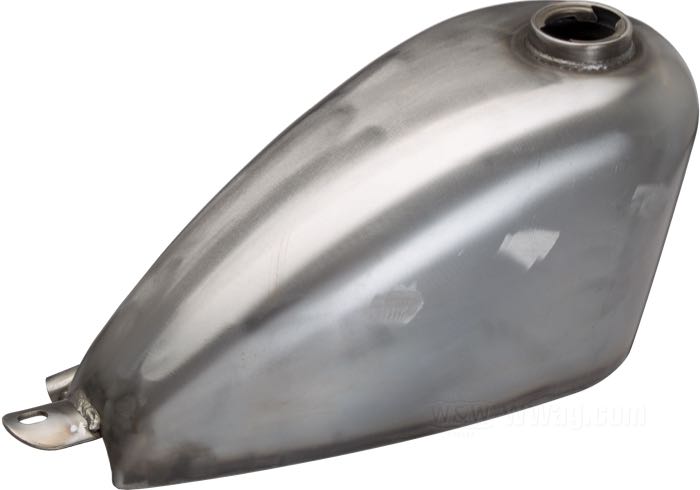

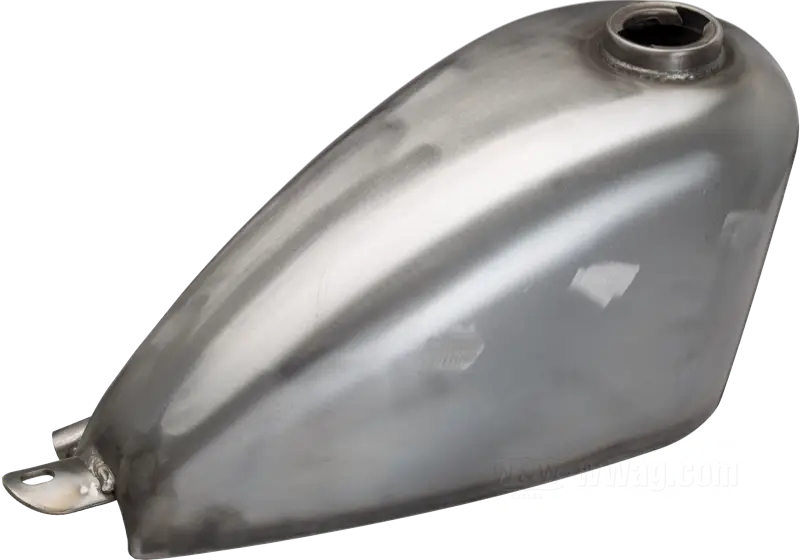

- Gas tank »Narrow Sportster«
- steel
- volume: 6 l
- required gas cap: cam-style 1955-1982
- required petcock: 1/4” NPT
- gross weight: 3.05 kg
Narrow and sleek gas tank whose design derives from early Sportster gas tanks. Features a flat tunnel, making it ideal for Chopper conversions
All gas tanks by W&W Cycles are delivered unpainted and unsealed. Before the paint job and final installation please consider the following:
- We consistently receive tight gas tanks from the manufacturers, both Custom and OEM replacements.
- Problems mostly occur during or after installation. Hence, before a pressure test and before painting - a probationary tensionless installation is highly recommended. Any leverage on the tank mounts spells trouble. Better use our selection of small parts.
- To avoid corrosion always fill your tank to the max during longer downtimes or seal it on the inside.
Accessories:
Prism Fuel Valves 1966-1974
These small petcocks fit direct to either a 1/4" or 3/8" NPT bung on your gas tank. This keeps your gas tank looking very clean. They feature a 5/16" diameter hose barb on one end and a fuel filter on the other. The manufacturer recommends 1/4" ID fuel line for a snug, leak proof fit. Rotating the cylindrical piece with the two grooves is how the fuel is toggled on and off. No reserve. Length measured without hose barb and filter.
OEM Style 1955-1972 Gas Caps
The design of these gas caps matches the original caps from the years of manufacture 1955-1972. From 1965, the left side was equipped with a non-vented gas cap to prevent overflow. This also fits older models and all aftermarket tanks.
OEM Style 1973-1982 Gas Caps
Replacement gas caps with the design of OEM caps as used from 1973-1982. Fat Bob tanks use one vented right side cap and one non-vented left side cap. The vented version fits pre-73 models, too.
See also:
Electroline Style Headlights
Faithful reproductions of the rectangular Electroline headlights which were poular in the 1960s and 1970s on choppers. Cast from aluminum, with top fin and grooves, just like the originals.
Bates Light-Bars
Born as a spotlight but used on Choppers as Custom headlight since the 1960’s, sometimes even two of them. The timeless rectangular design makes it look right at home with all kinds of forks and handlebar shapes.
Fork British High Handlebars
Get your bike that slim sixties styling with these narrow handlebars made by the Japanese company Fork. Due to their narrow design these handlebars do not work with common riser set-ups but require the special Fork riser clamp.
Helix Oil and Fuel Lines
Fuel hose sold by the meter, made from polyurethane with a Shore A hardness of 85. This PU offers exceptional flexibility, high abrasion resistance, and resistance to mineral oil, gasoline, and other hydrocarbons — unfortunately, it is not particularly resistant to ethanol. For this reason, the hose is suitable only for carburetor fuel containing a maximum of 10% ethanol.
