Narrow Single Flange Front Hub 1974-77-Type
Narrow Single Flange Front Hub 1974-77-Type
Item №
26-599
net price
217.75 €
VAT
Germany (19%)
41.37 €
Price incl. VAT
259.12 €
11
ready for immediate delivery from our Würzburg, Germany warehouse

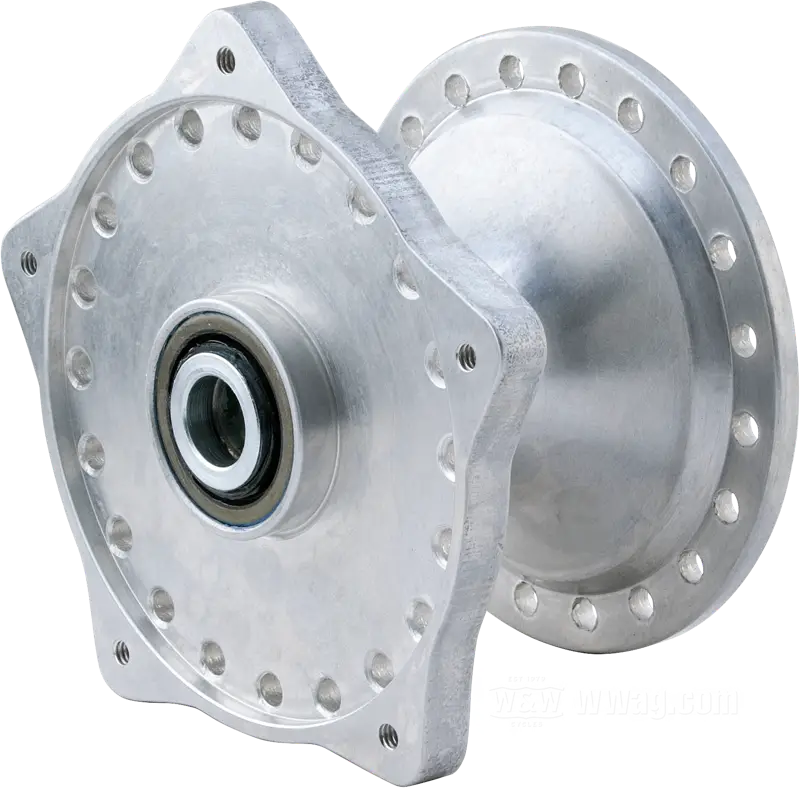

- Front hub »Narrow«
- fits XL and FX 1974-1977
- aluminum, tumble polished
- single flange 1/4”-20 threads
- matching axle Ø: 3/4 ”
- with all internal parts
- replaces Harley-Davidson part number HD 43600-74
- gross weight: 1.78 kg
When installing wheels and hubs it is important to check the position in the fork or frame/swingarm and to align brake rotors, calipers, sprocket/pulley accordingly. For this purpose we offer a range of bushings and spacers.
Spare parts:
Accessories:
See also:
Bates Reducer Bushings 19→17 mm
When working with a 17 mm wheel axle in a 19 mm environment these reducer bushings are very useful. Can be inserted in wheel bearings, Springer fork rockers, chain tensioners, etc.
Front Wheels for Sportster and FX 1974-1977
Narrow front wheels with 40 spokes, suitable for Sportster and FX forks from Harley-Davidson models from 1974–1977. Left-side brake disc mount with a 147 mm bolt circle. Ready to install, centered, with wheel bearings for 17 mm axles.
