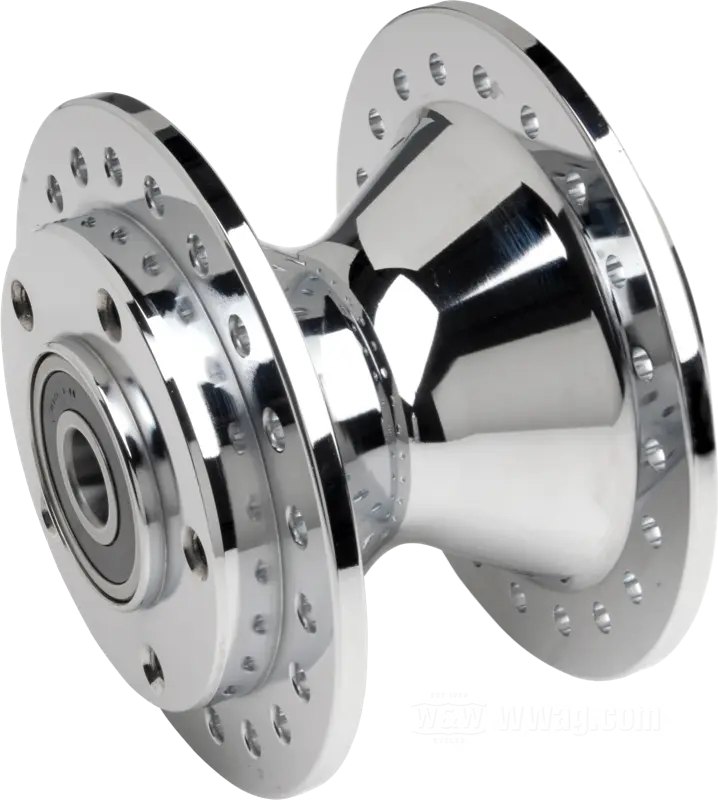

Narrow Dual Flange Front Hub 2000-07-Type

Narrow Dual Flange Front Hub 2000-07-Type

Front hub »Narrow«; fits Sportster R 2000-2007; aluminum, chrome-plated; Ø centering collar: 56 mm; dual flange 5/16”-18 threads; matching axle Ø: 3/4 ”; with all internal parts; replaces OEM HD 43629-00; gross weight: 2.5 kg
Front hub »Narrow«; fits Sportster R 2000-2007; aluminum, chrome-plated; Ø centering collar: 56 mm; dual flange 5/16”-18 threads; matching axle Ø: 3/4 ”; with all internal parts; replaces OEM HD 43629-00; gross weight: 2.5 kg
Inline Gallery Thumbnail
Inline Gallery Thumbnail
Price and stock:
Item №
26-411
Price incl. VAT
255.35 €
Available
4
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 40.77 € German VAT.
piece
Save to wish list
Facts
Description

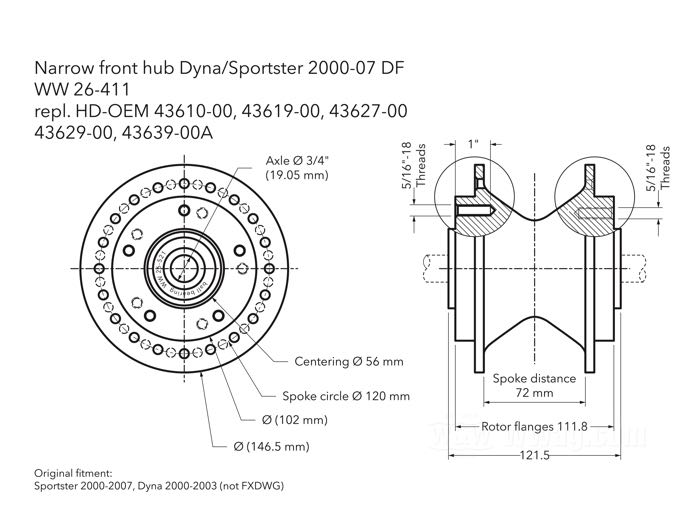

  • Front hub »Narrow«
  • fits Sportster R 2000-2007
  • aluminum, chrome-plated
  • Ø centering collar: 56 mm
  • dual flange 5/16”-18 threads
  • matching axle Ø: 3/4 ”
  • with all internal parts
  • replaces Harley-Davidson part number HD 43629-00
  • gross weight: 2.5 kg

Originally only used on Sportster R models with 19" rims, this double flange hub can be used with 16" and 21” rims also, for custom purposes.

When installing wheels and hubs it is important to check the position in the fork or frame/swingarm and to align brake rotors, calipers, sprocket/pulley accordingly. For this purpose we offer a range of bushings and spacers.

Spare parts:

26-521

26-521

Ball bearing; for Wheel hub; fits Touring rear: 2000-2001, Softail front: all 2000-2006 + FLSTSC 2007 + FLSTSB 2009-2011, Softail rear: 2000-2007, Dyna front: 2000-2003, Dyna rear: 2000-2005, Sportster front: 2000-2007, Sportster rear: 2000-2004; steel; tolerance class: ABEC 1; ID x OD: 19.1 x 52 mm; 21 mm thick; replaces OEM HD 9267; gross weight: 200 g
more …

Accessories:

Bates Brake Rotor Shims

Bates Brake Rotor Shims

Use one or several of these shims to establish the correct position or alignment.
more …
Bates Wheel Spacers - for 3/4” Axles

Bates Wheel Spacers - for 3/4” Axles

more …

See also:

Bates Reducer Bushings 19→17 mm

Bates Reducer Bushings 19→17 mm

When working with a 17 mm wheel axle in a 19 mm environment these reducer bushings are very useful. Can be inserted in wheel bearings, Springer fork rockers, chain tensioners, etc.
