Morris Magneto MM3 for Sidevalves and Sportsters →1970

Morris Magneto MM3 for Sidevalves and Sportsters →1970

Select variant:
13-272
cast finish
13-265
machined finish
Price and stock:
Item №
13-272
Price incl. VAT
2,317.47 €
Available
3
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 370.02 € German VAT.
kit
Save to wish list

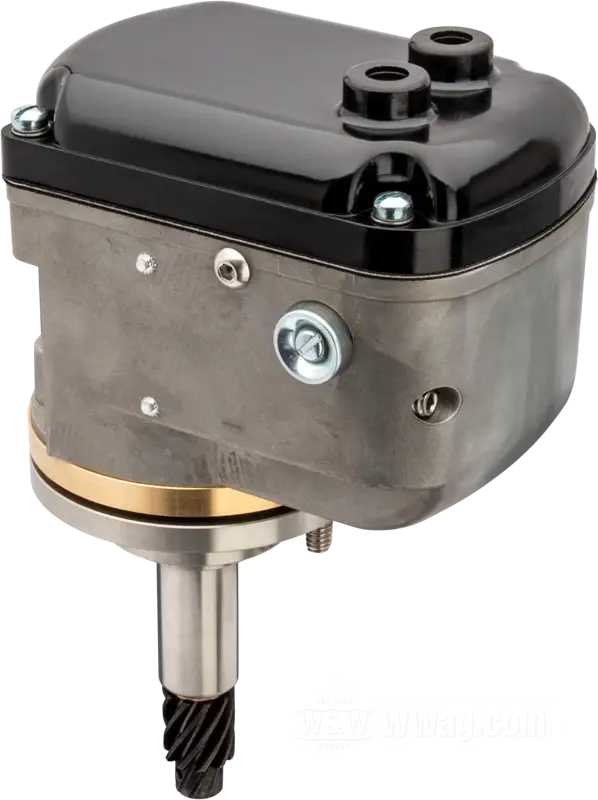

  • Magneto »MM3« by Morris Magneto
  • fits Flathead 1937→, all K Models and Sportster →1970
  • aluminum, cast finish
  • replaces Harley-Davidson part number HD 29505-67
  • USA
  • gross weight: 2.78 kg

The MM3-type magnetos are mounted upright in place of the stock distributor. They fit flathead models from 1937 onward and Sportsters from 1957 to 1970. Timing is set manually to full retard for starting, and — if the mounting bolts are properly adjusted — the magneto will automatically rotate to the advanced timing position after the engine fires.

Morris MM3 magnetos are a convenient replacement for well-aged original XLCH magnetos (29505-67).

Morris Magnetos

There aren’t many products in the Harley-Davidson aftermarket that have reached true cult status — but Morris Magnetos are definitely one of them. Magneto ignitions have a long-standing tradition in Milwaukee, used on both street bikes and racers. Even today, they remain the top choice when a bike builder values reliability, simplicity, and complete independence of the ignition system from the rest of the bike’s electrical setup.

Despite being fully mechanical, a properly tuned magneto is virtually wear-free. The current flowing through the points is much lower than in battery ignition systems, which puts less stress on the components — assuming correct setup and minimal maintenance, of course.

Sure, a magneto can’t compete with modern digital multi-spark engine management systems, and it won’t offer onboard diagnostics either. But for anyone looking for a dependable, powerful, and easy-to-use ignition setup, a magneto is still a solid choice. And let’s face it — a good magneto just looks seriously cool.

Battery ignitions rely on a charging system, a battery, and a coil to make spark — which means more wiring and more potential failure points. A magneto, on the other hand, packs everything into one compact housing and generates its own spark energy. Simple and effective.
