James Gaskets for Cylinder Head: Evolution 3-11/32 ” Bore
James Gaskets for Cylinder Head: Evolution 3-11/32 ” Bore
Price and stock:
Item №
55-392
Price incl. VAT
25.78 €
Available
18
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 4.12 € German VAT.

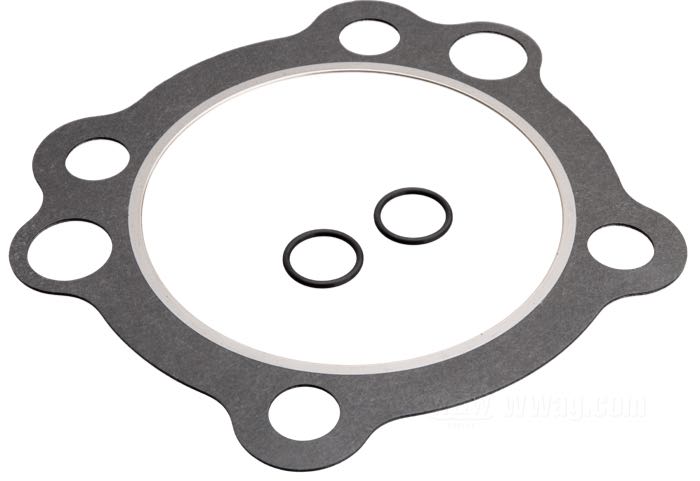

- Gasket »Firering« by James Gaskets
- for Cylinder head
- fits Sportster 1100 cc 1986-1987
- metal/graphite compound / PTFE
- nominal bore: 3-11/32 ”
- 0.045” thick
- with O-ring 0.071”
- replaces Harley-Davidson part number HD 16665-86A
- gross weight: 30 g
Thin Head Gaskets
An easy way to increase compression ratio a tad is to install thinnner head gaskets. A snappier exhaust note and a more efficient combustion can be expected.
Example: using a .030" head gasket in lieu of a .045" will increase compression by approx. 0.25 points. So if your CR with a .045" head gasket is 9.6, the static CR will increase to 9.85 with a .030" head gasket. Valve to piston clearance must be checked where appropriate.
Accessories:
57-103
O-Ring by James Gaskets; for Cylinder to Head Centering Dowels Big Twin Evolution, Sportster 1986-2007, Buell →2007, Engine Case Halves Centering Dowel Dyna and Touring 1999-2007, Softail 2000-2008, Check Valve XR1200X; rubber; ID x OD: 13.5 x 17.5 mm, 2 mm thick; replaces OEM HD 26432-76; gross weight: 10 g
57-072
O-Ring by James Gaskets; for Cylinder to Head Centering Dowels Big Twin Evolution, Sportster 1986-2007, Buell →2007, Engine Case Halves Centering Dowel Dyna and Touring 1999-2007, Softail 2000-2008, Check Valve XR1200X; rubber; ID x OD: 14.5 x 17.5 mm, 1.5 mm thick; replaces OEM HD 26432-76; gross weight: 2 g
