James Gaskets for Cylinder Base: Evolution 3-1/2” Bore
James Gaskets for Cylinder Base: Evolution 3-1/2” Bore
Select variant:
Price and stock:
Item №
57-415
net price
$4.33
Available
63
Ready for immediate delivery from our Würzburg, Germany warehouse
* Tax free shipping.
In 1983 the base gasket for the new Evolution cylinders was assigned the part# 16777-83, which was almost immediately replaced by 16777-83A. In 1986 the part# 16774-86 replaced the older 16777-83A gaskets and the part# 16777-83(A) disappeared from Harley litterature. The outline of the 16774-86 gasket underwent several changes during its span of use. But despite of the different outlines any of these gaskets fits a stock Evolution engine from 883 to 1340 cc.

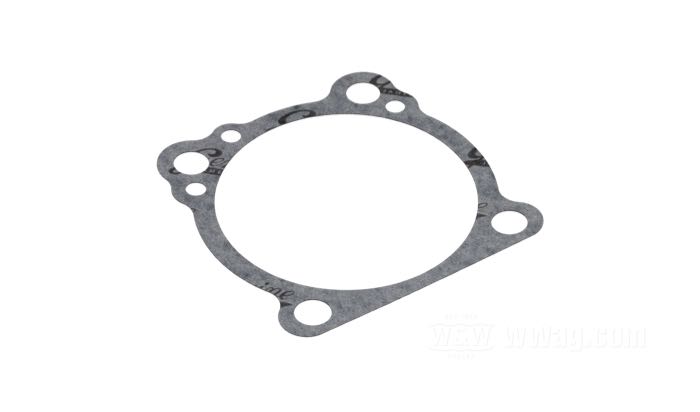

- Gasket »curved outline« by James Gaskets
- for Cylinder base
- fits Sportster 1986-2008 (exc. XL 1200 N 2007-2008), Big Twin 1984-1998, Softail 1999
- paper
- replaces Harley-Davidson part number HD 16774-86, and 16777-83
- gross weight: 10 g
