James Gasket Kits for Top End: Evolution Sportster
James Gasket Kits for Top End: Evolution Sportster
Select variant:

fits Evo Sportster 883 and 1200 1986-1990; nominal bore: 3 ” / 3-1/2 ”; replaces OEM HD 17032-86


fits Sportster 883/1200 1991-2003; nominal bore: 3 ” / 3-1/2 ”; replaces OEM HD 17032-91

fits Sportster 2004-2020; nominal bore: 3 ” / 3-1/2 ”; replaces OEM HD 17049-04

fits Sportster 1200 1988-1990; MLS; nominal bore: 3-1/2 ”; replaces OEM HD 17032-86

fits Sportster 1200 1991-2003; MLS; nominal bore: 3-1/2 ”; replaces OEM HD 17032-91

fits Sportster 883 and 1200 2007-2020; with 0.045” Firering head gaskets; nominal bore: 3 ” / 3-1/2 ”; replaces OEM HD 17049-04A
Price and stock:
Item №
55-101
Price incl. VAT
153.57 €
Available
7
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 24.52 € German VAT.

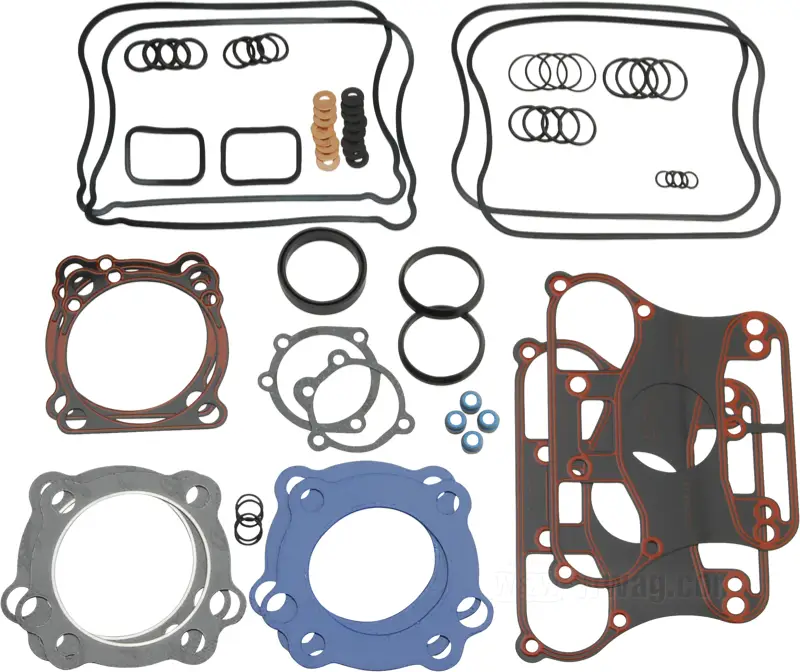

- Gasket kit by James Gaskets
- for Top end
- fits Evo Sportster 883 and 1200 1986-1990
- rubber / steel / silicone
- nominal bore: 3 ” / 3-1/2 ”
- replaces Harley-Davidson part number HD 17032-86
- USA
- gross weight: 260 g
Include all gaskets for top end overhaul.
Thin Head Gaskets
An easy way to increase compression ratio a tad is to install thinnner head gaskets. A snappier exhaust note and a more efficient combustion can be expected.
Example: using a .030" head gasket in lieu of a .045" will increase compression by approx. 0.25 points. So if your CR with a .045" head gasket is 9.6, the static CR will increase to 9.85 with a .030" head gasket. Valve to piston clearance must be checked where appropriate.
Spare parts:

57-731
Gasket by James Gaskets; for Rocker cover; fits Big Twin 1984-1998 (Softail →1999), Sportster 1986-2006; rubber; position: center; replaces OEM HD 17358-84A; gross weight: 20 g

57-010
O-Ring by James Gaskets; for Tachometer Plug XLCH 1962-1969, Tachometer Cable XLCH 1962-1965, Rocker Shaft left end XR1000 1983-1985, Tappet Guide mounting screw XL 1986-1990, Fittings/Oil line to pump Buell 2006-2009 and XR1200X 2009-2013, Fittings/ Coolant lines Touring Twin Cooled 2014→; rubber; ID x OD: 9.1 x 12.7 mm, 1.8 mm thick; replaces OEM HD 11110; gross weight: 6 g

57-424
Gasket »curved outline« by James Gaskets; for Cylinder base; fits Sportster 1986-2008 (exc. XL 1200 N 2007-2008), Big Twin 1984-1998, Softail 1999; rubberized steel with silicone seal; replaces OEM HD 16774-86, and 16777-83; gross weight: 30 g

57-788
Gasket by James Gaskets; for Rocker cover / Cylinder head; fits Big Twin 1984-1998 (Softail →1999), Sportster 1986-2020; rubberized steel / silicone; replaces OEM HD 16800-84A, 16778-84, and 16779-84; gross weight: 80 g

57-768
Seal washer by James Gaskets; for external oil filters Big Twins 1949-1965; primary oil level control Sportster 1971-1976; rocker cover screws Big Twin 1984-1998 (Softail →1999), Sportster 1986-2008, and Buell 1995-2008; copper; ID x OD: 6.75 x 15.9 mm, 0.85 mm thick; replaces OEM HD 63858-49; gross weight: 2 g

55-391
Gasket »Firering« by James Gaskets; for Cylinder head; fits Sportster 883 cc 1986-2020; metal/graphite compound / PTFE; nominal bore: 3 ”; 0.045” thick; with O-ring 0.071”; replaces OEM HD 16664-86B; gross weight: 30 g

55-394
Gasket »Firering« by James Gaskets; for Cylinder head; fits Big Twin 1984-1998, Softail 1999, Sportster 1200 cc 1988-2020; metal/graphite compound; nominal bore: 3-1/2 ”; 0.062” thick; with O-rings 0.081”; replaces OEM HD 16770-84, and 16773-85; gross weight: 20 g

56-118
Gasket by James Gaskets; for Header pipe / Cylinder head; fits Evolution, Twin Cam and Milwaukee Eight Big Twins 1985→, Evolution Sportster 1986-2020; steel; ID x OD: 42 x 50 mm, 4.5 mm thick; replaces OEM HD 65324-83; gross weight: 4 g

56-906
O-Ring; for Pushrod covers; fits Sportster 1991-2020; rubber; position: top; ID x OD: 18.0 x 24.0 mm, 3.4 mm thick; replaces OEM HD 11190; gross weight: 2 g

57-032
O-Ring by James Gaskets; for Pushrod cover mid position Big Twin late 1979→, Sportster late 1979-1990, filler plug transmission Big Twin 1993-2006 (Dyna only →2005), engine oil dipstick cover top Dyna 1991-1998, front fork air control on valve assembly banjo Touring models 1987-1996; rubber; ID x OD: 17.5 x 22.5 mm, 2.5 mm thick; replaces OEM HD 11132; gross weight: 1 g

57-045
O-Ring; for Pushrod covers; fits Big Twin 1984→, Sportster 1986-1990; rubber; position: bottom; ID x OD: 21.5 x 26.8 mm, 2.6 mm thick; replaces OEM HD 11145; gross weight: 1 g

57-067
O-Ring by James Gaskets; for Tappet guide; fits Sportster 1986-1990; rubber; position: top; ID x OD: 25 x 30 mm, 2.5 mm thick; replaces OEM HD 11167A; gross weight: 10 g

57-068
O-Ring by James Gaskets; for Tappet guide; fits Sportster 1986-1990; rubber; position: bottom; ID x OD: 25 x 28.6 mm, 1.8 mm thick; replaces OEM HD 11168A; gross weight: 10 g

57-072
O-Ring by James Gaskets; for Cylinder to Head Centering Dowels Big Twin Evolution, Sportster 1986-2007, Buell →2007, Engine Case Halves Centering Dowel Dyna and Touring 1999-2007, Softail 2000-2008, Check Valve XR1200X; rubber; ID x OD: 14.5 x 17.5 mm, 1.5 mm thick; replaces OEM HD 26432-76; gross weight: 2 g

57-098
Gasket by James Gaskets; for Manifold / Constant velocity carburetor; fits Big Twin 1990-2006, Sportster 1988-2006; rubber; replaces OEM HD 27002-89; gross weight: 10 g

57-530
Seal ring; for Manifold flange / Cylinder head; fits Big Twin 1990-2016 (Softail →2017), Sportster 1986-2020; rubber; inner Ø: 45.50 mm; replaces OEM HD 26995-86B, and 26995-86C; gross weight: 10 g

57-560
Gasket by James Gaskets; for Air cleaner / Butterfly carburetor; fits Big Twin 1976-1989, Sportster 1976-1987; paper; replaces OEM HD 29058-77; gross weight: 1 g

57-561
Gasket by James Gaskets; for Air cleaner / Butterfly carburetor / Induction body; fits Big Twin US models 1990-1998 (Softail →1999), Big Twin HDI models 1990-1994, Sportster US models 1988-2003, Sportster Swiss models 1995-1996, Buell 1996-2002; paper; replaces OEM HD 29059-88; gross weight: 10 g

57-687
Seal washer by James Gaskets; for external oil filters Big Twins 1949-1965; primary oil level control Sportster 1971-1976; rocker cover screws Big Twin 1984-1998 (Softail →1999), Sportster 1986-2008, and Buell 1995-2008; fiber; ID x OD: 6 x 16 mm, 1 mm thick; replaces OEM HD 63858-49; gross weight: 1 g

57-725
Gasket by James Gaskets; for Rocker cover; fits Sportster 1986-1990; rubber; position: outer / bottom; replaces OEM HD 17353-86A; gross weight: 50 g

57-727
Gasket by James Gaskets; for Rocker cover; fits Sportster 1986-1990; rubber; position: top / outer; replaces OEM HD 17354-86A; gross weight: 10 g
