James Gasket Kits for Top End: Evolution Sportster
James Gasket Kits for Top End: Evolution Sportster
Select variant:
fits Sportster 883 and 1200 2007-2020; with 0.045” Firering head gaskets; nominal bore: 3 ” / 3-1/2 ”; replaces OEM HD 17049-04A
Item №
55-123
net price
137.14 €
VAT
Germany (19%)
26.06 €
Price incl. VAT
163.20 €
4
ready for immediate delivery from our Würzburg, Germany warehouse

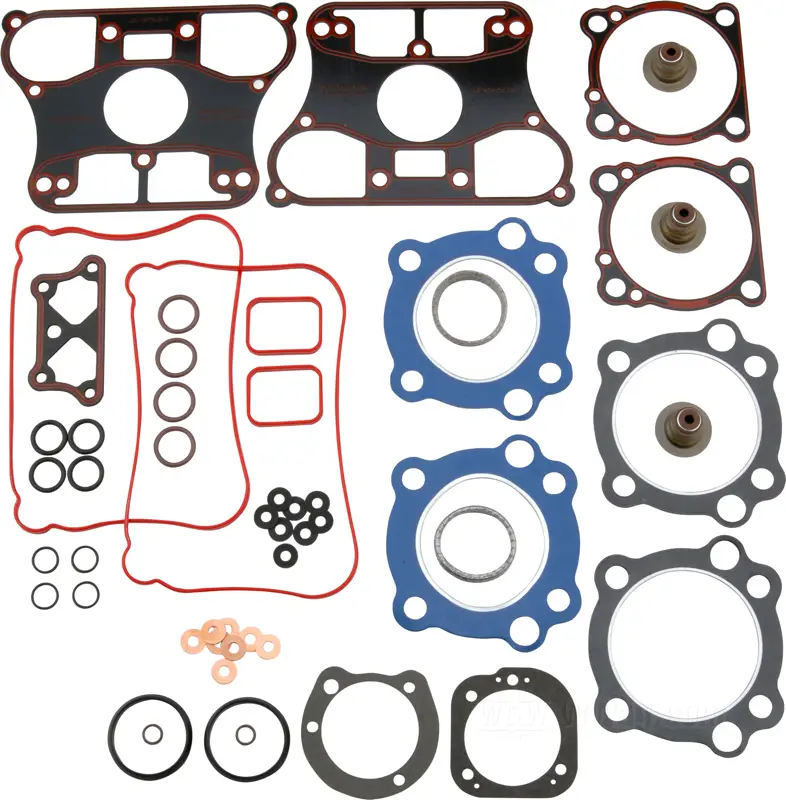

- Gasket kit by James Gaskets
- for Top end
- fits Sportster 883 and 1200 2007-2020
- with 0.045” Firering head gaskets
- rubber / steel / silicone
- nominal bore: 3 ” / 3-1/2 ”
- replaces Harley-Davidson part number HD 17049-04A
- USA
- gross weight: 397 g
Include all gaskets for top end overhaul.
Thin Head Gaskets
An easy way to increase compression ratio a tad is to install thinnner head gaskets. A snappier exhaust note and a more efficient combustion can be expected.
Example: using a .030" head gasket in lieu of a .045" will increase compression by approx. 0.25 points. So if your CR with a .045" head gasket is 9.6, the static CR will increase to 9.85 with a .030" head gasket. Valve to piston clearance must be checked where appropriate.
