James Gasket Kits for Engines: Sportster 1957-1985



James Gasket Kits for Engines: Sportster 1957-1985

Item №

55-011

Price incl. VAT

170.35 €

Available

47



Ready for immediate delivery from our Würzburg, Germany warehouse

The price includes 27.20 € German VAT.

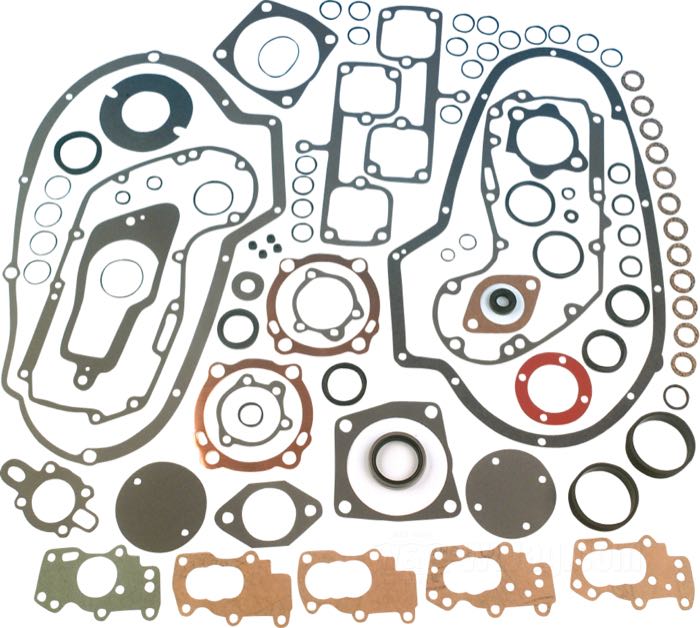

Gasket kit by James Gaskets
for Engine
fits Sportster Late 1973-1985
paper / rubber / steel / copper
replaces Harley-Davidson part number HD 17024-71
USA
gross weight: 480 g

Each complete kit contains all necessary gaskets for the complete overhaul of one engine.

Spare parts:

55-390

Gasket by James Gaskets; for Cylinder head; fits 1000cc Sportster 1973-1985; low compression; PTFE; 1.07 mm thick; replaces OEM HD 16769-73; gross weight: 18 g

57-091

Gasket by James Gaskets; for Oil line / Rocker housings; fits Big Twin 1963-1984, Sportster 1957-1985; rubber; replaces OEM HD 63529-57; gross weight: 1 g

57-410

Gasket by James Gaskets; for Cylinder head; fits 1000cc Sportster 1973-1985; standard compression; copper; 0.41 mm thick; replaces OEM HD 16769-73; gross weight: 12 g

55-387

Gasket by James Gaskets; for Cylinder head; fits 1000cc Sportster 1979-1982; low compression; copper; 1.12 mm thick; replaces OEM HD 16769-82; gross weight: 30 g

55-389

Gasket by James Gaskets; for Cylinder head; fits 1000cc Sportster 1972-early 1973; copper; 0.41 mm thick; replaces OEM HD 16769-72A; gross weight: 10 g

56-915

O-Ring by James Gaskets; for Idle adjuster screw; fits Big Twin and Sportster 1979-1982; rubber; ID x OD: 2.8 x 4.4 mm, 0.8 mm thick ; replaces OEM HD 27892-78; gross weight: 10 g

57-000

O-Ring by James Gaskets; for Tappet guide; fits Sportster 1957-1985; rubber; ID x OD: 23.4 x 27 mm, 1.8 mm thick ; replaces OEM HD 11100; gross weight: 10 g

57-001

O-Ring by James Gaskets; for Rocker Shafts XL 1957-1985, XLCR 1000, BT 1966-1984, Lower Pushrod Cover XL 1979-1985, Upper Pushrod Cover BT late 1979-early 1981 and XL 1979-1983, Cylinder base fitting FLT late 1981, Starter deflector plate 1965-1985 (BT 4 speed), Oil Line to oil cooler connector VRSC 2004→, kicker shaft BT 1936-1985; rubber; ID x OD: 19 x 24 mm, 2.5 mm thick; replaces OEM HD 11101; gross weight: 1 g

57-005

O-Ring by James Gaskets; for Oil filter wing nut BT 1966-1982, XL 1966-1978, Tappet Screen Plug BT late 1970-1984, Check Valve Plug BT late 1978-1998(9), Drain Plugs Dyna 1992→ and Touring 1993→, Drain Plug Transmission and oil tank Softail 2000→, Drain Plug primary housing Dyna 2006→, Softail and Touring 2007→, Drain Plug primary housing and transmission Sportster/Buell 1977→, under fork damper: XL and FX 1971-1972; rubber; ID x OD: 10.8 x 14.4 mm, 1.8 mm thick; replaces OEM HD 11105; gross weight: 1 g

57-006

O-Ring by James Gaskets; for Filler plug; for primary filler + inspection cap; fits Sportster 1971-early 1978; rubber; ID x OD: 37.7 x 41 mm, 1.8 mm thick; replaces OEM HD 11106; gross weight: 10 g

57-016

O-Ring by James Gaskets; for starter housing; fits Sportster 1981-2020; rubber; ID x OD: 43 x 48 mm, 2.5 mm thick ; replaces OEM HD 11116; gross weight: 10 g

57-032

O-Ring by James Gaskets; for Pushrod cover mid position Big Twin late 1979→, Sportster late 1979-1990, filler plug transmission Big Twin 1993-2006 (Dyna only →2005), engine oil dipstick cover top Dyna 1991-1998, front fork air control on valve assembly banjo Touring models 1987-1996; rubber; ID x OD: 17.5 x 22.5 mm, 2.5 mm thick; replaces OEM HD 11132; gross weight: 1 g

57-039

O-Ring by James Gaskets; for Filler plug; for primary filler and inspection cap; fits Sportster late 1978-1990; rubber; ID x OD: 35 x 40 mm, 2.5 mm thick; replaces OEM HD 11139; gross weight: 1 g

57-057

O-Ring by James Gaskets; for Pushrod cover top position Big Twin 1984-1998 (Softail →1999), Sportster 1984-1990, oil pump Twin Cam 88; rubber; ID x OD: 18 x 24 mm, 3.5 mm thick; replaces OEM HD 11157; gross weight: 10 g

57-072

O-Ring by James Gaskets; for Cylinder to Head Centering Dowels Big Twin Evolution, Sportster 1986-2007, Buell →2007, Engine Case Halves Centering Dowel Dyna and Touring 1999-2007, Softail 2000-2008, Check Valve XR1200X; rubber; ID x OD: 14.5 x 17.5 mm, 1.5 mm thick; replaces OEM HD 26432-76; gross weight: 2 g

57-073

O-Ring; for oil pump check valve Sportster 1977-1985, oil filter check valve Sportster 1986-1990; rubber; ID x OD: 9.5 x 14.5 mm, 2.5 mm thick; replaces OEM HD 26433-77; gross weight: 10 g

57-074

O-Ring; for Oil pump cover; fits Sportster 1977-1990; rubber; replaces OEM HD 26434-76A; gross weight: 10 g

57-124

Oil seal; for Cam shaft / Gear cover; fits Sportster 1971-2003, Buell →2007; steel / rubber; replaces OEM HD 11124; gross weight: 70 g

57-136

Oil seal by James Gaskets; for Oil pump drive shaft / Oil pump plate; fits Sportster 1977-1982; steel / rubber; replaces OEM HD 12036; gross weight: 10 g

57-137

Oil seal by James Gaskets; for Oil pump drive shaft / Oil pump plate; fits Sportster 1983-1990; steel / rubber; replaces OEM HD 12036A; gross weight: 10 g

57-149

Oil seal by James Gaskets; for Main shaft; fits Sportster late 1984-1990; steel / rubber; replaces OEM HD 12049; gross weight: 10 g

57-162

Oil seal; for Pinion shaft / Gear cover; fits XR 750 1975→; steel / rubber; replaces OEM HD 25535-74R; gross weight: 10 g

57-163

Oil seal; for Oil pump drive shaft / Oil pump body; fits Big Twin 1968-1998 (Softail →1999), Sportster 1958-1976; steel / rubber; replaces OEM HD 26227-58; gross weight: 10 g

57-165

Oil seal; for Bearing / Armature / Generator; fits XL 1982-1984; 58/65A drive gear side; steel / rubber; replaces OEM HD 29911-82; gross weight: 10 g

57-167

Oil seal by James Gaskets; for Shifter shaft; fits Model K 1952-1956, Sportster 1957-1985; steel / rubber; replaces OEM HD 34035-52; gross weight: 10 g

57-168

Oil seal by James Gaskets; for Sprocket shaft / Crankcases; fits Sportster 1977-2003; steel / rubber; replaces OEM HD 35151-74; gross weight: 10 g

57-245

Oil seal; for Bearing / Armature / Generator; fits Big Twins 1946-1969, 750 cc 1946-1973, Sportster →1981; 32E and 58/65A drive gear side, Servi Car alternator drive; steel / rubber; replaces OEM HD 30145-46; gross weight: 10 g

57-301

Oil seal; for main shaft model K and Sportster 1952-early 1984, sprocket shaft model K and Sportster 1954-early 1976; steel / rubber; replaces OEM HD 35151-52; gross weight: 10 g

57-309

Gasket by James Gaskets; for main shaft seal retainer; fits Sportster 1957-early 1984; fiber compound; replaces OEM HD 35169-52; gross weight: 10 g

57-413

Gasket by James Gaskets; for Cylinder base; fits Sportster 1972-1985; paper; replaces OEM HD 16774-72; gross weight: 5 g

57-442

Gasket by James Gaskets; for Rocker cover; fits Sportster 1957-1985; paper; replaces OEM HD 17536-70; gross weight: 5 g

57-443

Gasket by James Gaskets; for Generator; fits Big Twin 1958-1969, Sportster 1958-1984; to engine; paper; replaces OEM HD 30143-58; gross weight: 1 g

57-450

Gasket by James Gaskets; for Pushrod covers; fits OHV Big Twin 1936-early 1979, Sportster 1957-early 1979; cork, small; replaces OEM HD 17955-36; gross weight: 1 g

57-455

Gasket kit »Tec Blue«; for Pushrod covers; fits Knucklehead 1936-1947, Sportster 1957-1979; silicone, blue; replaces OEM HD 17955-36; gross weight: 20 g

57-478

Gasket by James Gaskets; for Oil screen; fits 45 cui/750cc 1957→, Sportster 1957-1976; cork; replaces OEM HD 24978-57; gross weight: 10 g

57-480

Gasket by James Gaskets; for Gear cover; fits Model K 1952-1956, Sportster 1957-1981; paper; replaces OEM HD 25224-52A; gross weight: 7 g

57-487

Gasket by James Gaskets; for Gear cover; fits Sportster 1982-1985; paper; replaces OEM HD 25263-81; gross weight: 10 g

57-506

Gasket by James Gaskets; for Oil pump/crankcase; fits K-Model 1954-1956, Sportster 1957-1976; paper; replaces OEM HD 26256-52; gross weight: 10 g

57-515

Gasket by James Gaskets; for Inner oil pump cover; fits XR 750; paper; replaces OEM HD 26259-72R; gross weight: 10 g

57-520

Gasket by James Gaskets; for Oil pump body / Crankcases; fits Sportster 1977-1990; paper; replaces OEM HD 26495-75; gross weight: 3 g

57-531

Gasket by James Gaskets; for Butterfly carburetor / Manifold; fits Big Twin 1971-1975 and early 1985, Sportster 1972-early 1976 and 1979-1980; paper; inner Ø: 42 mm; replaces OEM HD 27023-71; gross weight: 1 g

57-560

Gasket by James Gaskets; for Air cleaner / Butterfly carburetor; fits Big Twin 1976-1989, Sportster 1976-1987; paper; replaces OEM HD 29058-77; gross weight: 1 g

57-583

Gasket by James Gaskets; for Block-off plate / Inner primary housing; fits XL 1970-1980; steel / rubber; replaces OEM HD 31461-70; gross weight: 10 g

57-584

Gasket by James Gaskets; for Starter housing; fits XLH 1967-1980; paper; replaces OEM HD 31471-67A; gross weight: 90 g

57-585

Gasket by James Gaskets; for Starter motor; fits Sportster 1967-1980; paper; replaces OEM HD 31488-77; gross weight: 10 g

57-586

Gasket by James Gaskets; for Starter motor; fits Sportster 1981-2020; paper; replaces OEM HD 31488-81; gross weight: 10 g

57-589

Gasket by James Gaskets; for Timer cover; fits Shovelhead 1970-1979, Sportster 1971-1979; paper; replaces OEM HD 32591-70; gross weight: 10 g

57-590

Gasket by James Gaskets; for Timer cover; fits Shovelhead 1979-1984, Evo Big Twin 1984-1996, Sportster 1979-1996; paper; replaces OEM HD 32591-80; gross weight: 5 g

57-605

Gasket by James Gaskets; for Stud / Footpeg mounts; fits Sportster 1977-1990; between engine case and outer primary cover on footpeg boss; paper; replaces OEM HD 34624-77; gross weight: 1 g

57-630

Gasket by James Gaskets; for Outer primary chain guard; fits Sportster 1977-1990; paper; replaces OEM HD 34955-75; gross weight: 20 g

57-687

Seal washer by James Gaskets; for external oil filters Big Twins 1949-1965; primary oil level control Sportster 1971-1976; rocker cover screws Big Twin 1984-1998 (Softail →1999), Sportster 1986-2008, and Buell 1995-2008; fiber; ID x OD: 6 x 16 mm, 1 mm thick; replaces OEM HD 63858-49; gross weight: 1 g

57-703

Gasket by James Gaskets; for Tachometer drive; fits model K 1952-1956, Sportster 1957-1979; paper; replaces OEM HD 67142-52; gross weight: 1 g

Accessories:

56-200

Gasket by Kibblewhite Precision Machining; for valve stem; fits Sportster 1957-1985 intake; steel / rubber; USA; gross weight: 10 g

56-201

Gasket by Kibblewhite Precision Machining; for valve stem; fits Sportster 1957-1985 exhaust; steel / rubber; USA; gross weight: 10 g
