James Gasket Kits for Engines: Evolution Big Twin
Select variant:

»Standard«; fits Evo Big Twin 1984-1991; replaces OEM HD 17035-83B


»Standard«; fits Evo Big Twin 1992-1999; replaces OEM HD 17041-92A

»MLS«; fits Evo Big Twin 1984-1991; replaces OEM HD 17035-83

»MLS«; fits Evo Big Twin 1992-1999; replaces OEM HD 17041-92
Price and stock:
Item №
55-065
net price
$166.07
Available
36
Ready for immediate delivery from our Würzburg, Germany warehouse
* Tax free shipping.

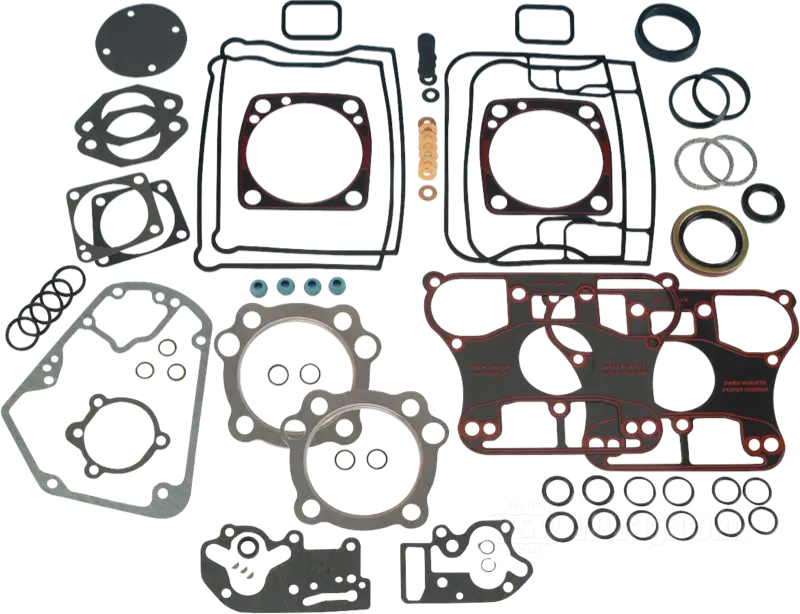

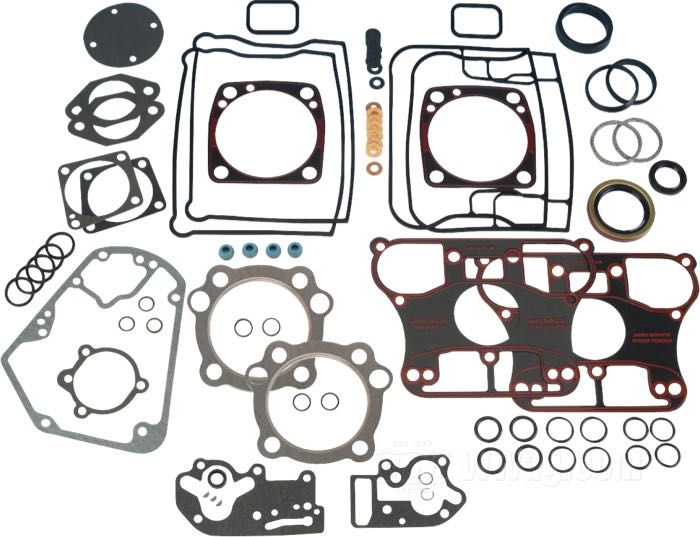

- Gasket kit »Standard« by James Gaskets
- for Engine
- fits Evo Big Twin 1984-1991
- rubber / steel / silicone
- replaces Harley-Davidson part number HD 17035-83B
- USA
- gross weight: 320 g
Each complete kit contains all necessary gaskets for the complete overhaul of one engine.
Spare parts:

57-731
Gasket by James Gaskets; for Rocker cover; fits Big Twin 1984-1998 (Softail →1999), Sportster 1986-2006; rubber; position: center; replaces OEM HD 17358-84A; gross weight: 20 g

57-785
Gasket by James Gaskets; for Air cleaner / Butterfly carburetor / Induction body; fits Big Twin US models 1990-1998 (Softail →1999), Big Twin HDI models 1990-1994, Sportster US models 1988-2003, Sportster Swiss models 1995-1996, Buell 1996-2002; rubberized steel; replaces OEM HD 29059-88; gross weight: 10 g

57-103
O-Ring by James Gaskets; for Cylinder to Head Centering Dowels Big Twin Evolution, Sportster 1986-2007, Buell →2007, Engine Case Halves Centering Dowel Dyna and Touring 1999-2007, Softail 2000-2008, Check Valve XR1200X; rubber; ID x OD: 13.5 x 17.5 mm, 2 mm thick; replaces OEM HD 26432-76; gross weight: 10 g

57-767
Seal washer by James Gaskets; for external oil filters Big Twins 1949-1965; primary oil level control Sportster 1971-1976; rocker cover screws Big Twin 1984-1998 (Softail →1999), Sportster 1986-2008, and Buell 1995-2008; steel / neoprene; ID x OD: 6.5 x 14.9 mm, 1.8 mm thick; replaces OEM HD 63858-49; gross weight: 10 g

57-768
Seal washer by James Gaskets; for external oil filters Big Twins 1949-1965; primary oil level control Sportster 1971-1976; rocker cover screws Big Twin 1984-1998 (Softail →1999), Sportster 1986-2008, and Buell 1995-2008; copper; ID x OD: 6.75 x 15.9 mm, 0.85 mm thick; replaces OEM HD 63858-49; gross weight: 2 g

55-394
Gasket »Firering« by James Gaskets; for Cylinder head; fits Big Twin 1984-1998, Softail 1999, Sportster 1200 cc 1988-2020; metal/graphite compound; nominal bore: 3-1/2 ”; 0.062” thick; with O-rings 0.081”; replaces OEM HD 16770-84, and 16773-85; gross weight: 20 g

56-118
Gasket by James Gaskets; for Header pipe / Cylinder head; fits Evolution, Twin Cam and Milwaukee Eight Big Twins 1985→, Evolution Sportster 1986-2020; steel; ID x OD: 42 x 50 mm, 4.5 mm thick; replaces OEM HD 65324-83; gross weight: 4 g

56-912
O-Ring; for accelerator jet; fits Big Twin and Sportster 1990-1992; rubber; ID x OD: 4.6 x 7 mm, 1.2 mm thick ; replaces OEM HD 27121-89; gross weight: 10 g

56-913
O-Ring; for Drain plug / Float bowl; fits Big Twin and Sportster 1988-1991; rubber; ID x OD: 4.6 x 7 mm, 1.2 mm thick ; replaces OEM HD 27157-89; gross weight: 10 g

57-005
O-Ring by James Gaskets; for Oil filter wing nut BT 1966-1982, XL 1966-1978, Tappet Screen Plug BT late 1970-1984, Check Valve Plug BT late 1978-1998(9), Drain Plugs Dyna 1992→ and Touring 1993→, Drain Plug Transmission and oil tank Softail 2000→, Drain Plug primary housing Dyna 2006→, Softail and Touring 2007→, Drain Plug primary housing and transmission Sportster/Buell 1977→, under fork damper: XL and FX 1971-1972; rubber; ID x OD: 10.8 x 14.4 mm, 1.8 mm thick; replaces OEM HD 11105; gross weight: 1 g

57-032
O-Ring by James Gaskets; for Pushrod cover mid position Big Twin late 1979→, Sportster late 1979-1990, filler plug transmission Big Twin 1993-2006 (Dyna only →2005), engine oil dipstick cover top Dyna 1991-1998, front fork air control on valve assembly banjo Touring models 1987-1996; rubber; ID x OD: 17.5 x 22.5 mm, 2.5 mm thick; replaces OEM HD 11132; gross weight: 1 g

57-045
O-Ring; for Pushrod covers; fits Big Twin 1984→, Sportster 1986-1990; rubber; position: bottom; ID x OD: 21.5 x 26.8 mm, 2.6 mm thick; replaces OEM HD 11145; gross weight: 1 g

57-057
O-Ring by James Gaskets; for Pushrod cover top position Big Twin 1984-1998 (Softail →1999), Sportster 1984-1990, oil pump Twin Cam 88; rubber; ID x OD: 18 x 24 mm, 3.5 mm thick; replaces OEM HD 11157; gross weight: 10 g

57-095
O-Ring by James Gaskets; for Float bowl; fits Sportster 1988-91, Sportster 1992 (HDI & Swiss), Big Twin 1990-1991; rubber; replaces OEM HD 27577-88; gross weight: 10 g

57-098
Gasket by James Gaskets; for Manifold / Constant velocity carburetor; fits Big Twin 1990-2006, Sportster 1988-2006; rubber; replaces OEM HD 27002-89; gross weight: 10 g

57-126
Oil seal by James Gaskets; for Sprocket shaft / Crankcases; fits Big Twin 1970-1998 (Softail →1999); fits also S&S 1936-1999 Big Twin cases; steel / rubber; replaces OEM HD 12026B; gross weight: 20 g

57-163
Oil seal; for Oil pump drive shaft / Oil pump body; fits Big Twin 1968-1998 (Softail →1999), Sportster 1958-1976; steel / rubber; replaces OEM HD 26227-58; gross weight: 10 g

57-186
Oil seal by James Gaskets; for Cam shaft / Gear cover; fits Big Twin 1970-1998 (Softail →1999); steel / rubber; replaces OEM HD 83162-51; gross weight: 10 g

57-422
Gasket »large outline« by James Gaskets; for Cylinder base; fits Sportster 1986-2008 (exc. XL 1200 N 2007-2008), Big Twin 1984-1998, Softail 1999; paper; replaces OEM HD 16774-86, and 16777-83; gross weight: 2 g

57-437
Gasket by James Gaskets; for Rocker cover; fits Big Twin 1984-1986; cork; position: outer / bottom; replaces OEM HD 17355-84; gross weight: 10 g

57-438
Gasket by James Gaskets; for Rocker cover; fits Big Twin 1984-1986; cork; position: top / outer; replaces OEM HD 17356-84; gross weight: 20 g

57-439
Gasket by James Gaskets; for Rocker cover; fits Big Twin 1984-1998 (Softail →1999), Sportster 1986-2006; cork; position: center; replaces OEM HD 17358-84; gross weight: 10 g

57-484
Gasket by James Gaskets; for Gear cover; fits Shovelhead 1970-1984, Evolution Big Twin 1984-1992; paper, black; replaces OEM HD 25225-70B; gross weight: 10 g

57-491
Gasket by James Gaskets; for Gear cover; fits Shovelhead 1970-1984, Evolution Big Twin 1984-1992; paper / silicone; replaces OEM HD 25225-70; gross weight: 10 g

57-517
Gasket by James Gaskets; for Oil pump body; fits Big Twin 1981-1991; paper; replaces OEM HD 26273-80B; gross weight: 2 g

57-519
Gasket by James Gaskets; for Oil pump cover; fits Big Twin 1981-1991; paper; replaces OEM HD 26276-80A; gross weight: 1 g

57-530
Seal ring; for Manifold flange / Cylinder head; fits Big Twin 1990-2016 (Softail →2017), Sportster 1986-2020; rubber; inner Ø: 45.50 mm; replaces OEM HD 26995-86B, and 26995-86C; gross weight: 10 g

57-560
Gasket by James Gaskets; for Air cleaner / Butterfly carburetor; fits Big Twin 1976-1989, Sportster 1976-1987; paper; replaces OEM HD 29058-77; gross weight: 1 g

57-562
Gasket by James Gaskets; for compliance fittings; fits Big Twin 1984-1989; paper; replaces OEM HD 29242-83; gross weight: 2 g

57-590
Gasket by James Gaskets; for Timer cover; fits Shovelhead 1979-1984, Evo Big Twin 1984-1996, Sportster 1979-1996; paper; replaces OEM HD 32591-80; gross weight: 5 g

57-687
Seal washer by James Gaskets; for external oil filters Big Twins 1949-1965; primary oil level control Sportster 1971-1976; rocker cover screws Big Twin 1984-1998 (Softail →1999), Sportster 1986-2008, and Buell 1995-2008; fiber; ID x OD: 6 x 16 mm, 1 mm thick; replaces OEM HD 63858-49; gross weight: 1 g

57-729
Gasket by James Gaskets; for Rocker cover; fits Big Twin 1987-1991; rubber; position: outer / bottom; replaces OEM HD 17355-84A; gross weight: 10 g

57-730
Gasket by James Gaskets; for Rocker cover; fits Big Twin 1987-1991; rubber; position: top / outer; replaces OEM HD 17356-84A; gross weight: 10 g

57-780
Gasket by James Gaskets; for Tappet guide; fits Panhead, Shovelhead, Evolution; rear; paper; 0.77 mm thick; replaces OEM HD 18633-48C; gross weight: 10 g

57-782
Gasket by James Gaskets; for Tappet guide; fits Panhead, Shovelhead, Evolution; front; paper; 0.77 mm thick; replaces OEM HD 18634-48B; gross weight: 10 g
