James Gasket Kits for Engines: Shovelhead 1966-1984



James Gasket Kits for Engines: Shovelhead 1966-1984

Item №

55-056

Price incl. VAT

197.30 €

Available

53



Ready for immediate delivery from our Würzburg, Germany warehouse

The price includes 31.50 € German VAT.

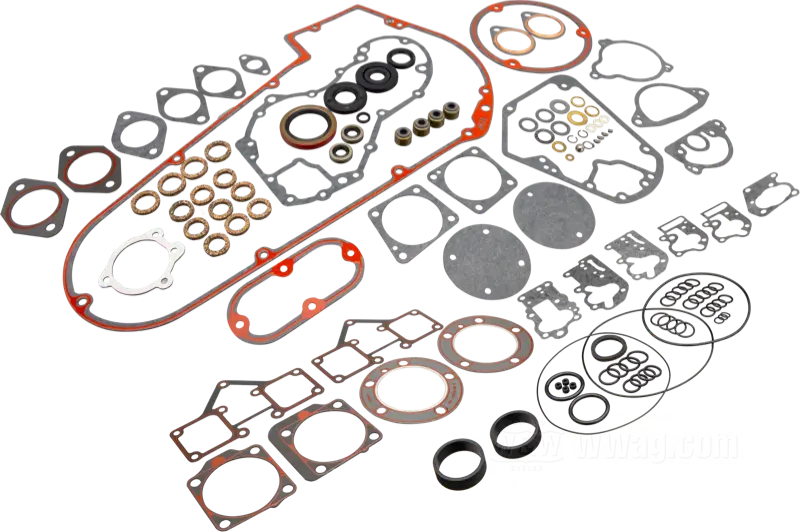

Each complete kit contains all necessary gaskets for the complete overhaul of one engine.

Gasket kit »Deluxe« by James Gaskets
for Engine
fits Shovelhead 1966-1984
paper / rubber / steel, with Firering head gasket and silicone bead primary gasket
USA
gross weight: 710 g

Spare parts:

56-120

Gasket; for interconnect tube; fits Sportster 1982-2003, FXR 1982-1994, Softail 1990-2007; stainless steel; replaces OEM HD 65781-82; gross weight: 5 g

57-091

Gasket by James Gaskets; for Oil line / Rocker housings; fits Big Twin 1963-1984, Sportster 1957-1985; rubber; replaces OEM HD 63529-57; gross weight: 1 g

57-493

Gasket by James Gaskets; for Gear cover; fits Shovelhead 1970-1984, Evolution Big Twin 1984-1992; steel / silicone; replaces OEM HD 25225-70; gross weight: 20 g

57-766

Gasket by James Gaskets; for Rocker cover; fits Shovelhead 1966-1984; steel, silicone-coated, metal reinforced; replaces OEM HD 17540-69A; USA; gross weight: 20 g

55-400

Gasket »Firering« by James Gaskets; for Cylinder head; fits Shovelhead 1966-1984; metal/graphite compound / silicone; nominal bore: 3-7/16 ” / 3-1/2 ”; 0.046” thick; replaces OEM HD 16770-66B; gross weight: 60 g

56-110

Gasket by James Gaskets; for Header pipe / Cylinder head; fits Big Twin 1966-1983, FL(H) 1984; copper; replaces OEM HD 65834-68A; gross weight: 4 g

56-115

Gasket »Firering« by James Gaskets; for Header pipe / Cylinder head; fits Big Twin 1966-1983, FL(H) 1984; copper / fiber compound, Carrier gasket with integrated copper seal ring; replaces OEM HD 65834-68A; gross weight: 10 g

56-915

O-Ring by James Gaskets; for Idle adjuster screw; fits Big Twin and Sportster 1979-1982; rubber; ID x OD: 2.8 x 4.4 mm, 0.8 mm thick ; replaces OEM HD 27892-78; gross weight: 10 g

57-001

O-Ring by James Gaskets; for Rocker Shafts XL 1957-1985, XLCR 1000, BT 1966-1984, Lower Pushrod Cover XL 1979-1985, Upper Pushrod Cover BT late 1979-early 1981 and XL 1979-1983, Cylinder base fitting FLT late 1981, Starter deflector plate 1965-1985 (BT 4 speed), Oil Line to oil cooler connector VRSC 2004→, kicker shaft BT 1936-1985; rubber; ID x OD: 19 x 24 mm, 2.5 mm thick; replaces OEM HD 11101; gross weight: 1 g

57-005

O-Ring by James Gaskets; for Oil filter wing nut BT 1966-1982, XL 1966-1978, Tappet Screen Plug BT late 1970-1984, Check Valve Plug BT late 1978-1998(9), Drain Plugs Dyna 1992→ and Touring 1993→, Drain Plug Transmission and oil tank Softail 2000→, Drain Plug primary housing Dyna 2006→, Softail and Touring 2007→, Drain Plug primary housing and transmission Sportster/Buell 1977→, under fork damper: XL and FX 1971-1972; rubber; ID x OD: 10.8 x 14.4 mm, 1.8 mm thick; replaces OEM HD 11105; gross weight: 1 g

57-007

O-Ring by James Gaskets; for Butterfly carburetor / Adapter / Manifold; fits Big Twin 1967-1970, Sportster 1966-1971; rubber; ID x OD: 48.4 x 53.4 mm, 2.5 mm thick ; replaces OEM HD 11107; gross weight: 10 g

57-018

Gasket by James Gaskets; for Pushrod covers; fits Big Twin late 1981-1984; rubber, quad seal; position: top; replaces OEM HD 11118; gross weight: 1 g

57-032

O-Ring by James Gaskets; for Pushrod cover mid position Big Twin late 1979→, Sportster late 1979-1990, filler plug transmission Big Twin 1993-2006 (Dyna only →2005), engine oil dipstick cover top Dyna 1991-1998, front fork air control on valve assembly banjo Touring models 1987-1996; rubber; ID x OD: 17.5 x 22.5 mm, 2.5 mm thick; replaces OEM HD 11132; gross weight: 1 g

57-033

Gasket by James Gaskets; for Pushrod covers; fits Big Twin late 1979-1984; rubber, quad seal; position: bottom; replaces OEM HD 11133A; gross weight: 1 g

57-075

O-Ring by James Gaskets; for Manifold clamps; fits Big Twin 1955-1978, Sportster 1957-early 1978; also used on: starter engine solenoid Big Twin 1980–84; rubber; ID x OD: 41 x 52.5 mm, 5.6 mm thick; replaces OEM HD 27060-55; gross weight: 4 g

57-102

Oil seal; for Bearing / Armature / Generator; for 58/65A brush side; fits Big Twin 1958-1969, Sportster 1958-1981; steel / rubber; replaces OEM HD 12002; gross weight: 6 g

57-126

Oil seal by James Gaskets; for Sprocket shaft / Crankcases; fits Big Twin 1970-1998 (Softail →1999); fits also S&S 1936-1999 Big Twin cases; steel / rubber; replaces OEM HD 12026B; gross weight: 20 g

57-163

Oil seal; for Oil pump drive shaft / Oil pump body; fits Big Twin 1968-1998 (Softail →1999), Sportster 1958-1976; steel / rubber; replaces OEM HD 26227-58; gross weight: 10 g

57-164

Gasket by James Gaskets; for Shaft / Ignition system; fits XLCH 1958-early 1965, Big Twin 1965-1969; rubber; replaces OEM HD 29603-48; gross weight: 1 g

57-186

Oil seal by James Gaskets; for Cam shaft / Gear cover; fits Big Twin 1970-1998 (Softail →1999); steel / rubber; replaces OEM HD 83162-51; gross weight: 10 g

57-245

Oil seal; for Bearing / Armature / Generator; fits Big Twins 1946-1969, 750 cc 1946-1973, Sportster →1981; 32E and 58/65A drive gear side, Servi Car alternator drive; steel / rubber; replaces OEM HD 30145-46; gross weight: 10 g

57-419

Gasket by James Gaskets; for Cylinder base; fits Panhead and Shovelhead 1963-1984; front; paper; nominal bore: 3-7/16 ” / 3-1/2 ”; replaces OEM HD 16776-63; gross weight: 10 g

57-421

Gasket by James Gaskets; for Cylinder base; fits Panhead and Shovelhead 1963-1984; rear; paper; nominal bore: 3-7/16 ” / 3-1/2 ”; replaces OEM HD 16777-63; gross weight: 10 g

57-443

Gasket by James Gaskets; for Generator; fits Big Twin 1958-1969, Sportster 1958-1984; to engine; paper; replaces OEM HD 30143-58; gross weight: 1 g

57-446

Gasket by James Gaskets; for Rocker cover; fits Shovelhead 1966-1984; paper; replaces OEM HD 17540-69A; USA; gross weight: 10 g

57-450

Gasket by James Gaskets; for Pushrod covers; fits OHV Big Twin 1936-early 1979, Sportster 1957-early 1979; cork, small; replaces OEM HD 17955-36; gross weight: 1 g

57-451

Gasket by James Gaskets; for Pushrod covers; fits Big Twin 1948 - early 1979; cork, large; position: bottom; replaces OEM HD 17955-48; gross weight: 1 g

57-454

Gasket kit »Tec Blue«; for Pushrod covers; fits Panhead 1948-1965, Shovelhead 1966-early 1979; silicone, blue; replaces OEM HD 17955-36, and 17955-48; gross weight: 20 g

57-460

Gasket by James Gaskets; for Valve guide; fits Panhead 1951-1965, model K 1952-1956, Shovelhead 1966-1969; paper; replaces OEM HD 18196-51; gross weight: 10 g

57-482

Gasket by James Gaskets; for Gear cover; fits Panhead 1948-1965, Shovelhead 1966-1969; paper; replaces OEM HD 25225-36C; gross weight: 10 g

57-484

Gasket by James Gaskets; for Gear cover; fits Shovelhead 1970-1984, Evolution Big Twin 1984-1992; paper, black; replaces OEM HD 25225-70B; gross weight: 10 g

57-491

Gasket by James Gaskets; for Gear cover; fits Shovelhead 1970-1984, Evolution Big Twin 1984-1992; paper / silicone; replaces OEM HD 25225-70; gross weight: 10 g

57-500

Seal washer; for Plug / Relief valve; fits Big Twin 1954-1980; also used on: oil tank drain plug Softail 1984-1985; fiber; ID x OD: 12.9 x 23.8 mm, 1.0 mm thick; replaces OEM HD 26231-78; gross weight: 1 g

57-502

Gasket by James Gaskets; for Oil pump body; fits Big Twin OHV 1941-1967; paper; replaces OEM HD 589-41, and 26245-41; gross weight: 1 g

57-504

Gasket by James Gaskets; for Oil pump body; fits Big Twin 1968-1980; plastic; replaces OEM HD 26246-68A; gross weight: 10 g

57-508

Gasket by James Gaskets; for Oil pump cover; fits Big Twin late 1950-1967; paper; replaces OEM HD 26257-50A; gross weight: 1 g

57-511

Gasket by James Gaskets; for Oil pump cover; fits Big Twin 1968-1980; plastic; replaces OEM HD 26258-68B; gross weight: 1 g

57-512

Gasket by James Gaskets; for Oil pump cover; fits Big Twin 1968-1980; paper; replaces OEM HD 26258-68C; gross weight: 1 g

57-516

Gasket by James Gaskets; for Oil pump body; fits Big Twin 1981-1991; plastic; replaces OEM HD 26273-80A; gross weight: 10 g

57-517

Gasket by James Gaskets; for Oil pump body; fits Big Twin 1981-1991; paper; replaces OEM HD 26273-80B; gross weight: 2 g

57-519

Gasket by James Gaskets; for Oil pump cover; fits Big Twin 1981-1991; paper; replaces OEM HD 26276-80A; gross weight: 1 g

57-531

Gasket by James Gaskets; for Butterfly carburetor / Manifold; fits Big Twin 1971-1975 and early 1985, Sportster 1972-early 1976 and 1979-1980; paper; inner Ø: 42 mm; replaces OEM HD 27023-71; gross weight: 1 g

57-532

Gasket by James Gaskets; for Spacer / Manifold; fits Big Twin early 1978; paper; inner Ø: 45 mm; replaces OEM HD 27077-78; gross weight: 10 g

57-553

Gasket by James Gaskets; for Butterfly carburetor / Manifold; fits Sportster 1957-1965, Big Twin 1966; paper; replaces OEM HD 27410-57; gross weight: 10 g

57-560

Gasket by James Gaskets; for Air cleaner / Butterfly carburetor; fits Big Twin 1976-1989, Sportster 1976-1987; paper; replaces OEM HD 29058-77; gross weight: 1 g

57-589

Gasket by James Gaskets; for Timer cover; fits Shovelhead 1970-1979, Sportster 1971-1979; paper; replaces OEM HD 32591-70; gross weight: 10 g

57-684

Seal washer by James Gaskets; for Drain plug / Transmission case; fits model K and Sportster 1954-1967, Big Twin 1958- 1986; Oil screen Big Twin 1966-1969; brass; replaces OEM HD 62702-52; gross weight: 1 g

57-732

Gasket by James Gaskets; for Rocker cover; fits Shovelhead 1966-1984; paper, silicone-coated; replaces OEM HD 17540-69A; USA; gross weight: 20 g

57-780

Gasket by James Gaskets; for Tappet guide; fits Panhead, Shovelhead, Evolution; rear; paper; 0.77 mm thick; replaces OEM HD 18633-48C; gross weight: 10 g

57-782

Gasket by James Gaskets; for Tappet guide; fits Panhead, Shovelhead, Evolution; front; paper; 0.77 mm thick; replaces OEM HD 18634-48B; gross weight: 10 g

Accessories:

56-202

Gasket by Kibblewhite Precision Machining; for valve stem; fits Big Twin 1948-1979; steel / rubber; USA; gross weight: 10 g

56-204

Gasket by Kibblewhite Precision Machining; for valve stem; fits Shovelhead 1980-1984; steel / rubber; replaces OEM HD 18000-81; USA; gross weight: 10 g
