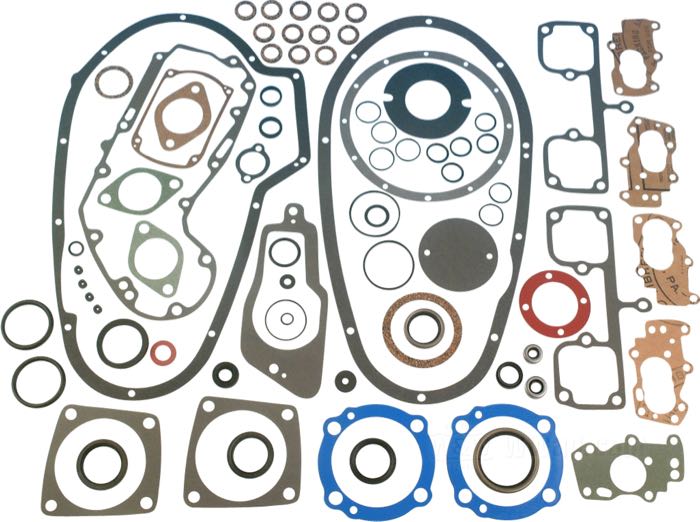

James Gasket Kits for Engines: Sportster 1957-1985
Select variant:

fits Sportster 1957-1971; replaces OEM HD 17024-71


fits XR 1000 1983-1984

fits Sportster Late 1973-1985; replaces OEM HD 17024-71
Price and stock:
Item №
55-006
Price incl. VAT
170.35 €
Available
6
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 27.20 € German VAT.
- Gasket kit by James Gaskets
- for Engine
- fits Sportster 1957-1971
- paper / rubber / steel / copper
- replaces Harley-Davidson part number HD 17024-71
- USA
- gross weight: 420 g
Each complete kit contains all necessary gaskets for the complete overhaul of one engine.
Spare parts:

57-091
Gasket by James Gaskets; for Oil line / Rocker housings; fits Big Twin 1963-1984, Sportster 1957-1985; rubber; replaces OEM HD 63529-57; gross weight: 1 g

57-010
O-Ring by James Gaskets; for Tachometer Plug XLCH 1962-1969, Tachometer Cable XLCH 1962-1965, Rocker Shaft left end XR1000 1983-1985, Tappet Guide mounting screw XL 1986-1990, Fittings/Oil line to pump Buell 2006-2009 and XR1200X 2009-2013, Fittings/ Coolant lines Touring Twin Cooled 2014→; rubber; ID x OD: 9.1 x 12.7 mm, 1.8 mm thick; replaces OEM HD 11110; gross weight: 6 g

55-388
Gasket by James Gaskets; for Cylinder head; fits 900cc Sportster 1957-1971; PTFE; 1.02 mm thick; replaces OEM HD 16769-57; gross weight: 10 g

57-000
O-Ring by James Gaskets; for Tappet guide; fits Sportster 1957-1985; rubber; ID x OD: 23.4 x 27 mm, 1.8 mm thick ; replaces OEM HD 11100; gross weight: 10 g

57-001
O-Ring by James Gaskets; for Rocker Shafts XL 1957-1985, XLCR 1000, BT 1966-1984, Lower Pushrod Cover XL 1979-1985, Upper Pushrod Cover BT late 1979-early 1981 and XL 1979-1983, Cylinder base fitting FLT late 1981, Starter deflector plate 1965-1985 (BT 4 speed), Oil Line to oil cooler connector VRSC 2004→, kicker shaft BT 1936-1985; rubber; ID x OD: 19 x 24 mm, 2.5 mm thick; replaces OEM HD 11101; gross weight: 1 g

57-002
O-Ring; for Shaft / Ignition system; fits Sportster 1966-1969; rubber; ID x OD: 21.7 x 25.5 mm, 1.9 mm thick ; replaces OEM HD 11102; gross weight: 10 g

57-003
O-Ring by James Gaskets; for clutch gear; fits Sportster late 1957-1969; rubber; ID x OD: 20.2 x 24 mm, 1.9 mm thick; replaces OEM HD 11103; gross weight: 10 g

57-019
O-Ring by James Gaskets; for clutch gear; fits Sportster 1967-1970; rubber; ID x OD: 24.7 x 31.7 mm, 3.5 mm thick; replaces OEM HD 11119; gross weight: 10 g

57-070
O-Ring; for Valve spring cover; fits model K 1952-1956; rubber; position: top; ID x OD: 28 x 35 mm, 3.5 mm thick ; replaces OEM HD 18266-52; gross weight: 10 g

57-075
O-Ring by James Gaskets; for Manifold clamps; fits Big Twin 1955-1978, Sportster 1957-early 1978; also used on: starter engine solenoid Big Twin 1980–84; rubber; ID x OD: 41 x 52.5 mm, 5.6 mm thick; replaces OEM HD 27060-55; gross weight: 4 g

57-102
Oil seal; for Bearing / Armature / Generator; for 58/65A brush side; fits Big Twin 1958-1969, Sportster 1958-1981; steel / rubber; replaces OEM HD 12002; gross weight: 6 g

57-121
Oil seal by James Gaskets; for clutch gear; fits Ironhead Sportster 1967-1970; steel / rubber; replaces OEM HD 12021B; gross weight: 10 g

57-123
Oil seal; for Shaft / Magneto; for gear case; fits XLCH 1968-1969; steel / rubber; ID x OD: 18 x 26 mm; replaces OEM HD 12023; gross weight: 10 g

57-163
Oil seal; for Oil pump drive shaft / Oil pump body; fits Big Twin 1968-1998 (Softail →1999), Sportster 1958-1976; steel / rubber; replaces OEM HD 26227-58; gross weight: 10 g

57-167
Oil seal by James Gaskets; for Shifter shaft; fits Model K 1952-1956, Sportster 1957-1985; steel / rubber; replaces OEM HD 34035-52; gross weight: 10 g

57-171
Seal ring by James Gaskets; for Pushrod / Clutch; fits model K and Sportster 1954-1970; rubber; replaces OEM HD 37339-53; gross weight: 10 g

57-245
Oil seal; for Bearing / Armature / Generator; fits Big Twins 1946-1969, 750 cc 1946-1973, Sportster →1981; 32E and 58/65A drive gear side, Servi Car alternator drive; steel / rubber; replaces OEM HD 30145-46; gross weight: 10 g

57-301
Oil seal; for main shaft model K and Sportster 1952-early 1984, sprocket shaft model K and Sportster 1954-early 1976; steel / rubber; replaces OEM HD 35151-52; gross weight: 10 g

57-309
Gasket by James Gaskets; for main shaft seal retainer; fits Sportster 1957-early 1984; fiber compound; replaces OEM HD 35169-52; gross weight: 10 g

57-331
Oil seal; for clutch gear; fits Model K 1956, Sportster 1957-1959; steel / rubber; replaces OEM HD 37531-56B; gross weight: 10 g

57-340
Oil seal by James Gaskets; for Clutch hub; fits Sportster 1957-1966 (XLCH →1969); rubber / steel; replaces OEM HD 37740-57; gross weight: 9 g

57-341
Oil seal by James Gaskets; for Clutch hub; fits Sportster 1967-1970 (XLCH only 1970), maindrive gear FL 1980-1981and FX 1979-1981; rubber / steel; ID x OD: 46 x 61 mm; replaces OEM HD 37741-67; gross weight: 10 g

57-412
Gasket by James Gaskets; for Cylinder base; fits Sportster 1957-1971; paper; replaces OEM HD 16774-57; gross weight: 10 g

57-443
Gasket by James Gaskets; for Generator; fits Big Twin 1958-1969, Sportster 1958-1984; to engine; paper; replaces OEM HD 30143-58; gross weight: 1 g

57-450
Gasket by James Gaskets; for Pushrod covers; fits OHV Big Twin 1936-early 1979, Sportster 1957-early 1979; cork, small; replaces OEM HD 17955-36; gross weight: 1 g

57-455
Gasket kit »Tec Blue«; for Pushrod covers; fits Knucklehead 1936-1947, Sportster 1957-1979; silicone, blue; replaces OEM HD 17955-36; gross weight: 20 g

57-478
Gasket by James Gaskets; for Oil screen; fits 45 cui/750cc 1957→, Sportster 1957-1976; cork; replaces OEM HD 24978-57; gross weight: 10 g

57-480
Gasket by James Gaskets; for Gear cover; fits Model K 1952-1956, Sportster 1957-1981; paper; replaces OEM HD 25224-52A; gross weight: 7 g

57-506
Gasket by James Gaskets; for Oil pump/crankcase; fits K-Model 1954-1956, Sportster 1957-1976; paper; replaces OEM HD 26256-52; gross weight: 10 g

57-509
Gasket by James Gaskets; for Outer oil pump cover; fits K-Model 1952-1956, Sportster 1957-early 1962 and 1972-1976; paper; replaces OEM HD 26258-52; gross weight: 10 g

57-510
Gasket by James Gaskets; for Outer oil pump cover; fits Sportster late 1962-1971; paper; replaces OEM HD 26258-62; gross weight: 1 g

57-513
Gasket by James Gaskets; for Inner oil pump cover; fits K-Model 1952-1956, Sportster 1957-early 1962 and 1972-1976; paper; replaces OEM HD 26259-52; gross weight: 10 g

57-514
Gasket by James Gaskets; for Inner oil pump cover; fits Sportster late 1962-1971; paper; replaces OEM HD 26259-62; gross weight: 1 g

57-563
Gasket by James Gaskets; for Lid / Magneto; fits XLCH 1958-1969; fits also Morris and Hunt magnetos; paper; gross weight: 30 g

57-584
Gasket by James Gaskets; for Starter housing; fits XLH 1967-1980; paper; replaces OEM HD 31471-67A; gross weight: 90 g

57-585
Gasket by James Gaskets; for Starter motor; fits Sportster 1967-1980; paper; replaces OEM HD 31488-77; gross weight: 10 g

57-588
Gasket by James Gaskets; for Shaft / Ignition system; fits 45 cui/750cc 1937-1973, Big Twin Flathead 1937-1948, K and Sportster 1952-1964; paper; replaces OEM HD 32522-37; gross weight: 1 g

57-628
Gasket by James Gaskets; for Outer primary chain guard; fits model K and Sportster 1952-1966 (XLCH →1969); paper; replaces OEM HD 34952-52; gross weight: 20 g

57-629
Gasket by James Gaskets; for Outer primary chain guard; fits Sportster XLH 1967-1976 (XLCH 1970-1976); paper; replaces OEM HD 34955-67; gross weight: 10 g

57-639
Gasket by James Gaskets; for Cover / Clutch shell; fits model K and Sportster 1952-1970; paper; replaces OEM HD 37762-52; gross weight: 3 g

57-662
Gasket by James Gaskets; for inspection cover XLC(H) 1958-1969, Knucklehead 1936, all Big Twins 1937-1964, inner primary cover Knucklehead 1936, all Big Twins 1937-1954; cork; ID x OD: 61 x 77 mm, 3.3 mm thick ; replaces OEM HD 3811-36A, and 60567-36; gross weight: 10 g

57-666
Gasket by James Gaskets; for Solenoid / Starter motor; fits 4-speed Big Twin 1965-1982, 5-speed Big Twin 1980-1981, Sportster 1967-1980; foam rubber; replaces OEM HD 60645-65; gross weight: 10 g

57-684
Seal washer by James Gaskets; for Drain plug / Transmission case; fits model K and Sportster 1954-1967, Big Twin 1958- 1986; Oil screen Big Twin 1966-1969; brass; replaces OEM HD 62702-52; gross weight: 1 g
