'Hamburger' Drum Brake

'Hamburger' Drum Brake

Of Hamburgers, Bread Boxes and other Harley Specialties.

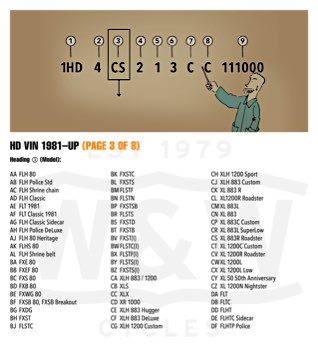

The world of Harley wrenching is awash with secret codes: let’s take the wacky Harley model codes such as FLSTSCl (spoiler: Softail Springer Classic). Or take the VIN numbers, the „Vehicle Identification Number“, essential to determinate year of build, model, and if frame and engine belong together. In addition there are the up to 8-digit, sometimes alphanumerical codes from parts catalogs, essential when buying on the Internet or at Swap Meets. Kudos to those who keep abreast of all this.

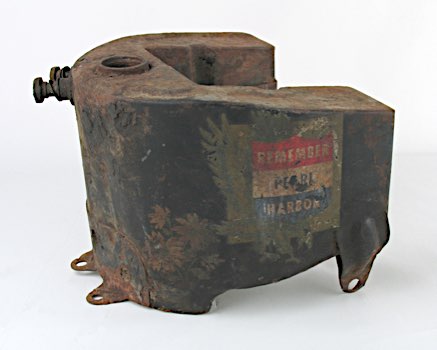

It’s not all bad news though: some parts do have affectionate names in addition to their numbers, so you can show your deep know-how at the next gathering round the campfire without having to memorize 24-digit numbers :). A classic in this respect is the "peanut" tank, or say, the "bread box" air filter (several versions of which exist). Don’t forget the "horseshoe" oil tank, the "pan" valve train covers for, ahem, Panheads, or the "trumpet" style mufflers to name a few.

Here’s a fresh addition to this list, right here in our shop:

Sizzling Hot on the Work Table: Hamburger Chinese Style

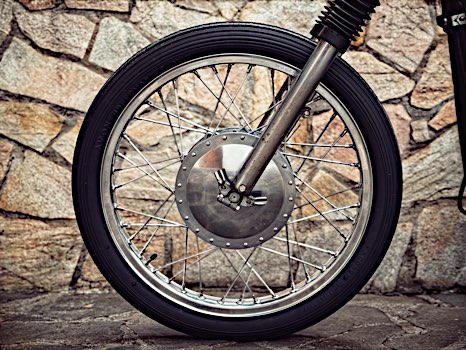

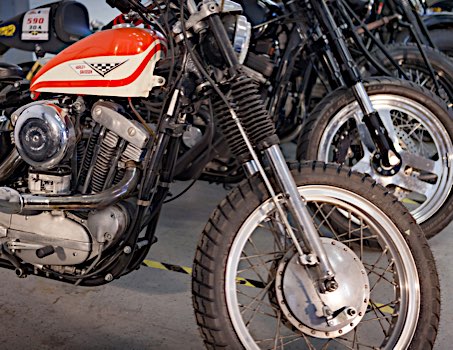

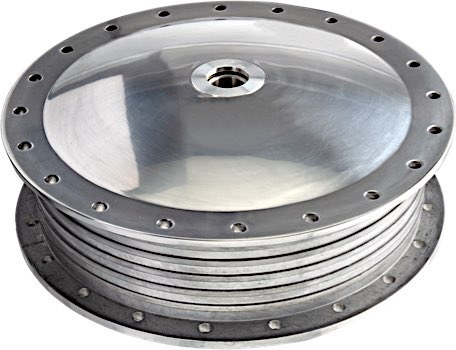

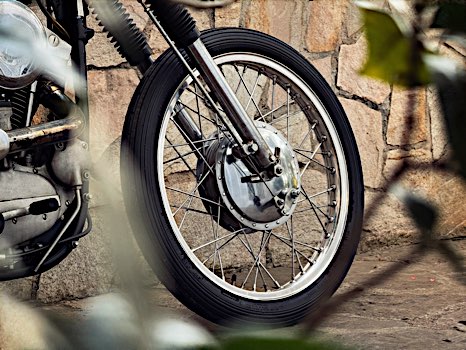

Calling a brake drum a hamburger may sound a little odd, but once you see it lying there on your workbench it all makes sense: the bulging body and the prominent flanges, together with the ribbed drum itself do indeed evoke a hamburger with salad and tomato oozing out quite nicely. Alas, finding one these days is much harder than the edible meat-on-bun version. Being the front brake on Sportsters from 1964 through 1972, and for FX 1971 through 1972 these front drums brakes are essential for serious restoration jobs or repairs, where the now 60 year old originals are starting to wear out of spec. Opting for the disc setups that superseded the drums is not an option for everyone. Being Ironhead (Sportster through 1985) afiçionados of long standing we’ve had components for these drums in our program since early on – but an all-in-one solution proved elusive.

Full Throttle to Perfection.

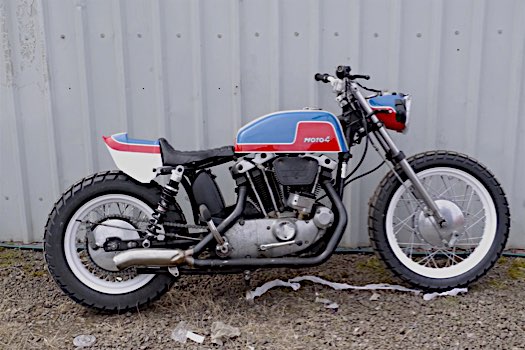

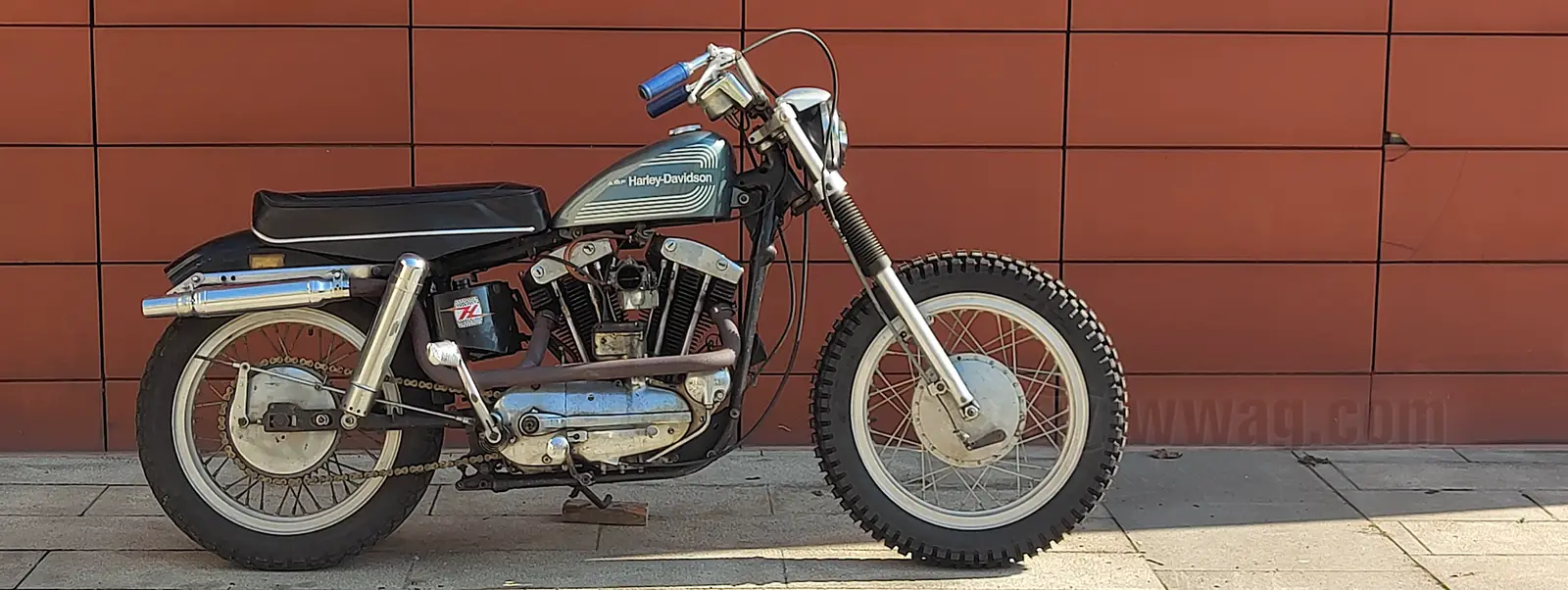

The beginning of the end of this quest was an e-Mail from China, offering to supply just such an all-in-one solution. We get a lot of spam mails, but this read kinda right and well thought through. It came from a China-based Ironhead fan, who is using the local talent to remanufacture true-to-spec parts for Harley classics. We thought, why not give it a try, and ordered a set. Once arrived at headquarters, we set it up in a fresh front wheel and installed it in our 1959 Sportster. A great looker, and also a great stopper, as we found to our delight. Even the jaded wrenchers in our garage were suitably impressed. Right. Popping over to China was the next step, to look at the guy and his operation. His name is Duan "DJ" Jing, he’s a Harley enthusiast, owning a couple of old Sportsters and enough know-how, guts and connections to do this in a legit way. We were convinced and placed a first order. Which has now arrived in our warehouse, and the first hamburgers Chinese style are now ready to serve.

IronheadChina Hamburger Drum Brakes
IronheadChina Hamburger Drum Brakes

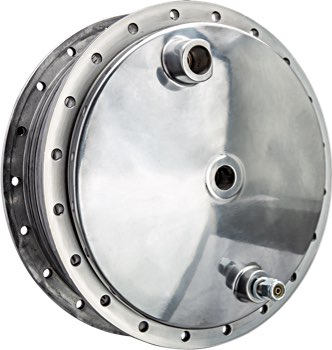

This is a high-quality reproduction of the Harley „Hamburger“ drum brake as originally mounted to XL 1964-1972 and early Super Glides. Nowadays original brakes are usually very difficult to find in good condition at an affordable price. These drum brakes made from die-cast aluminum are CNC precision-machined and in no way inferior to the originals in terms of quality and function.
more …

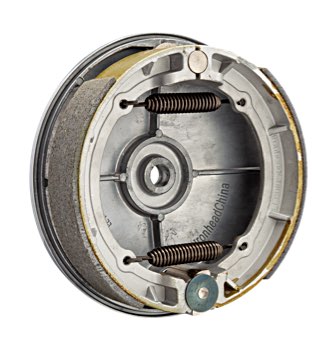

IronheadChina Brake Shoes for Hamburger Drum Brake
IronheadChina Brake Shoes for Hamburger Drum Brake
more …
Lowbrow P-Nut Gas Tanks
Lowbrow P-Nut Gas Tanks

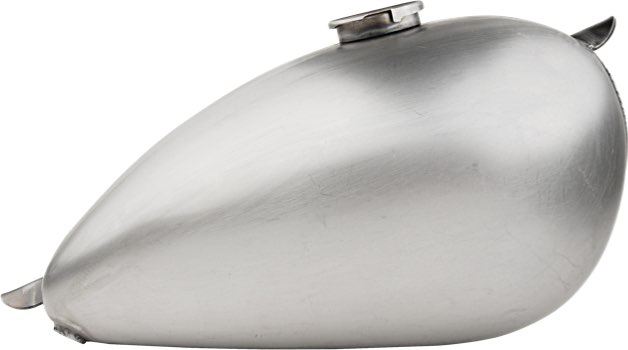

One great way to save money at the pump is to buy less at every fill-up. At just 1.8 gallons, our new P-Nut is about as small as a chopper tank can get. Lower fuel capacity means you'll have more time for bumming smokes and shooting the shit at every gas stop. The Lowbrow P-Nut tank features heavy gauge steel construction, 1/4" NPT petcock bungs and undrilled DIY mounting tabs for custom installation.
more …
Lowbrow Mid-Tunnel P-Nut Gas Tanks
Lowbrow Mid-Tunnel P-Nut Gas Tanks
Nothing changes the look of your hand-built custom motorcycle like a bobber gas tank such as this. The Lowbrow P-Nut gas tanks are based on the old Wassell peanut gas tanks available in the 1950's - 70's. The Lowbrow versions are made from heavy gauge (1mm, approximately 19 gauge) steel, which translates they are much thicker, and the fabrication is of higher quality, than the originals. The Mid Tunnel Peanut has a tunnel that runs about midway through the gas tank, bringing it higher off the backbone than the original (deep tunnel) version.
more …
Throttle Addiction Wassell Peanut Gas Tanks
Throttle Addiction Wassell Peanut Gas Tanks
This unique, narrow shaped gas tank is perfect for lean Choppers, Sportsters, Triumphs or XS 650s. At 1.8 gallons, it’s best for the rider who’s looking for style, not miles.
more …
Oil Tanks for Big Twin 1936-1939
Oil Tanks for Big Twin 1936-1939
Accurate reproductions of the distinctive horseshoe-style oil tanks as used on Knuckleheads and Big Twin Flatheads 1936-1939. All stampings and fittings precisely match the original counterparts. You will need the exact oil lines for installation. Although these tanks are correct only for one or two model years, they will fit all Big Twin frames 1936-1964 for custom applications.
more …
Oil Tanks for Big Twin 1940-1964
Oil Tanks for Big Twin 1940-1964
Reproductions of the horseshoe-style oil tanks as used on rigid and swingarm frame H-D Big Twins 1940–1964. They feature an all-steel construction that is stamped and welded just like the originals.
more …

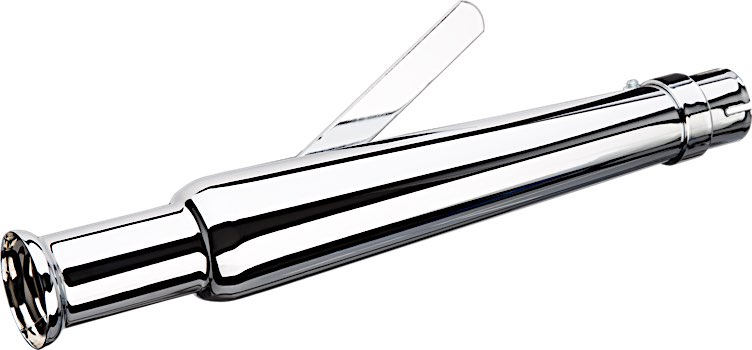

Trumpet Style Mufflers
Trumpet Style Mufflers
Classic 60s and early 70s style Chopper muffler. With universal mounting tab, fits all 1 ¾” head pipes.
more …
Upsweep Trumpet Mufflers
Upsweep Trumpet Mufflers
Bobber or Chopper muffler which features a 15° angled pipe connection.
more …
Trident Cycle Breadbox Air Cleaners
Trident Cycle Breadbox Air Cleaners
These Trident Cycle Breadbox air cleaners have the same size as the original stamped steel air cleaners, but is much slimmer. Both the cover and the base plate are made of high quality 6061 aluminum and have a polished finish. 2 stainless steel cages hold a foam filter element in place and 2 countersunk screws secure the cover to the base plate. Mounting screws for attachment to the carburetor are part of delivery.
In case the air filter is to be fitted to a different carburetor or bike, the version for CV carburetors is drilled with the S&S hole pattern on the inside of the backing plate and vice versa.
more …
Trident Cycle Breadbox Mini Air Cleaners
Trident Cycle Breadbox Mini Air Cleaners
These Breadbox Mini Air Cleaners are even smaller than the classic Breadbox air cleaners. Both the cover and the base plate are made of high quality 6061 aluminum and have a polished finish. 2 stainless steel cages hold a foam filter element in place and 2 countersunk screws secure the cover to the base plate. Mounting screws for attachment to the carburetor are included.
In case the air filter is to be fitted to a different carburetor or bike, the version for CV carburetors is drilled with the S&S hole pattern on the inside of the backing plate and vice versa.
more …
H-D Parts Catalogs
H-D Parts Catalogs
Original Harley manuals with exploded views of all parts and sections, marked with the exact designation (in English) and H-D spare part number.
