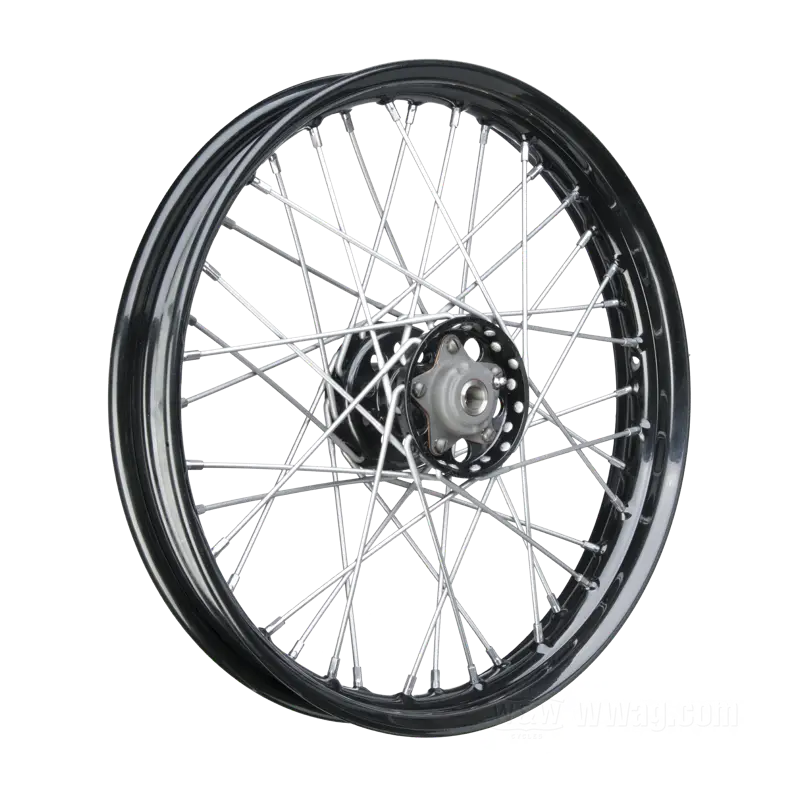

Wheels with Star Hub and Classic Profiled Semi-Drop Center Rim
Wheels with Star Hub and Classic Profiled Semi-Drop Center Rim
variant: by Bates
Price and stock:
Item №
26-728
Price incl. VAT
1,093.98 €
Available
2
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 174.67 € German VAT.
- Laced wheel by Bates
- fits E(L)/F(LH) 1936-1966, U(LH) 1937-1948 front and rear, W(L) 1937-1952 rear only
- steel, with KHW stamping
- Star hub steel
- hub finish: black powder coated
- profile: semi-drop center
- rim finish: black powder coated
- 2.15x18 ”
- spokes: steel cad-plated (ZnNi)
- metal valve in center
- replaces Harley-Davidson part number HD 40978-36
- gross weight: 8.4 kg
These are the wheels to replace the worn or missing stock part on your Knucklehead, Flathead or Panhead. They look just like they came from the factory in that era with black hub and rim as well as cad-plated spokes. The star hub is compatible with original axles and stock brakes. The icing on the cake is the correct Kelsey-Hayes (KHW) rim stamping.
Spare parts:
25-343
Rim »Classic«; fits 45”/750 cc 1935-1940 (WLA/WLC →1952), Knucklehead 1936, Big Twins 1937-1940; steel; profile: semi-drop center; rim finish: black powder coated; 2.15x18 ”; Number of Spoke Holes: 40; metal valve in center; Inner Ø: 432 mm; position: front and rear; for wide and narow hubs, exc. half-hub brakes; replaces OEM HD 43004-35; gross weight: 2.9 kg
25-623
Spoke set by WWS; steel, CAD (ZnNi process); length L1: 208 mm; diameter D1: 5 mm; diameter D2: 4 mm; head angle α: 104 °; thread: M4.5; for wide wheel hub; for 18" semi-drop center and 19" drop-center rims; 80 pieces; with nipples Ø 7.2 mm; replaces OEM HD 43030-36; Germany; gross weight: 1.15 kg
26-689
Wheel hub »Star«; fits W(L) 1937-1952 rear, E(L)/F(LH) 1936-1966, U(LH) 1937-1948; steel, black, powder-coated, with parkerized star cover; matching axle Ø: 17.5 mm; with needle bearings and all internal parts; replaces OEM HD 43540-36; gross weight: 2.2 kg
Needle Bearings for Star Hub 1940-1966
These replacement bearings fit aftermarket type 1940-1966 Star hubs with non-standard needle type wheel bearings.
Gasket Kits for Star Hub 1936-1966
James Gaskets for Star Hub 1936-1966
Replacement Parts for Star Hub with Needle Bearings
Grease Nipples 1939→
For Star hubs, Springer rockers, seat posts and many other applications. Sold each.
Accessories:
26-433
Tire »Firestone Deluxe« by Coker Tire; rubber / steel; position: front or rear; 4.00-18 64P; tube-type; permitted rims min-max: 2.15 - 3.00; E11 approved; gross weight: 5.7 kg
26-899
Tire »Firestone ANS Military« by Coker Tire; rubber / steel; position: front or rear; 4.00-18 64P; tube-type; permitted rims min-max: 2.15 - 2.75; DOT approved, E4 approved; gross weight: 6.14 kg
Front Axles OEM Replacement
Reproduction axles for the front wheel.
Rear Axles OEM Replacement
Reproduction axles for the rear wheel.
Wheel Weights OEM
Lead wheel weights that fit nipples on HD wire wheels.
