Tapered Steering Head Bearings
Select variant:
by Timken; fits Big Twin, 1949-1959, Servi-Car 1958-1959; height outer race: 9.42 mm, height inner race: 14.65 mm; ID x OD: 25.4 x 50 mm; replaces OEM HD 48300-49, and 48315-48; USA; NOTE: Check OD! Fits bearing cups 48311-48 only.
by Timken; fits FL, FX and Touring models 1960-2013, all Softail and Dyna models, Sportster 1982-2020, Servi-Car 1960→, all V-Rod models; height outer race: 10.65 mm, height inner race: 14.8 mm; ID x OD: 25.4 x 50.3 mm; replaces OEM HD 48300-60, and 48315-60
by Timken; fits Sportster 1978-1981; height outer race: 10.65 mm, height inner race: 14.8 mm; ID x OD: 23.75 x 50.3 mm; replaces OEM HD 45586-78; USA
fits Touring 2014→; height outer race: 14 mm, height inner race: 16 mm; ID x OD: 30 x 62 mm; with 2 bearings and 2 dust caps; replaces OEM HD 45700009
Price and stock:
Item №
15-148
Price incl. VAT
60.31 €
Available
44
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 9.63 € German VAT.

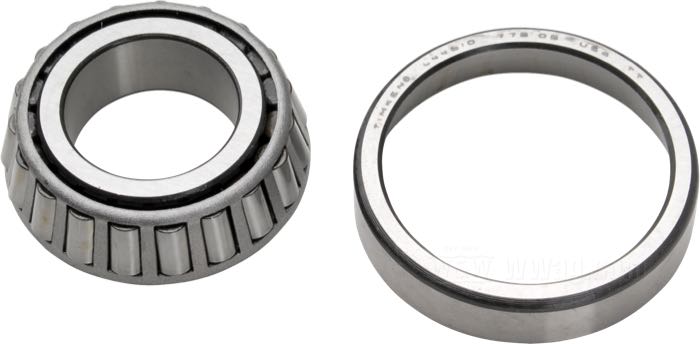

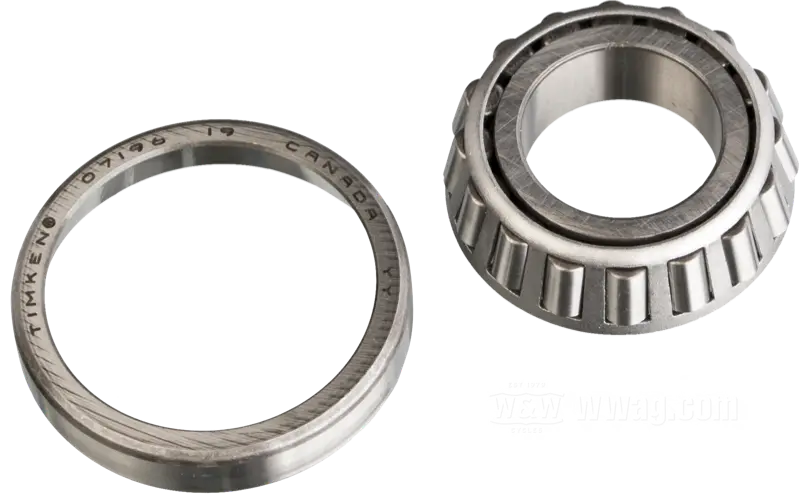

- Tapered roller bearing by Timken
- for steering head
- fits Big Twin, 1949-1959, Servi-Car 1958-1959
- steel, height outer race: 9.42 mm, height inner race: 14.65 mm
- tolerance class: RBEC 1
- ID x OD: 25.4 x 50 mm
- replaces Harley-Davidson part number HD 48300-49, and 48315-48
- USA
- NOTE: Check OD! Fits bearing cups 48311-48 only.
- gross weight: 121 g
While other motorcycle brands were still using ball bearings packed with grease, Harley-Davidson Big Twins already had tapered roller bearings in the steering head: Big Twins from 1949 and Sportsters from 1978. On older models with cast steering heads, these tapered roller bearings are housed in separate, pressed-in bearing cups. On Sportsters from 1982 and Touring models from 1981. Softails had cast steering heads until 1988.
