 Shop Fork Steering Head Bearings

Steering Head Bearing Races and Cups for Ball Bearings →1977



Steering Head Bearing Races and Cups for Ball Bearings →1977

steel

Item №

Version

Price incl. VAT*

unit

Availability in warehouse Germany

18-655

Centering collar; for Springer fork; fits Big Twin 1936-1948; with Ø 1” at lower end of fork stem; ID x OD: 25.4 x 36.7 mm; tolerance class: ABEC 1; replaces OEM HD 48361-38; NOTE: Centers the lower bearing cup to the steering stem.

Centering collar; for Springer fork; fits 750cc 1929-1957; ID x OD: 24 x 34.5 mm; replaces OEM HD 48363-40; NOTE: Centers the lower bearing cup to the steering stem.

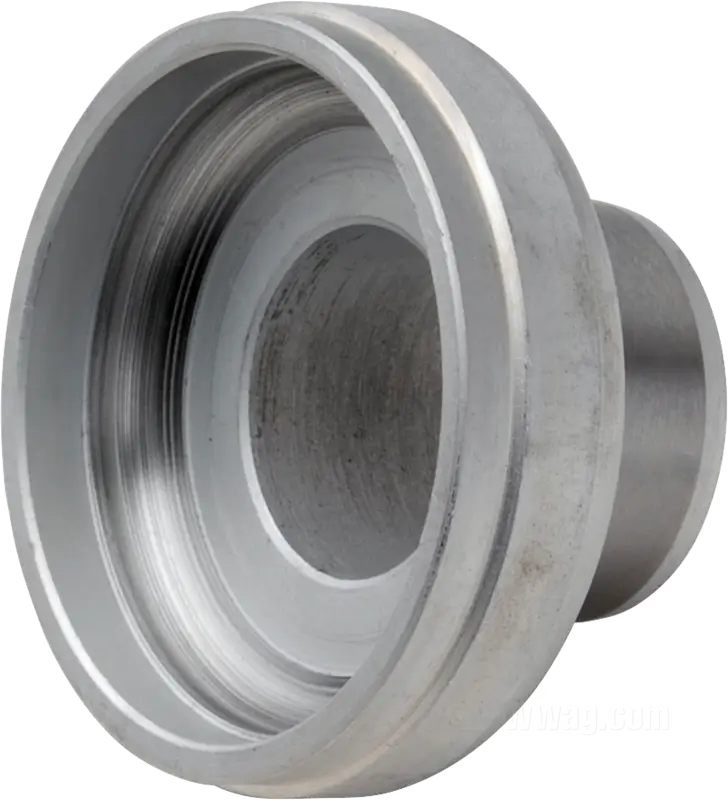

Steering head cups; fits W/G-models 1930-1957, K-model and Sportster 1952-1977; replaces OEM HD 48310-30

Steering head cups; fits Big Twin 1936-1948; CAD (ZnNi process); replaces OEM HD 48311-36

Bearing race; fits W/G-models 1930-1957, K-model and Sportster 1952-1977; ID x OD: 24.5 x 45.7 mm; tolerance class: ABEC 1; replaces OEM HD 48346-39

Bearing race; fits model K and Sportster 1952-1977; bottom; ID x OD: 24 x 46.7 mm; tolerance class: ABEC 1; replaces OEM HD 48347-52

Bearing race; fits Big Twin 1936-1948; ID x OD: 27 x 51 mm; tolerance class: ABEC 1; replaces OEM HD 48345-36

Bearing ball; for clutch release mechanism, XL 1971–83, head cups Big Twin 1930-48, W/G-models 1930-1957, K-model and Sportster 1952-1977, front hub WL; steel; Ø 5/16”; tolerance class: ABEC 1; replaces OEM HD 8860; USA; gross weight: 1 g

* The price includes German VAT (19% or reduced rate of 7% for Books).
