Sportster Primary Cover Plugs OEM Type
Select variant:
for clutch adjustment, filling oil; fits Sportster 1977-1985; height: 1”; thread: 1-1/2”-12; with O-ring; replaces OEM HD 34742-77B
for filling oil; fits K model and Sportster 1954-1970; polished; height: 13/16”; thread: 1-1/2”-12; with O-ring; replaces OEM HD 34742-52A
for filling oil; fits Sportster 1971-1976; height: 1”; thread: 1-1/2”-12; replaces OEM HD 34742-71
for clutch adjustment; fits Sportster 1971-1976; height: 1”; thread: 1-3/8”-12; with O-ring; replaces OEM HD 37880-71
for clutch adjustment, filling oil; fits Sportster 1986-1990; height: 1”; thread: 1-1/2”-12; with O-ring; replaces OEM HD 34742-86
Price and stock:
Item №
84-912
Price incl. VAT
33.07 €
Available
8
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 5.28 € German VAT.

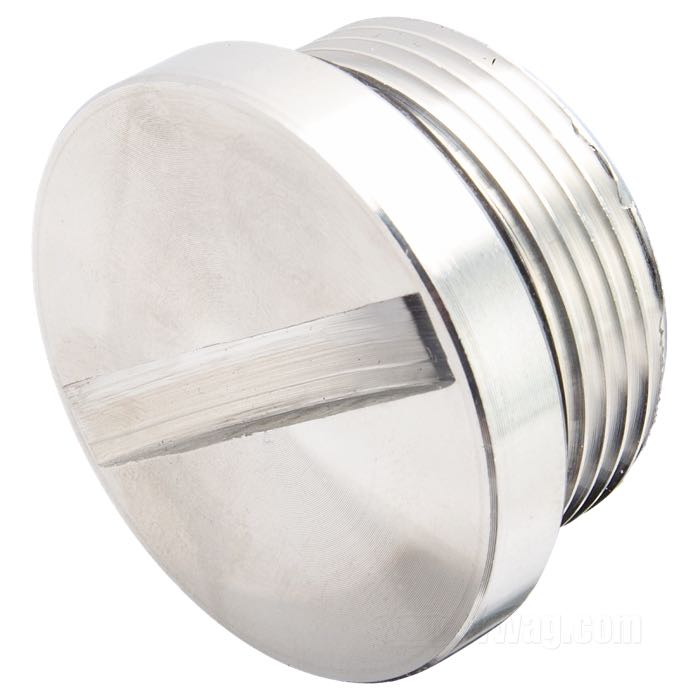

- Plug by Colony
- for Primary cover
- for clutch adjustment, filling oil
- fits Sportster 1977-1985
- aluminum
- height: 1”
- Ø 1-3/4”
- slotted
- thread: 1-1/2”-12
- with O-ring
- replaces Harley-Davidson part number HD 34742-77B
- USA
- gross weight: 70 g
Stock replacement oil filler and clutch adjusting caps for Sportster primary covers.
Spare parts:
57-006
O-Ring by James Gaskets; for Filler plug; for primary filler + inspection cap; fits Sportster 1971-early 1978; rubber; ID x OD: 37.7 x 41 mm, 1.8 mm thick; replaces OEM HD 11106; gross weight: 10 g
57-039
O-Ring by James Gaskets; for Filler plug; for primary filler and inspection cap; fits Sportster late 1978-1990; rubber; ID x OD: 35 x 40 mm, 2.5 mm thick; replaces OEM HD 11139; gross weight: 1 g
See also:
PanAm Clean-Funnel
A good funnel is a must have in any workshop when it’s time for an oil change or a refill. The annoying part of these jobs was to stow away the oil dripping funnel into a dark corner where you would find it a few months later contaminated inside-outside with dust, bugs and other debris. The PanAm funnel puts an end to this problem because it features screw-on caps at the top and bottom which can be removed for action and which keep the inside of your funnel perfectly clean during storage. The flexible spout makes it more versatile as it allows to direct the funnel tip in tight spots.
Barnett Clutch Lock Plates K-Model, Sportster
Used to hold clutch shell from turning when engine sprocket, clutch hub and transmission chain sprocket are removed.
Compression Tools for Clutch Springs of Sportster 1971-1984
Primary Plug Sockets, 3/8” drive
Wrench for 3/8” drive ratchet or handle to install and remove the clutch adjuster and filler plugs on all XL models from 1954–85.
PanAm Oil SAE 85W-90
This lubricant is recommended for Sportsters, where transmission and primary drive share one lubricant. This high performance lubricant complies with API GL-4.
