Spoke Sets for Wide Hub and Drop-Center Rims
Spoke sets for all standard HD 1936→ model hubs incl. FX(D)WG, exc. front hubs on 45”, K-models, Sportster, FX, FXR and Dyna.

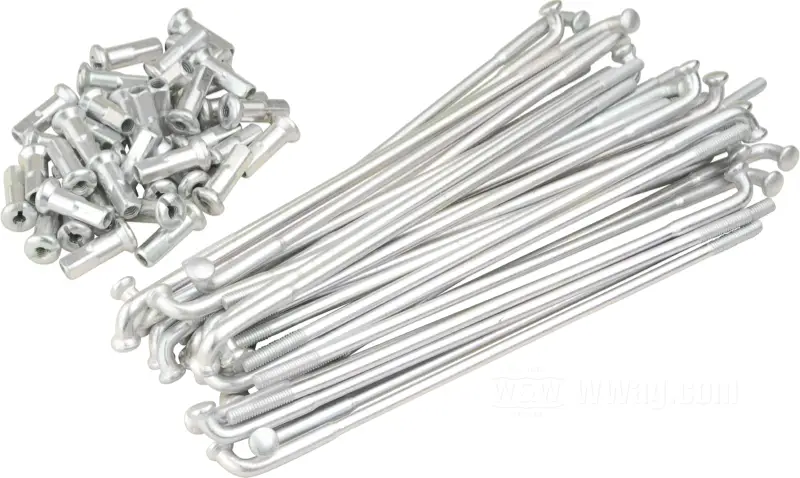

- Spoke set
- steel, CAD (ZnNi process)
- length L1: 171 mm
- diameter D1: 5 mm
- diameter D2: 4 mm
- head angle α: 95 °
- thread: 8G-32
- for wide wheel hub
- for 16" drop-center rims
- 80 pieces
- with nipples Ø 7.2 mm
- replaces Harley-Davidson part number HD 43033-40, 43032-40B, and 43241-05
- gross weight: 1.03 kg
CAD Spokes (ZnNi process)
The HD factory finish for spokes well into the seventies was cad plating. For serious restaurations this is a must but it looks also cool on bobbers especially when combined with black rims and hubs.
As part of the ZnNi process, there may be a slight surface discoloration that can be polished away without problems with a rag and some WD-40.
Spoke Heads of Equal Length
The kits contain spokes with heads of equal length. On lacing the wheel, the inner spokes are positioned side by side to the outer ones.
