Description
Facts
Good to know

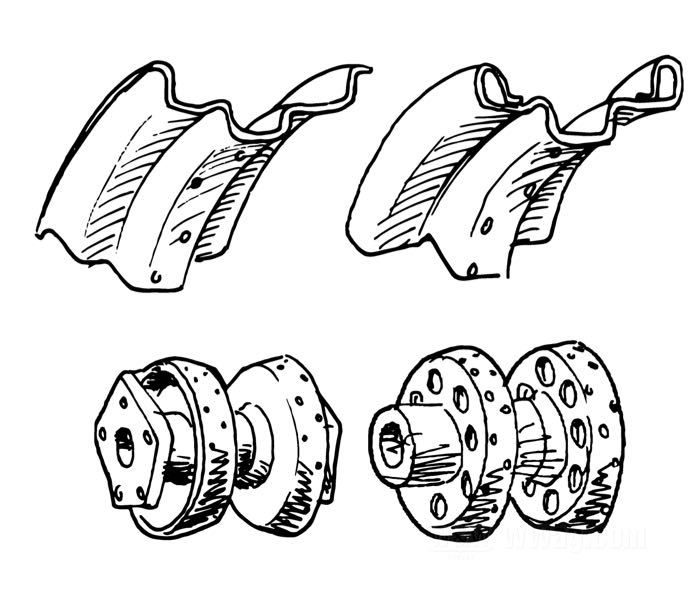

Spoke sets for all standard HD 1936→ model hubs incl. FX(D)WG, exc. front hubs on 45”, K-models, Sportster, FX, FXR and Dyna.

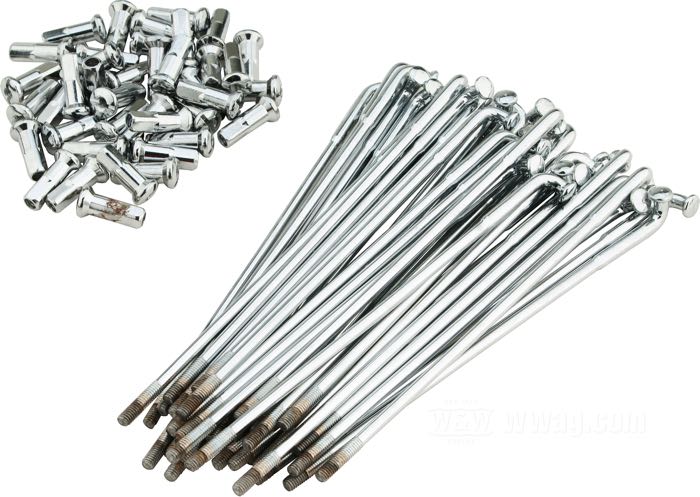

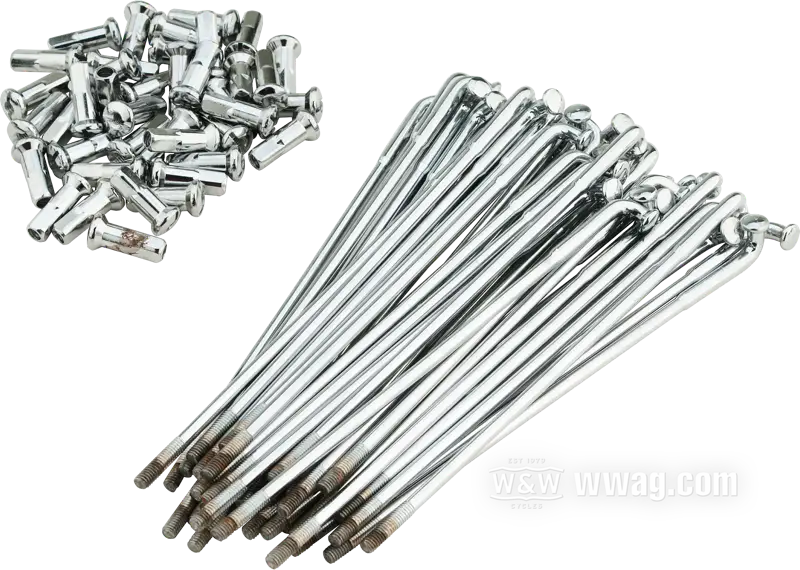

  • Spoke set
  • steel, chrome-plated

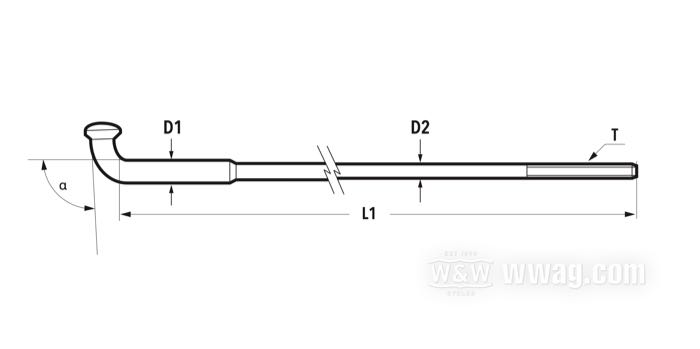

  • length L1: 161 mm
  • diameter D1: 5 mm
  • diameter D2: 4 mm
  • head angle α: 104 °
  • thread: 8G-32
  • for wide wheel hub
  • for 15" drop-center rims
  • 80 pieces
  • with nipples Ø 7.2 mm
  • gross weight: 1 kg

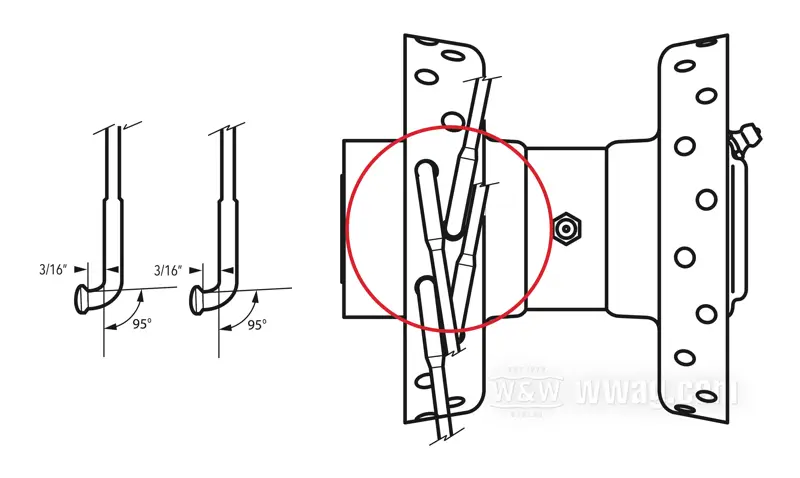

Spoke Heads of Equal Length

The kits contain spokes with heads of equal length. On lacing the wheel, the inner spokes are positioned side by side to the outer ones.

Spare parts:

25-222

25-222

Spoke; steel, chrome-plated; length L1: 161; for wide wheel hub; for 15" drop-center rims; with nipple; gross weight: 30 g
more …
Spoke Nipple Sets Standard

Spoke Nipple Sets Standard

Use as replacements for our spokes or OEM  spokes. Extra-long spoke nipples can be a solution in custom applications, where the inside diameter of the respective rim is larger than stock.
more …

See also:

Spoke Nipple Wrenches Big Twins and Sportsters

Spoke Nipple Wrenches Big Twins and Sportsters

Reproduction of the proven factory tool.
more …
Spoke Nipple Wrenches Pro

Spoke Nipple Wrenches Pro

For six different nipple sizes. Professional quality.
more …
Star Hubs 1940-1966 with Tapered Roller Bearings

Star Hubs 1940-1966 with Tapered Roller Bearings

This hub is completely re-engineered. It duplicates the original part in outside dimensions and appearance, but has added the reliability of tapered roller bearings. Comes ready-to-install, with conventional grease seals.
more …
