Spoke Sets for Wide Hub and Semi-Drop Center Rims
Select subgroup:
for 18" rims
for 19" rims
Select variant:
steel, CAD (ZnNi process); thread: 8G-32
by WWS; steel, CAD (ZnNi process); thread: M4.5; Germany
steel, parkerized; thread: 8G-32
Price and stock:
Item №
25-567
Price incl. VAT
133.15 €
Available
17
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 21.26 € German VAT.

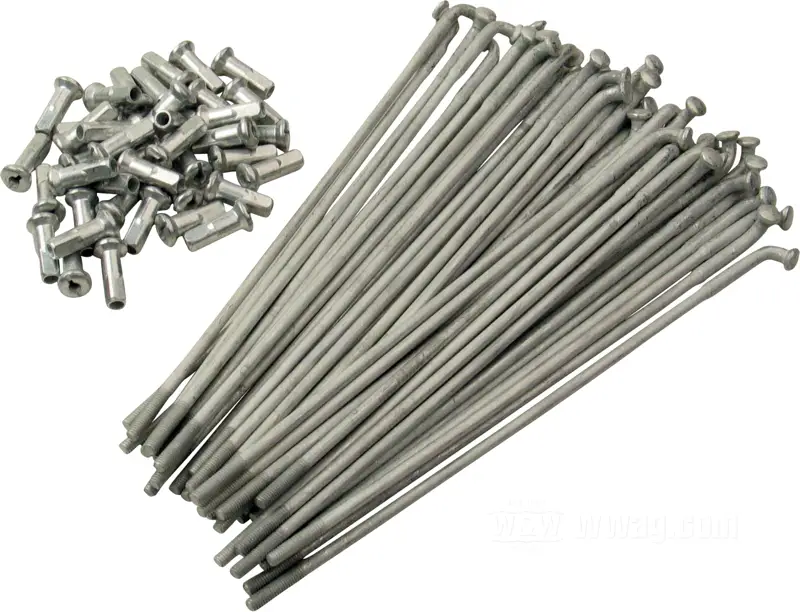

- Spoke set
- steel, CAD (ZnNi process)
- length L1: 208 mm
- diameter D1: 5 mm
- diameter D2: 4 mm
- head angle α: 104 °
- thread: 8G-32
- for wide wheel hub
- for 18" semi-drop center and 19" drop-center rims
- 80 pieces
- with nipples Ø 7.2 mm
- replaces Harley-Davidson part number HD 43030-36
- gross weight: 1.06 kg
CAD Spokes (ZnNi process)
The HD factory finish for spokes well into the seventies was cad plating. For serious restaurations this is a must but it looks also cool on bobbers especially when combined with black rims and hubs.
As part of the ZnNi process, there may be a slight surface discoloration that can be polished away without problems with a rag and some WD-40.
Spoke Heads of Equal Length
The kits contain spokes with heads of equal length. On lacing the wheel, the inner spokes are positioned side by side to the outer ones.
Related:
Item №
Version
Price incl. VAT*
unit
Availability in warehouse Germany
* The price includes German VAT (19% or reduced rate of 7% for Books).
Spare parts:
26-643
Spoke; steel, CAD (ZnNi process); length L1: 208; for wide wheel hub; for 18" semi-drop center and 19" drop-center rims; with nipple; gross weight: 29 g
27-090
Spoke nipple by The Cyclery; stock length; steel, CAD (ZnNi process); length: 22 mm; Ø 7 mm; thread: 8G-32; Germany; gross weight: 5 g
