Brake Drum

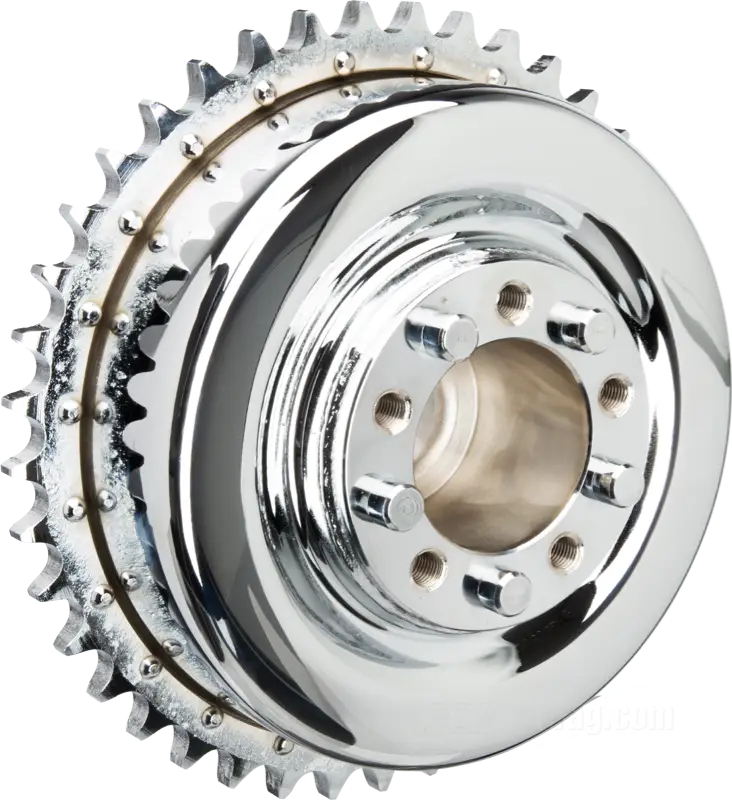

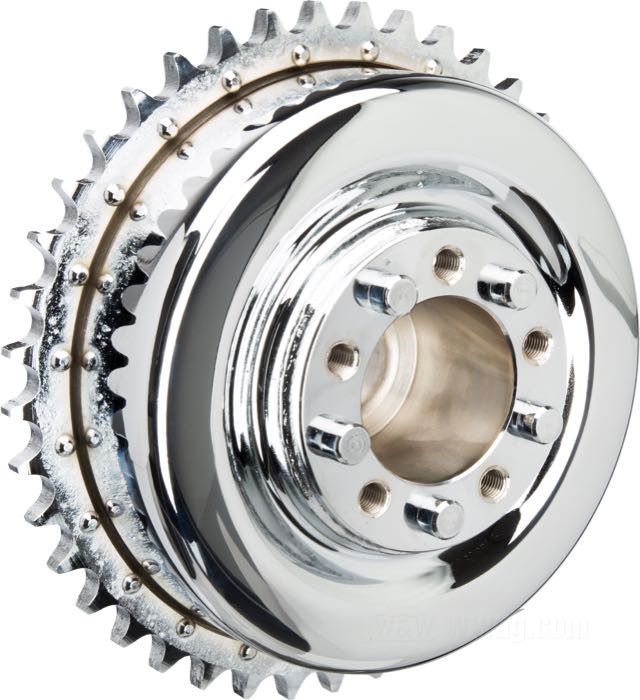

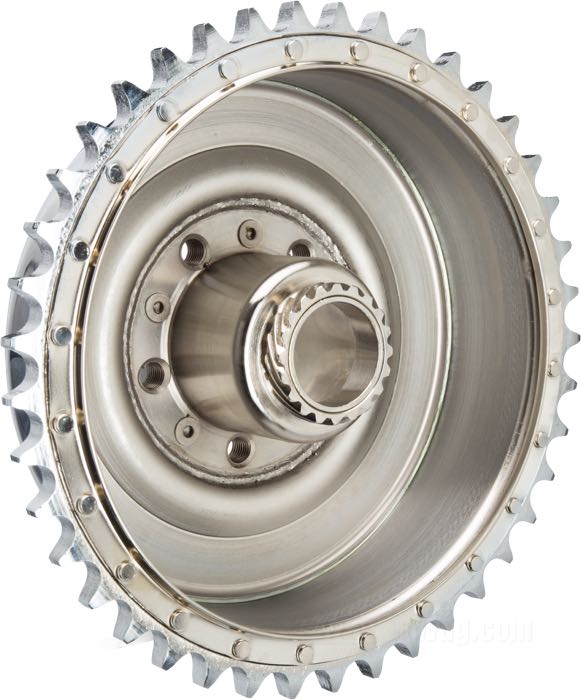

Rear sprocket; for Drum brake; fits model R 1935-1936, model W 1937-1952; with dust ring; steel; number of teeth: 41; pitch: 530 (5/8” x 3/8”); with rivets and dowel pins; replaces OEM HD 41474-35; gross weight: 380 g

Rivet; for Rear sprocket; fits 45" 1935-1952; steel, without dowel pins; length: 14 mm; Ø 3.5 mm; replaces OEM HD 8496; gross weight: 60 g

On star hubs the brake drum is fixed by five lug bolts to the hub flange. The brake drum must not touch the spoke flange on the hub. The cast brake drums will break — especially when it is distorted by tightening the bolts. Manufacturing tolerances (aftermarket brake drums and hubs) can cause the drum to touch the hub. Before you tighten down the lug bolts, you will want to check for sufficient brake-drum to spoke flange gap and — if not present — use one of these shims.

Special countersunk socket head bolts to mount the brake drum to the wheel hub.

A heavy duty brake cleaner which cleans and degreases metal and glass surfaces. It removes oil, grease, resins, tar, wax, dust and dirt - fast and efficiently. Good penetration, evaporates without leaving traces. The PanAm Grease Fighter assures a clean and professional work result.
