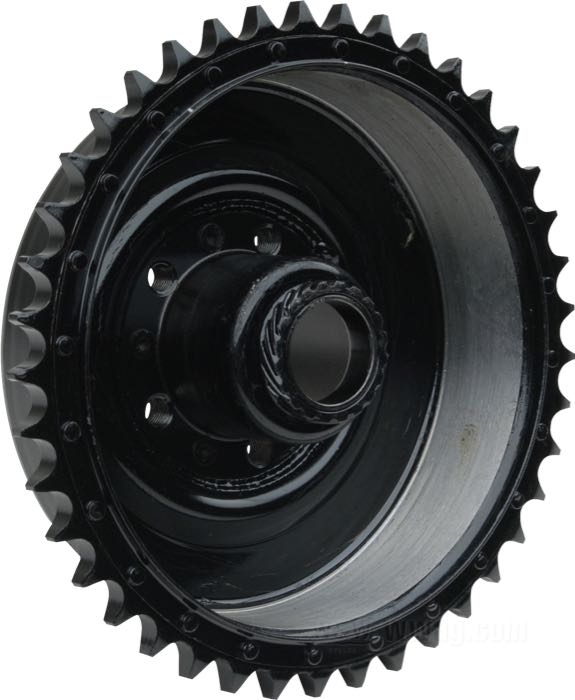

Brake Drum
Select variant:

black, powder-coated


chrome-plated
Price and stock:
Item №
28-559
Price incl. VAT
399.69 €
Available
5
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 63.82 € German VAT.
- Brake drum
- fits W(L) 1941-1952
- rear
- steel, black, powder-coated
- thread: 3/8”-20
- outer Ø: 176 mm
- Inner Ø: 172.5 mm
- replaces Harley-Davidson part number HD 41401-41
- gross weight: 2.35 kg
Spare parts:

76-425
Rear sprocket; for Drum brake; fits model R 1935-1936, model W 1937-1952; with dust ring; steel; number of teeth: 41; pitch: 530 (5/8” x 3/8”); with rivets and dowel pins; replaces OEM HD 41474-35; gross weight: 380 g

76-708
Rivet; for Rear sprocket; fits 45" 1935-1952; steel, without dowel pins; length: 14 mm; Ø 3.5 mm; replaces OEM HD 8496; gross weight: 60 g

Register Pin for Brake Drums

Brake Drum Dust Rings for W(L) 1941-1952
Accessories:

Bates Brake Drum Shims
On star hubs the brake drum is fixed by five lug bolts to the hub flange. The brake drum must not touch the spoke flange on the hub. The cast brake drums will break — especially when it is distorted by tightening the bolts. Manufacturing tolerances (aftermarket brake drums and hubs) can cause the drum to touch the hub. Before you tighten down the lug bolts, you will want to check for sufficient brake-drum to spoke flange gap and — if not present — use one of these shims.

Lug Bolts for Brake Drums
Special countersunk socket head bolts to mount the brake drum to the wheel hub.
