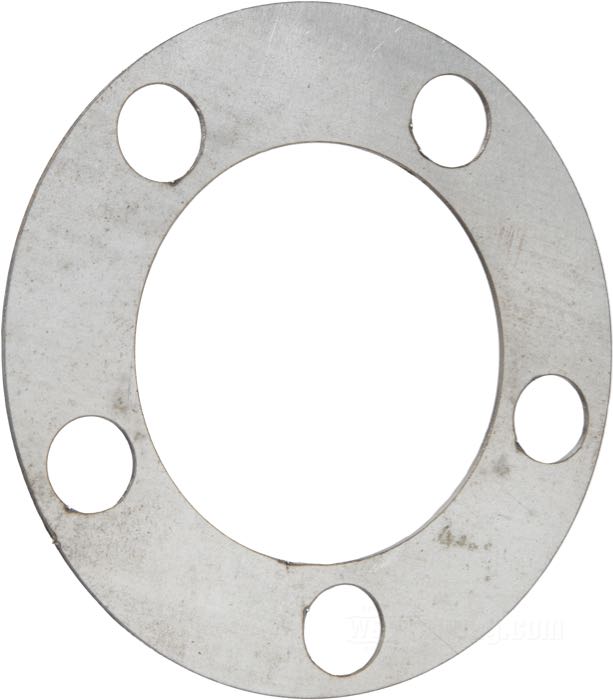

Bates Brake Drum Shims
- Shim by Bates
- for Brake drum
- fits Big Twin 1936-1966, WL 1941-1952
- steel
- ID x OD: 53.3 x 88 mm, 1 mm thick
- position: rear
- Germany
- gross weight: 10 g
On star hubs the brake drum is fixed by five lug bolts to the hub flange. The brake drum must not touch the spoke flange on the hub. The cast brake drums will break — especially when it is distorted by tightening the bolts. Manufacturing tolerances (aftermarket brake drums and hubs) can cause the drum to touch the hub. Before you tighten down the lug bolts, you will want to check for sufficient brake-drum to spoke flange gap and — if not present — use one of these shims.
Possible assembly fault and brake drum failure.
Some brake drum/wheel hub combinations require one or more spacer shims (front W&W 27-748, rear 27-746) to prevent them from touching the hub’s spoke rim. The brake drum must not touch the hub’s spoke flange. This might result in the drum breaking when tightening lug bolts.
