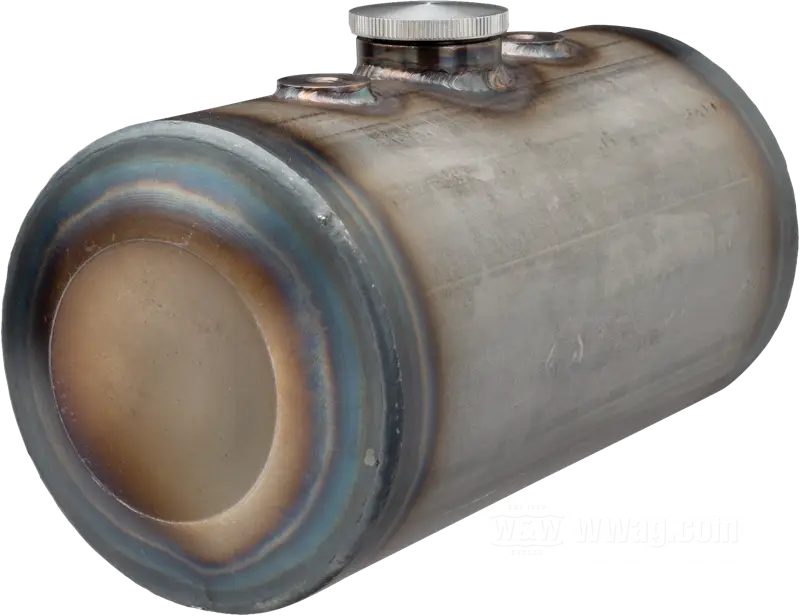

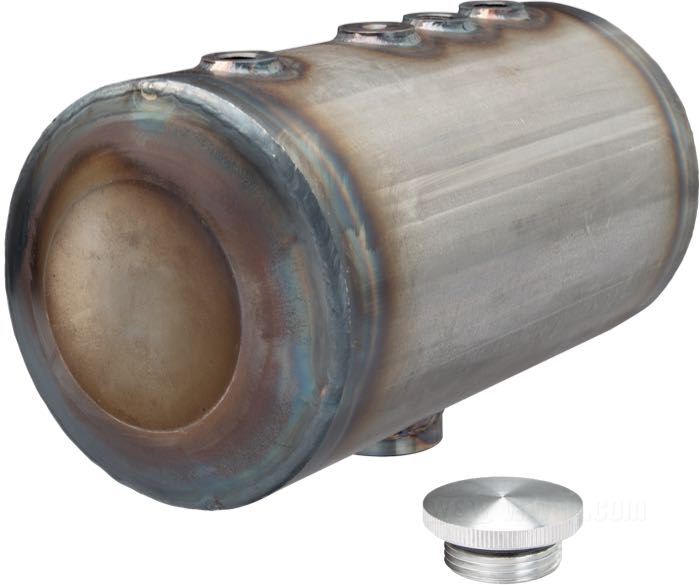

Welded steel oil tank in classic barrel style. It has three 5/16"-18 mounting points, two at the top and one at the bottom. This way you can be sure that the oil tank stays in place even during bumpy journeys through the maize field. It has a capacity of 2.9 l and a central aluminium tank cap. Thanks to soldered pipes installed in the tank, oil supply, venting and return are located at the bottom of the tank, which is advantageous for a clean routing of the oil lines. All components of this tank are made in USA.
- steel, bare, mounting threads: 5/16”-18
- length: 247 mm
- Ø 128 mm
- 2.84 l
- filler spout: 1-5/16"-12
- connection thread: 1/4”-18 NPT
- USA
- gross weight: 1.6 kg
