Jims Pinion Gears for Big Twin 1954-1989

Jims Pinion Gears for Big Twin 1954-1989

Select subgroup:
for Big Twin 1954- early 1977
for Big Twin 1954- early 1977
for Big Twin Late 1977-1989
for Big Twin Late 1977-1989
Price and stock:
Item №
61-717
Price incl. VAT
281.44 €
Available
3
Ready for immediate delivery from our Würzburg, Germany warehouse
The price includes 44.94 € German VAT.
piece
Save to wish list

Pinion gears in proven JIMS quality. The color code is identical to the factory  codes so they can be used as stock replacement. If the color code is unknown we recommend to order a gear in the middle size range. These sizes fit 9 out of 10 engines and provide adequate clearance under most circumstances. As a rule of thumb it is preferable to allow slightly more gear lash than too little.

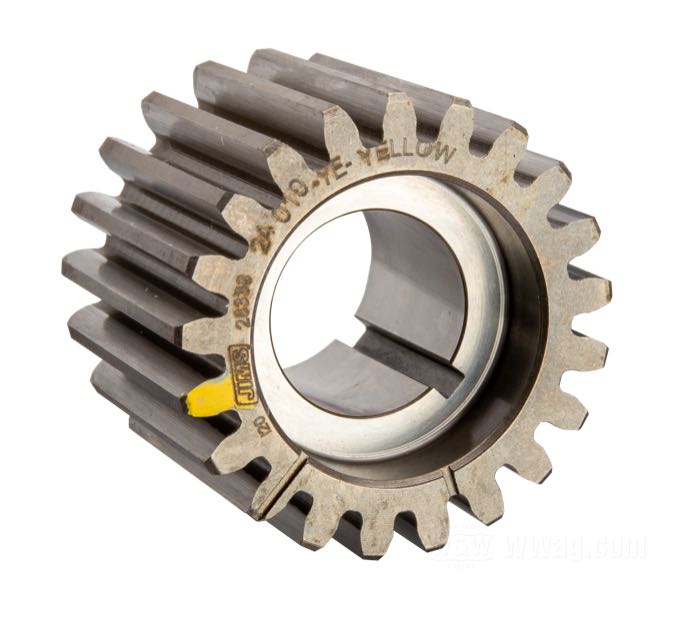

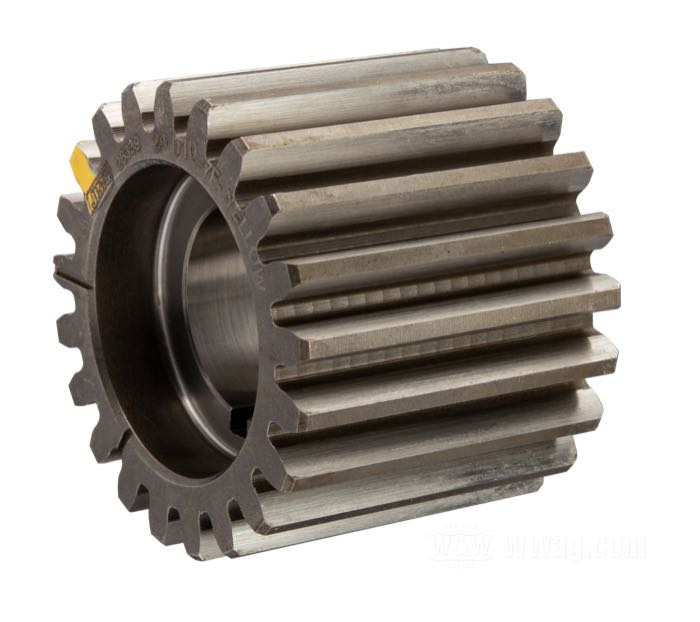

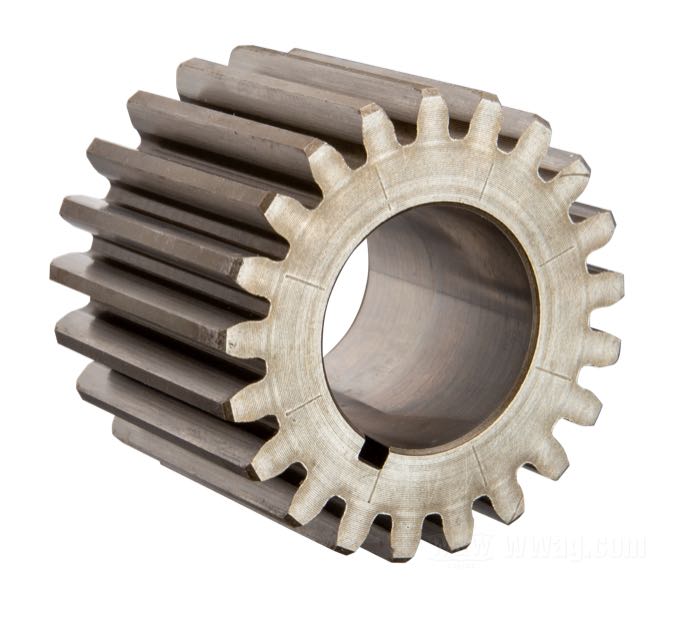

  • Pinion gear by Jims
  • fits Big Twin 1954- early 1977
  • color code: yellow
  • steel, 21 teeth
  • Ø 36.71 mm
  • replaces Harley-Davidson part number HD 24010-54
  • gross weight: 150 g

Cam gear noise

While some positive backlash is necessary to prevent gear tooth overloads, excess backlash (“clicking“) may sound annoying but won´t hurt anything. To correct noisy gears use either a larger cam gear or pinion gear. Tight fitting pinion and cam gears will cause very noticeable whining as a result of running with zero backlash which is a serious problem. In this case a smaller cam gear or pinion gear is required.
