James Gasket Kits for Engines: Evolution Sportster



James Gasket Kits for Engines: Evolution Sportster

Item №

55-028

Price incl. VAT

251.92 €

Available

25



Ready for immediate delivery from our Würzburg, Germany warehouse

The price includes 40.22 € German VAT.

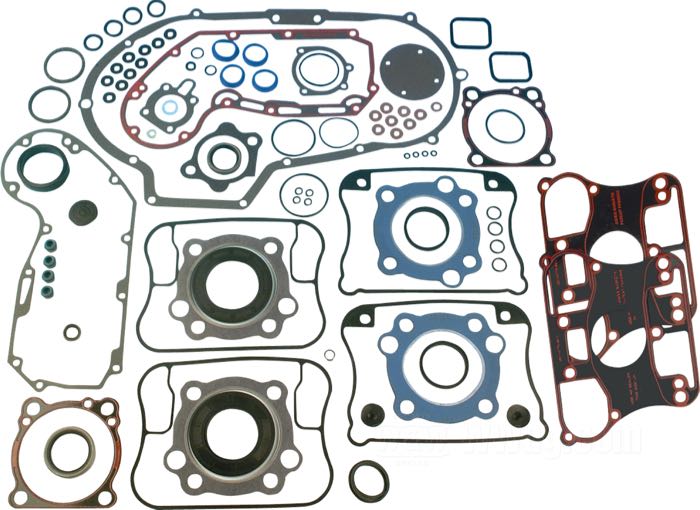

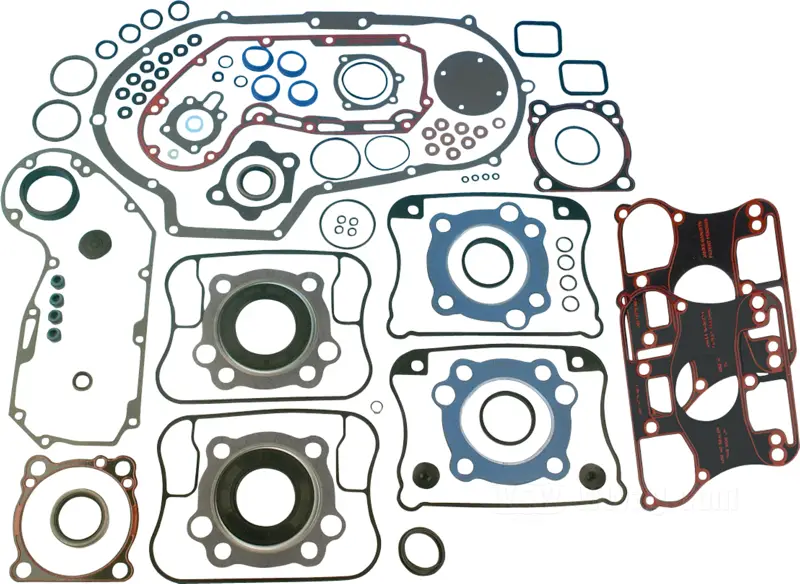

Each complete kit contains all necessary gaskets for the complete overhaul of one engine.

Gasket kit by James Gaskets
for Engine
fits Evo Sportster 1991-2003
paper / rubber / steel / silicone
replaces Harley-Davidson part number HD 17026-91A
USA
NOTE: Gasket kit WW# 55-028 can also be used with Buell models, but requires a few additional OEM gaskets and seals: 29539-99Y, CB0005.K, P0134.K, P0133.K, P0156.2, one each
gross weight: 640 g

Spare parts:

56-119

Gasket by James Gaskets; for Header pipe / Cylinder head; fits Evolution, Twin Cam and Milwaukee Eight Big Twins 1985→, Evolution Sportster 1986-2020; steel, conical; ID x OD: 41.5 x 48 mm; replaces OEM HD 65324-83A; gross weight: 4 g

57-788

Gasket by James Gaskets; for Rocker cover / Cylinder head; fits Big Twin 1984-1998 (Softail →1999), Sportster 1986-2020; rubberized steel / silicone; replaces OEM HD 16800-84A, 16778-84, and 16779-84; gross weight: 80 g

57-103

O-Ring by James Gaskets; for Cylinder to Head Centering Dowels Big Twin Evolution, Sportster 1986-2007, Buell →2007, Engine Case Halves Centering Dowel Dyna and Touring 1999-2007, Softail 2000-2008, Check Valve XR1200X; rubber; ID x OD: 13.5 x 17.5 mm, 2 mm thick; replaces OEM HD 26432-76; gross weight: 10 g

57-497

Gasket by James Gaskets; for Gear cover; fits Sportster 1991-2020; silicone; replaces OEM HD 25263-90, and 25263-90D; gross weight: 10 g

57-767

Seal washer by James Gaskets; for external oil filters Big Twins 1949-1965; primary oil level control Sportster 1971-1976; rocker cover screws Big Twin 1984-1998 (Softail →1999), Sportster 1986-2008, and Buell 1995-2008; steel / neoprene; ID x OD: 6.5 x 14.9 mm, 1.8 mm thick; replaces OEM HD 63858-49; gross weight: 10 g

57-768

Seal washer by James Gaskets; for external oil filters Big Twins 1949-1965; primary oil level control Sportster 1971-1976; rocker cover screws Big Twin 1984-1998 (Softail →1999), Sportster 1986-2008, and Buell 1995-2008; copper; ID x OD: 6.75 x 15.9 mm, 0.85 mm thick; replaces OEM HD 63858-49; gross weight: 2 g

57-434

Gasket by James Gaskets; for Rocker cover / Cylinder head; fits Big Twin 1984-1998 (Softail →1999), Sportster 1986-2020; paper / silicone; replaces OEM HD 16800-84A, 16778-84, and 16779-84; gross weight: 30 g

55-391

Gasket »Firering« by James Gaskets; for Cylinder head; fits Sportster 883 cc 1986-2020; metal/graphite compound / PTFE; nominal bore: 3 ”; 0.045” thick; with O-ring 0.071”; replaces OEM HD 16664-86B; gross weight: 30 g

55-394

Gasket »Firering« by James Gaskets; for Cylinder head; fits Big Twin 1984-1998, Softail 1999, Sportster 1200 cc 1988-2020; metal/graphite compound; nominal bore: 3-1/2 ”; 0.062” thick; with O-rings 0.081”; replaces OEM HD 16770-84, and 16773-85; gross weight: 20 g

56-118

Gasket by James Gaskets; for Header pipe / Cylinder head; fits Evolution, Twin Cam and Milwaukee Eight Big Twins 1985→, Evolution Sportster 1986-2020; steel; ID x OD: 42 x 50 mm, 4.5 mm thick; replaces OEM HD 65324-83; gross weight: 4 g

56-902

O-Ring by James Gaskets; for Anti-rotation pin / Tappet; fits Sportster 1991-1999; also used on: radio knobs FLTC-U and FLHTC-U 1989-1993; rubber; ID x OD: 4.2 x 8 mm, 1.9 mm thick ; replaces OEM HD 11176; gross weight: 10 g

56-904

O-Ring by James Gaskets; for Filler plug; for clutch inspection cap; fits Sportster 1991-1993; rubber; ID x OD: 50.7 x 55.7 mm, 2.5 mm thick; replaces OEM HD 11187; gross weight: 10 g

56-905

O-Ring by James Gaskets; for Filler plug; for chain inspection cap; fits Sportster 1991-2020; Perf-Form oil cooler; rubber; ID x OD: 46.2 x 51.2 mm, 2.5 mm thick; replaces OEM HD 11188; gross weight: 10 g

56-906

O-Ring; for Pushrod covers; fits Sportster 1991-2020; rubber; position: top; ID x OD: 18.0 x 24.0 mm, 3.4 mm thick; replaces OEM HD 11190; gross weight: 2 g

56-912

O-Ring; for accelerator jet; fits Big Twin and Sportster 1990-1992; rubber; ID x OD: 4.6 x 7 mm, 1.2 mm thick ; replaces OEM HD 27121-89; gross weight: 10 g

56-913

O-Ring; for Drain plug / Float bowl; fits Big Twin and Sportster 1988-1991; rubber; ID x OD: 4.6 x 7 mm, 1.2 mm thick ; replaces OEM HD 27157-89; gross weight: 10 g

56-914

O-Ring by James Gaskets; for Float bowl; fits Big Twin 1992-2006 (Dyna only →2005), Sportster 1992-2006; rubber; replaces OEM HD 27577-92; gross weight: 1 g

56-918

O-Ring by James Gaskets; for Shifter shaft; fits Sportster 1991-2008, Buell →2002; rubber; replaces OEM HD 7019; gross weight: 10 g

57-005

O-Ring by James Gaskets; for Oil filter wing nut BT 1966-1982, XL 1966-1978, Tappet Screen Plug BT late 1970-1984, Check Valve Plug BT late 1978-1998(9), Drain Plugs Dyna 1992→ and Touring 1993→, Drain Plug Transmission and oil tank Softail 2000→, Drain Plug primary housing Dyna 2006→, Softail and Touring 2007→, Drain Plug primary housing and transmission Sportster/Buell 1977→, under fork damper: XL and FX 1971-1972; rubber; ID x OD: 10.8 x 14.4 mm, 1.8 mm thick; replaces OEM HD 11105; gross weight: 1 g

57-016

O-Ring by James Gaskets; for starter housing; fits Sportster 1981-2020; rubber; ID x OD: 43 x 48 mm, 2.5 mm thick ; replaces OEM HD 11116; gross weight: 10 g

57-032

O-Ring by James Gaskets; for Pushrod cover mid position Big Twin late 1979→, Sportster late 1979-1990, filler plug transmission Big Twin 1993-2006 (Dyna only →2005), engine oil dipstick cover top Dyna 1991-1998, front fork air control on valve assembly banjo Touring models 1987-1996; rubber; ID x OD: 17.5 x 22.5 mm, 2.5 mm thick; replaces OEM HD 11132; gross weight: 1 g

57-045

O-Ring; for Pushrod covers; fits Big Twin 1984→, Sportster 1986-1990; rubber; position: bottom; ID x OD: 21.5 x 26.8 mm, 2.6 mm thick; replaces OEM HD 11145; gross weight: 1 g

57-057

O-Ring by James Gaskets; for Pushrod cover top position Big Twin 1984-1998 (Softail →1999), Sportster 1984-1990, oil pump Twin Cam 88; rubber; ID x OD: 18 x 24 mm, 3.5 mm thick; replaces OEM HD 11157; gross weight: 10 g

57-067

O-Ring by James Gaskets; for Tappet guide; fits Sportster 1986-1990; rubber; position: top; ID x OD: 25 x 30 mm, 2.5 mm thick; replaces OEM HD 11167A; gross weight: 10 g

57-068

O-Ring by James Gaskets; for Tappet guide; fits Sportster 1986-1990; rubber; position: bottom; ID x OD: 25 x 28.6 mm, 1.8 mm thick; replaces OEM HD 11168A; gross weight: 10 g

57-072

O-Ring by James Gaskets; for Cylinder to Head Centering Dowels Big Twin Evolution, Sportster 1986-2007, Buell →2007, Engine Case Halves Centering Dowel Dyna and Touring 1999-2007, Softail 2000-2008, Check Valve XR1200X; rubber; ID x OD: 14.5 x 17.5 mm, 1.5 mm thick; replaces OEM HD 26432-76; gross weight: 2 g

57-073

O-Ring; for oil pump check valve Sportster 1977-1985, oil filter check valve Sportster 1986-1990; rubber; ID x OD: 9.5 x 14.5 mm, 2.5 mm thick; replaces OEM HD 26433-77; gross weight: 10 g

57-074

O-Ring; for Oil pump cover; fits Sportster 1977-1990; rubber; replaces OEM HD 26434-76A; gross weight: 10 g

57-095

O-Ring by James Gaskets; for Float bowl; fits Sportster 1988-91, Sportster 1992 (HDI & Swiss), Big Twin 1990-1991; rubber; replaces OEM HD 27577-88; gross weight: 10 g

57-098

Gasket by James Gaskets; for Manifold / Constant velocity carburetor; fits Big Twin 1990-2006, Sportster 1988-2006; rubber; replaces OEM HD 27002-89; gross weight: 10 g

57-099

O-Ring; for Oil pump cover; fits Sportster 1991-2020; rubber; ID x OD: 41.8 x 45.4 mm, 1.8 mm thick; replaces OEM HD 26434-91; gross weight: 10 g

57-110

Oil seal by James Gaskets; for Shifter shaft / Cover; fits Big Twin 4-speed late 1979-1986; Dome top transmission; steel / rubber; replaces OEM HD 12010; gross weight: 10 g

57-124

Oil seal; for Cam shaft / Gear cover; fits Sportster 1971-2003, Buell →2007; steel / rubber; replaces OEM HD 11124; gross weight: 70 g

57-137

Oil seal by James Gaskets; for Oil pump drive shaft / Oil pump plate; fits Sportster 1983-1990; steel / rubber; replaces OEM HD 12036A; gross weight: 10 g

57-149

Oil seal by James Gaskets; for Main shaft; fits Sportster late 1984-1990; steel / rubber; replaces OEM HD 12049; gross weight: 10 g

57-168

Oil seal by James Gaskets; for Sprocket shaft / Crankcases; fits Sportster 1977-2003; steel / rubber; replaces OEM HD 35151-74; gross weight: 10 g

57-169

Oil seal by James Gaskets; for Shifter shaft; fits Sportster late 1986-2005, Dyna 2006-2013, Softail 2007-2013, Touring 2007-2013, Buell 1997-2006; clutch release shaft FXST 1986, FXR and FLT 1984-1986; steel / rubber; replaces OEM HD 37101-84B; gross weight: 10 g

57-415

Gasket »curved outline« by James Gaskets; for Cylinder base; fits Sportster 1986-2008 (exc. XL 1200 N 2007-2008), Big Twin 1984-1998, Softail 1999; paper; replaces OEM HD 16774-86, and 16777-83; gross weight: 10 g

57-489

Gasket by James Gaskets; for Gear cover; fits Sportster 1991-2020; paper; replaces OEM HD 25263-90, and 25263-90D; gross weight: 10 g

57-522

Gasket by James Gaskets; for Oil pump body / Crankcases; fits Sportster 1991-2020; paper; replaces OEM HD 26495-89B; gross weight: 10 g

57-523

Gasket by James Gaskets; for Breather valve; fits Sportster 1991-2003, Big Twin 1993-1999; rubber; replaces OEM HD 26856-89; gross weight: 1 g

57-530

Seal ring; for Manifold flange / Cylinder head; fits Big Twin 1990-2016 (Softail →2017), Sportster 1986-2020; rubber; inner Ø: 45.50 mm; replaces OEM HD 26995-86B, and 26995-86C; gross weight: 10 g

57-561

Gasket by James Gaskets; for Air cleaner / Butterfly carburetor / Induction body; fits Big Twin US models 1990-1998 (Softail →1999), Big Twin HDI models 1990-1994, Sportster US models 1988-2003, Sportster Swiss models 1995-1996, Buell 1996-2002; paper; replaces OEM HD 29059-88; gross weight: 10 g

57-586

Gasket by James Gaskets; for Starter motor; fits Sportster 1981-2020; paper; replaces OEM HD 31488-81; gross weight: 10 g

57-590

Gasket by James Gaskets; for Timer cover; fits Shovelhead 1979-1984, Evo Big Twin 1984-1996, Sportster 1979-1996; paper; replaces OEM HD 32591-80; gross weight: 5 g

57-605

Gasket by James Gaskets; for Stud / Footpeg mounts; fits Sportster 1977-1990; between engine case and outer primary cover on footpeg boss; paper; replaces OEM HD 34624-77; gross weight: 1 g

57-667

Gasket by James Gaskets; for Outer primary chain guard; fits Sportster 1991-2003; paper; replaces OEM HD 34955-89; gross weight: 10 g

57-687

Seal washer by James Gaskets; for external oil filters Big Twins 1949-1965; primary oil level control Sportster 1971-1976; rocker cover screws Big Twin 1984-1998 (Softail →1999), Sportster 1986-2008, and Buell 1995-2008; fiber; ID x OD: 6 x 16 mm, 1 mm thick; replaces OEM HD 63858-49; gross weight: 1 g

57-726

Gasket by James Gaskets; for Rocker cover; fits Sportster 1991-2003; rubber; position: outer / bottom; replaces OEM HD 17353-89; gross weight: 10 g

57-728

Gasket by James Gaskets; for Rocker cover; fits Sportster 1991-2003; rubber; position: top / outer; replaces OEM HD 17354-89; gross weight: 10 g

57-736

Gasket by James Gaskets; for Pushrod covers; fits Sportster 1991-2003; rubber; position: bottom; replaces OEM HD 17944-89; gross weight: 2 g
